2001 Yamaha WR250F (WR250FN) Intake Diagram

← All diagrams

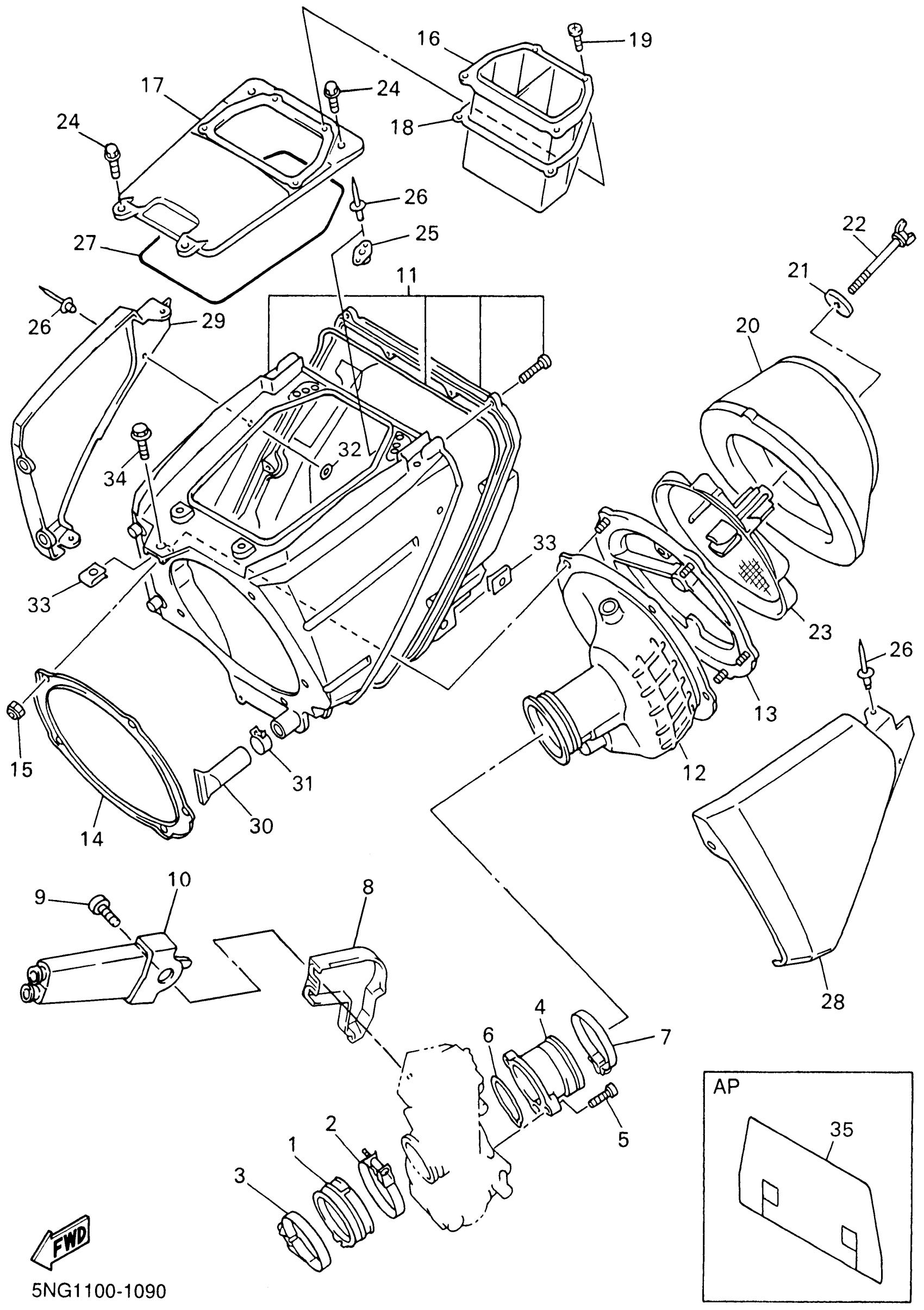

Find the part on the Intake diagram for your 2001 Yamaha WR250F (WR250FN), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2001 Yamaha WR250F (WR250FN) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 3

5NL-13597-10-00

1
Out of stock

2

HOSE CLAMP ASSY

90450-57010-00

1
Out of stock

3

HOSE CLAMP ASSY

90450-54008-00

1
Out of stock

4

JOINT, AIR FILTER 1

5JG-1440F-01-00

1
Out of stock

5

BOLT,SOCKET

91317-05014-00

1

$6.69

In stock

6

O-RING

4FN-14561-00-00

1
Out of stock

7

HOSE CLAMP ASSY

90450-61002-00

1

$15.45

In stock

8

COVER 1

5JG-14293-01-00

—
Out of stock

9

BOLT

5JG-14428-00-00

1
Out of stock

10

CAP

5NG-14169-00-00

1
Out of stock

11

AIR CLEANER CASE ASSY

5JG-14401-00-00

1
Out of stock

12

JOINT, AIR CLEANER 1

5JG-14453-00-00

1
Out of stock

13

HOLDER,GUIDE

3JD-14459-01-00

1
Out of stock

14

PLATE

5MV-14477-00-00

1
Out of stock

15

NUT, U

95617-05100-00

1

$6.68

In stock

16

DUCT

5BF-14437-00-00

1
Out of stock

17

COVER, CLEANER CASE 1

5BF-1441A-10-00

1
Out of stock

18

SEAL

5BF-14452-00-00

—
Out of stock

19

SCREW, TRUSS TAP.

97707-50012-00

—

$3.15

In stock

20

ELEMENT, AIR CLEANER

4XM-14451-01-00

—

$36.43

In stock

21

WASHER (4H7)

90209-06096-00

—
Out of stock

22

BOLT, WING

90122-06005-00

—

$10.05

In stock

23

GUIDE

5BE-14458-10-00

—
Out of stock

24

—

$2.52

In stock

25

STAY 1

5BF-14493-00-00

1
Out of stock

26

RIVET (813)

90267-32070-00

—

$2.25

In stock

27

SEAL

51Y-14462-00-00

—

$11.61

In stock

28

COVER, CLEANER CASE 1

5BE-1441A-10-00

1
Out of stock

29

COVER, CLEANER CASE 2

5BE-1441E-10-00

1
Out of stock

30

PIPE, DRAIN

5BF-1443E-00-00

—

$3.49

In stock

31

CLIP(3TB)

90467-17128-00

—

$6.68

In stock

32

WASHER, PLATE 8077743700

90201-03313-00

—

$5.20

In stock

33

NUT, SPRING (26H)

90183-06023-00

—

$7.45

In stock

34

BOLT, FLANGE(4MY)

95027-06012-00

—

$3.28

In stock

35

COVER 1

5JG-14417-00-00

1
Out of stock
