2018 Yamaha WR250F (WR250FJ) Shift Cam Fork Diagram

← All diagrams

Find the part on the Shift Cam Fork diagram for your 2018 Yamaha WR250F (WR250FJ), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

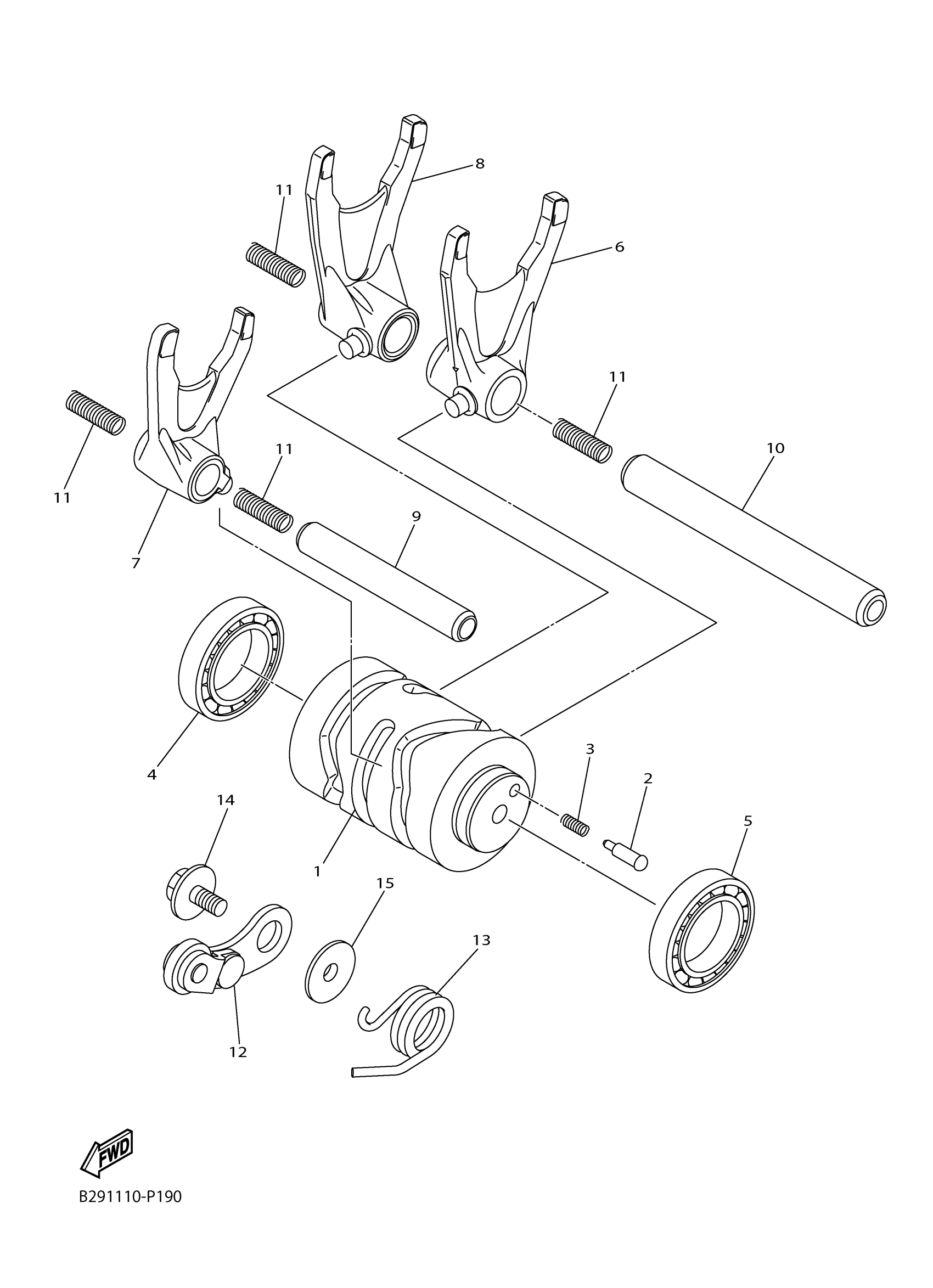

2018 Yamaha WR250F (WR250FJ) Shift Cam Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAM, SHIFT

2GB-18541-00-00

—
Out of stock

2

POINT, NEUTRAL

3D7-18542-00-00

1

$6.02

In stock

3

1

$6.17

In stock

4

BEARING

93306-90409-00

1

$31.67

In stock

5

BEARING

93306-80502-00

1

$32.33

In stock

6

FORK, SHIFT 1

2GB-18511-00-00

1

$75.68

In stock

7

FORK, SHIFT 2

2GB-18512-00-00

—

$84.94

In stock

8

FORK, SHIFT 3

BXB-18513-00-00

1

$85.00

In stock

9

BAR, SHIFT FORK GUIDE 1

1SL-18531-00-00

1

$21.60

In stock

10

BAR, SHIFT FORK GUIDE 2

1SL-18535-00-00

1

$30.82

In stock

11

SPRING, COMPRESSION

90501-064L1-00

1

$1.23

In stock

12

STOPPER LEVER ASSY

2GB-18140-10-00

1

$29.46

In stock

13

SPRING, TORSION

90508-26087-00

1
Out of stock

14

SCREW, WITH WASHER

90159-06028-00

1

$6.26

In stock

15

SPACER

33D-18175-00-00

—

$12.66

In stock
