2017 Yamaha WR250F (WR250FH) Shift Shaft Diagram

← All diagrams

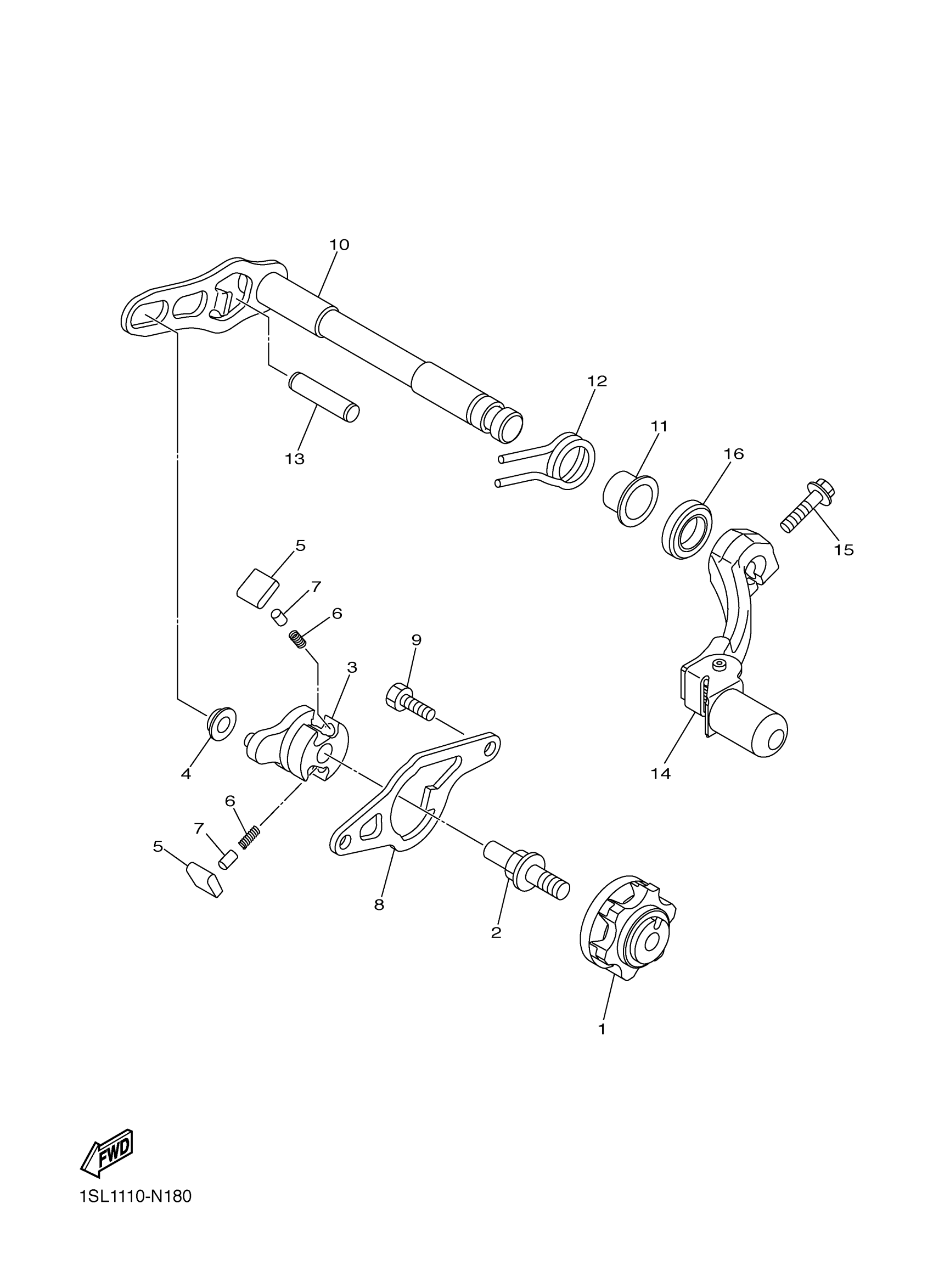

Find the part on the Shift Shaft diagram for your 2017 Yamaha WR250F (WR250FH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha WR250F (WR250FH) Shift Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEGMENT

2GB-18185-00-00

1

$24.54

In stock

2

PIN, SHIFT

3XJ-18173-10-00

1
Out of stock

3

LEVER, SHIFT 2

1SL-18122-10-00

1

$63.92

In stock

4

ROLLER, SHIFT LEVER

3XJ-18178-00-00

1
Out of stock

5

PAWL, SHIFTER

3XJ-18182-00-00

1
Out of stock

6

SPRING, COMPRESSION(3XJ)

90501-052G5-00

1
Out of stock

7

PIN, PAWL

3XJ-18184-00-00

1
Out of stock

8

GUIDE, SHIFT

1SL-18172-00-00

1

$13.69

In stock

9

BOLT

90101-06042-00

1

$4.60

In stock

10

SHIFT SHAFT ASSY

2GB-18101-00-00

—
Out of stock

11

COLLAR

90387-14020-00

1

$6.02

In stock

12

SPRING, TORSION

90508-29023-00

1

$3.97

In stock

13

PIN, DOWEL

93608-33002-00

1

$11.91

In stock

14

SHIFT PEDAL ASSY

1SM-18110-00-00

1
Out of stock

15

BOLT, WITH WASHER (697)

90119-06M12-00

1

$3.84

In stock

16

OIL SEAL (14X24X6-256)

93109-14010-00

—

$10.66

In stock
