2015 Yamaha WR250F (WR250FF) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2015 Yamaha WR250F (WR250FF), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

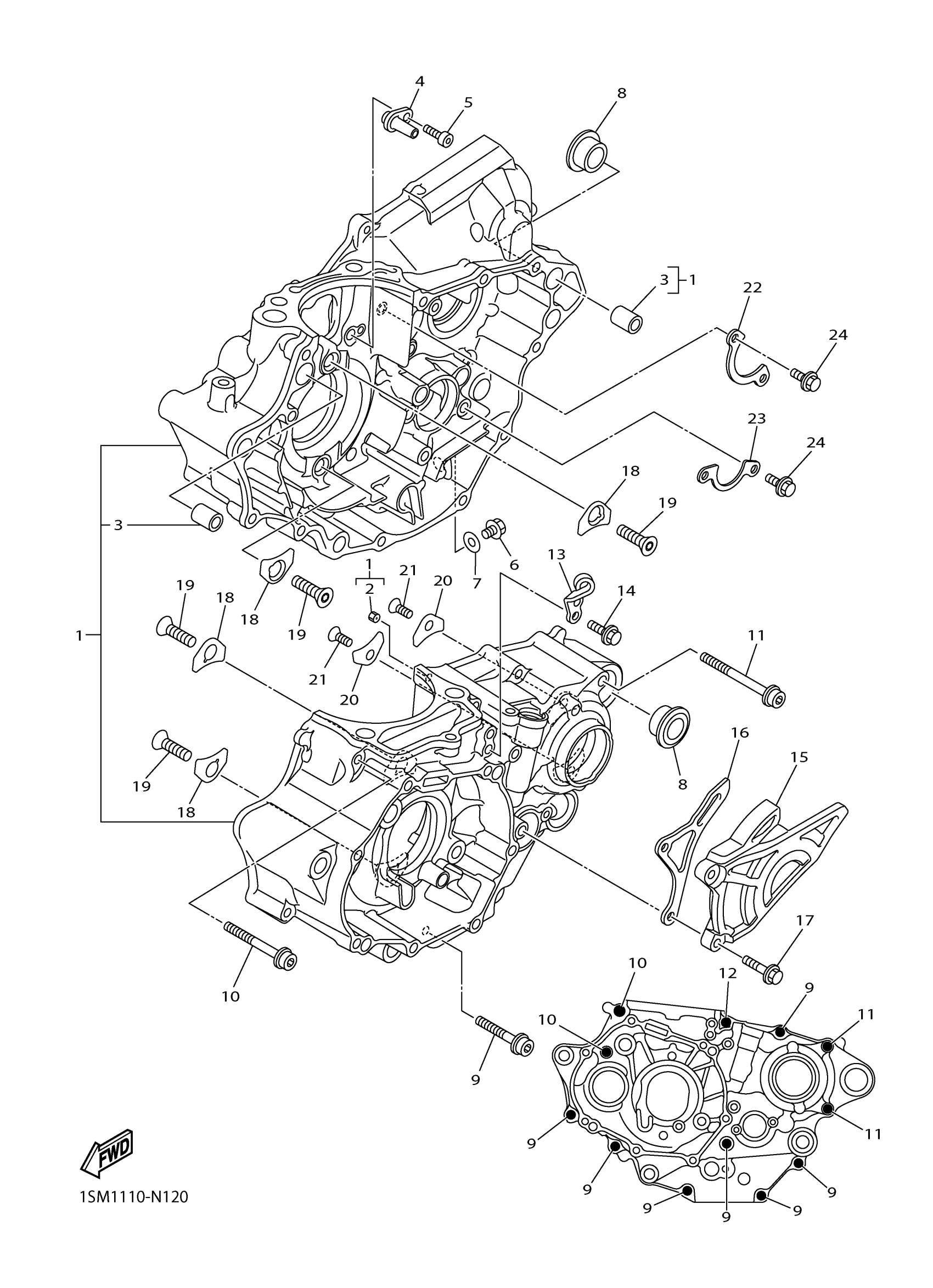

2015 Yamaha WR250F (WR250FF) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

1SM-15100-29-00

1
Out of stock

2

NOZZLE 1

1SM-15138-00-00

1
Out of stock

3

PIN, DOWEL

99530-14016-00

1
Out of stock

4

NOZZLE 3

1SM-15155-00-00

1
Out of stock

5

BOLT(47X)

91312-05012-00

1
Out of stock

6

BOLT, FLANGE

95022-10016-00

1
Out of stock

7

GASKET

90430-10188-00

1
Out of stock

8

COLLAR

90387-17015-00

1
Out of stock

9

BOLT, HEXAGON SOCKET HEAD

90110-06391-00

1
Out of stock

10

BOLT, HEXAGON SOCKET HEAD

90110-06363-00

1
Out of stock

11

BOLT, HEXAGON SOCKET HEAD

90110-06392-00

1
Out of stock

12

BOLT, SOCKET

91317-06075-00

1
Out of stock

13

HOLDER, CLUTCH CABLE

1SL-15441-00-00

1
Out of stock

14

BOLT, FLANGE

90105-06100-00

1
Out of stock

15

COVER, CRANKCASE 2

1SL-15421-00-00

1
Out of stock

16

GUIDE, CHAIN

1SL-17466-00-00

—
Out of stock

17

BOLT, FLANGE

90105-06189-00

—
Out of stock

18

PLATE, BEARING COVER

18P-15383-00-00

—
Out of stock

19

SCREW, COUNTERSUNK

90151-08008-00

—
Out of stock

20

PLATE, BEARING COVER

4JT-15381-01-00

—
Out of stock

21

SCREW, COUNTERSUNK

90151-06052-00

—
Out of stock

22

PLATE, BEARING COVER

1SM-15388-00-00

—
Out of stock

23

PLATE, STOPPER 2

1SL-18562-00-00

—
Out of stock

24

BOLT, FLANGE

95022-06012-00

—
Out of stock
