2013 Yamaha WR250F (WR250FD) Frame Diagram

← All diagrams

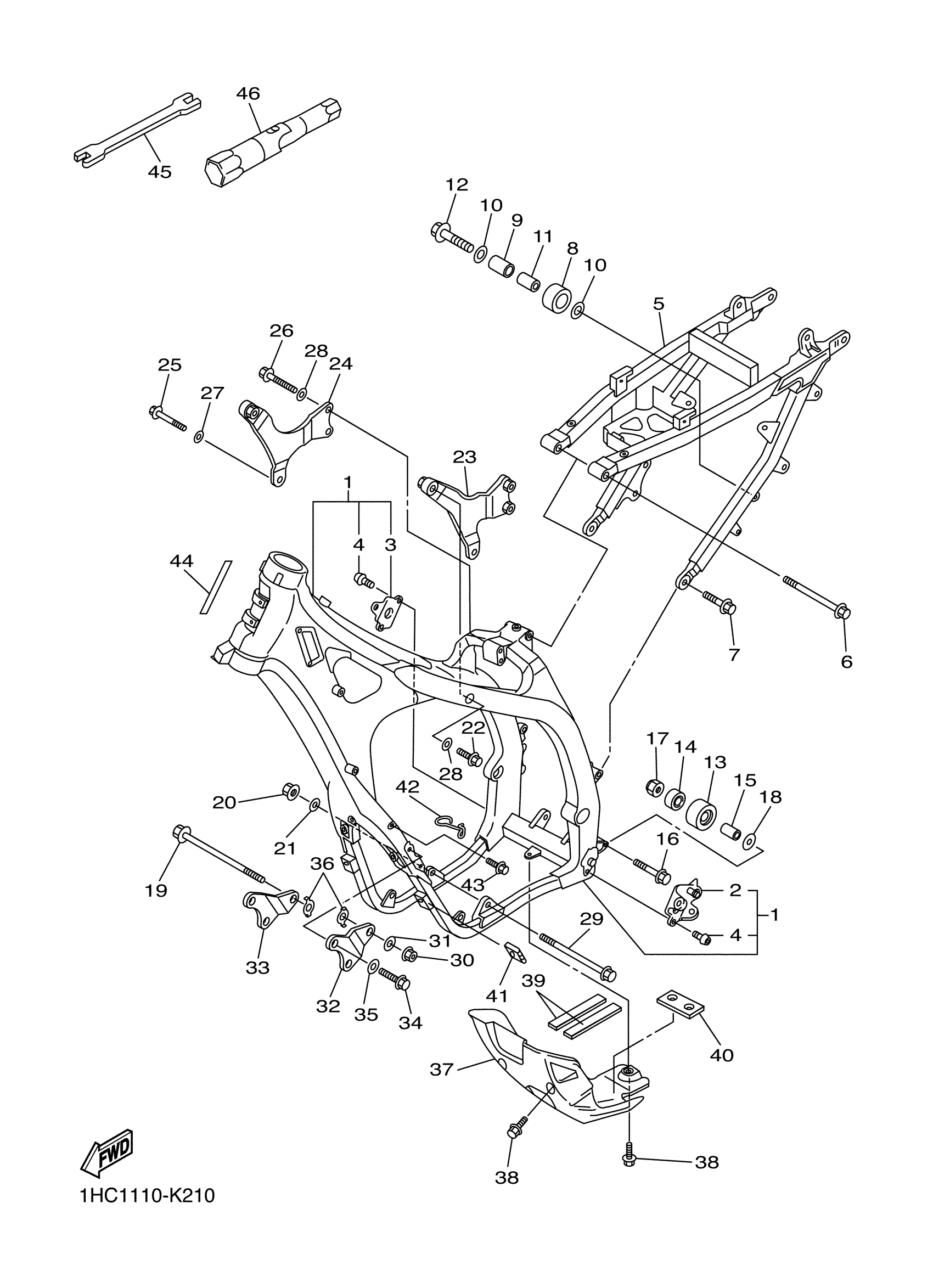

Find the part on the Frame diagram for your 2013 Yamaha WR250F (WR250FD), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Yamaha WR250F (WR250FD) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FRAME COMP.

5UM-21101-E0-00

1
Out of stock

2

BRACKET, FOOTREST

5UM-21447-E0-00

—
Out of stock

3

BRACKET, FOOTREST

1C3-21448-10-00

1
Out of stock

4

SCREW

90149-10033-00

1
Out of stock

5

REAR FRAME COMP.

5UM-21190-E0-00

—
Out of stock

6

BOLT, FLANGE

90105-08156-00

1
Out of stock

7

BOLT, WASHER BASED(36Y)

90105-08307-00

1
Out of stock

8

TENSIONER

30X-22178-00-00

1
Out of stock

9

BUSH

4V4-22184-00-00

1
Out of stock

10

WASHER, PLATE

90201-08045-00

1
Out of stock

11

COLLAR

90387-08041-00

1
Out of stock

12

BOLT, FLANGE(4KG)

95024-08040-00

1
Out of stock

13

TENSIONER

3JD-22178-20-00

1
Out of stock

14

BEARING (3X3)

93300-60804-00

1
Out of stock

15

COLLAR(1NL)

90387-086N4-00

1
Out of stock

16

BOLT, FLANGE

90105-08133-00

—
Out of stock

17

NUT, U

95617-08100-00

—
Out of stock

18

WASHER, PLATE

90201-08043-00

—
Out of stock

19

BOLT, FLANGE

90105-10174-00

—
Out of stock

20

NUT(4KG)

90179-10658-00

—
Out of stock

21

WASHER, PLATE

90201-10045-00

—
Out of stock

22

BOLT, FLANGE

90105-08150-00

—
Out of stock

23

BRACKET, REAR UPPER 1

5UM-21425-E0-00

—
Out of stock

24

BRACKET, REAR UPPER 2

5UM-21426-E0-00

—
Out of stock

25

BOLT, FLANGE

90105-10191-00

—
Out of stock

26

BOLT, FLANGE

90105-08147-00

—
Out of stock

27

WASHER, PLATE

90201-10045-00

—
Out of stock

28

. WASHER

92902-08200-00

1
Out of stock

29

BOLT, FLANGE

90105-10176-00

—
Out of stock

30

NUT(4KG)

90179-10658-00

—
Out of stock

31

WASHER, PLATE

90201-10045-00

—
Out of stock

32

BRACKET, FRONT LOWER 1

5UM-21417-E0-00

—
Out of stock

33

BRACKET, FRONT LOWER 2

5UM-21418-E0-00

—
Out of stock

34

BOLT, FLANGE

90105-08143-00

—
Out of stock

35

. WASHER

92902-08200-00

1
Out of stock

36

PLATE, PATCH

5XC-21456-90-00

—
Out of stock

37

GUARD, ENGINE 1

5UM-2147A-E0-00

—
Out of stock

38

BOLT, WITH WASHER

90119-06166-00

—
Out of stock

39

DAMPER 2

5UM-21486-E0-00

—
Out of stock

40

DAMPER, RUBBER 1

5UM-21485-E1-00

—
Out of stock

41

PLATE, PATCH

5UM-21455-E0-00

—
Out of stock

42

GUIDE, CABLE

5XC-21288-90-00

—
Out of stock

43

BOLT, FLANGE

90105-05014-00

—
Out of stock

44

SEAL

5UM-21268-E0-00

—
Out of stock

45

WRENCH, HEXAGON

5ET-28166-10-00

—
Out of stock

46

BOX, SPARK PLUG

5TA-2814F-00-00

—
Out of stock
