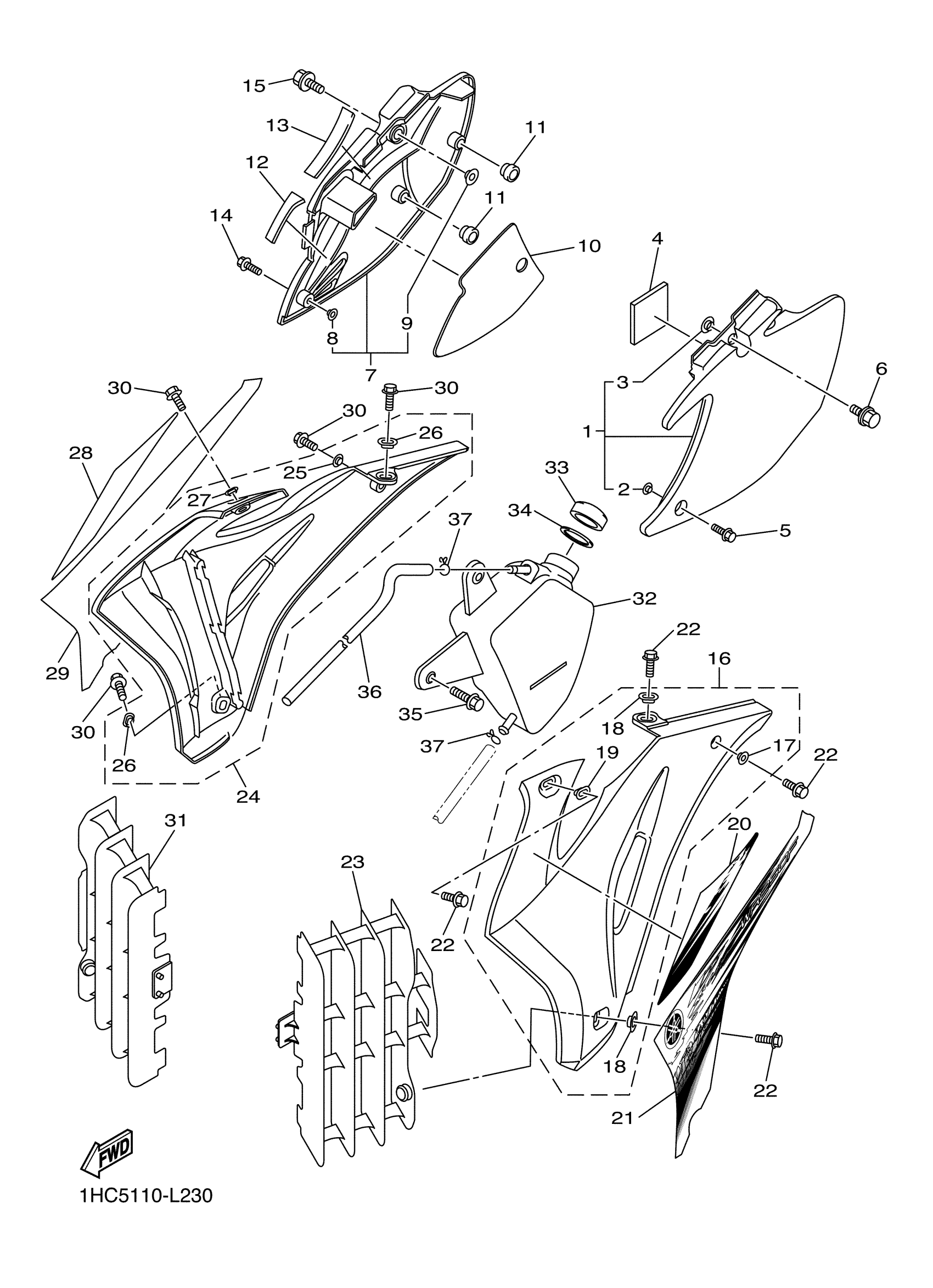

Yamaha WR250FB (WR250F) 1HC5 2012 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

5UM-21711-E0-00

$31.05

2

COLLAR

90387-06009-00

$7.37

3

COLLAR

5BE-21749-00-00

$4.48

4

DAMPER

5UM-21717-E0-00

$4.70

5

BOLT, FLANGE

90105-06103-00

$4.02

6

BOLT, WITH WASHER

90119-08095-00

$5.81

7

COVER, SIDE 2

5UM-21721-E0-00

Unavailable

8

COLLAR

90387-06009-00

$7.37

9

COLLAR

5BE-21749-00-00

$4.48

10

INSULATOR, SIDE COVER

5UM-2174A-E0-00

Unavailable

11

GROMMET

5XC-21719-90-00

$6.04

12

INSULATOR 3

5UM-2172S-E0-00

$3.32

13

INSULATOR 4

5UM-2173S-E0-00

$6.52

14

BOLT, FLANGE

90105-06103-00

$4.02

15

BOLT, WITH WASHER

90119-08095-00

$5.81

16

SIDE COVER ASSY 3

5UM-21730-E0-00

Unavailable

17

COLLAR

90387-06009-00

$7.37

18

COLLAR

5TA-21749-00-00

Unavailable

19

COLLAR

5XC-21749-90-00

Unavailable

20

GRAPHIC, 1

1HC-2173E-10-00

Unavailable

21

GRAPHIC, 3

1HC-2174G-10-00

Unavailable

22

BOLT, FLANGE

90105-06064-00

Unavailable

23

PANEL 1

2S2-2172A-70-00

Unavailable

24

SIDE COVER ASSY 4 (DEEP PURPLISH BLUE SOLID E)

5UM-21740-E0-00

Unavailable

25

COLLAR

90387-06009-00

$7.37

26

COLLAR

5TA-21749-00-00

Unavailable

27

COLLAR

5XC-21749-90-00

Unavailable

28

GRAPHIC, 2

1HC-2173F-10-00

Unavailable

29

GRAPHIC, 4

1HC-2174H-10-00

Unavailable

30

BOLT, FLANGE

90105-06064-00

Unavailable

31

PANEL 1

2S2-2172A-80-00

Unavailable

32

TANK ASSY

5UM-21860-E0-00

Unavailable

33

CAP

26H-21875-00-00

Unavailable

34

GASKET

26H-21874-00-00

Unavailable

35

BOLT, WITH WASHER

90119-06146-00

Unavailable

36

HOSE 6

5UM-1244J-E0-00

Unavailable

37

CLIP

90467-090A2-00

Unavailable
