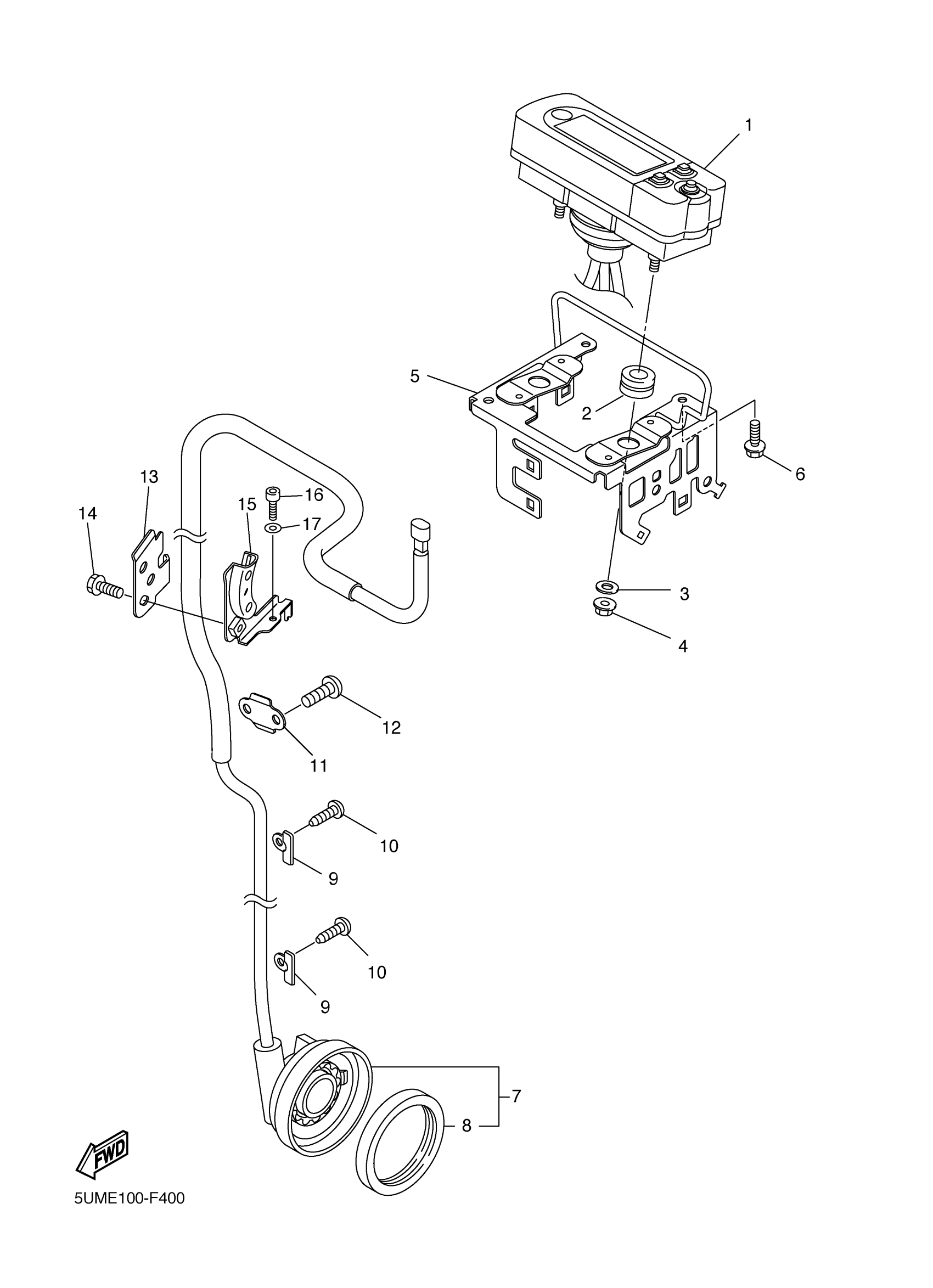

Yamaha WR250FA (WR250F) 1HC1 2011 METER Diagram

#

Description
Price

1

SPEEDOMETER ASSY (MILE)

5TJ-83500-E0-00

Unavailable

2

GROMMET

90480-14012-00

Unavailable

3

WASHER, PLATE

90201-05021-00

$1.54

4

NUT, FLANGE

95702-05500-00

$0.73

5

BRACKET, METER

5UM-83519-E0-00

Unavailable

6

BOLT, FLANGE

90105-06110-00

$5.84

7

SENSOR, SPEED

5TJ-83755-C3-00

$337.52

8

SEAL,OIL

93105-47007-00

$12.73

9

PLATE 2

5TJ-8375F-C0-00

$8.68

10

SCREW, TAPPING

97702-40010-00

$2.30

11

PLATE 1

5TJ-8375E-C0-00

$6.62

12

BOLT, BUTTON HEAD

92012-05008-00

$2.19

13

CLAMP

5UM-83595-E0-00

Unavailable

14

BOLT, FLANGE

90105-06105-00

$5.90

15

BRACKET 1

5UM-23591-E0-00

Unavailable

16

BOLT, BUTTON HEAD

92012-06012-00

Unavailable

17

WASHER, PLAIN (646)

92990-06600-00

Unavailable
