2011 Yamaha WR250F (WR250FA) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 2011 Yamaha WR250F (WR250FA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

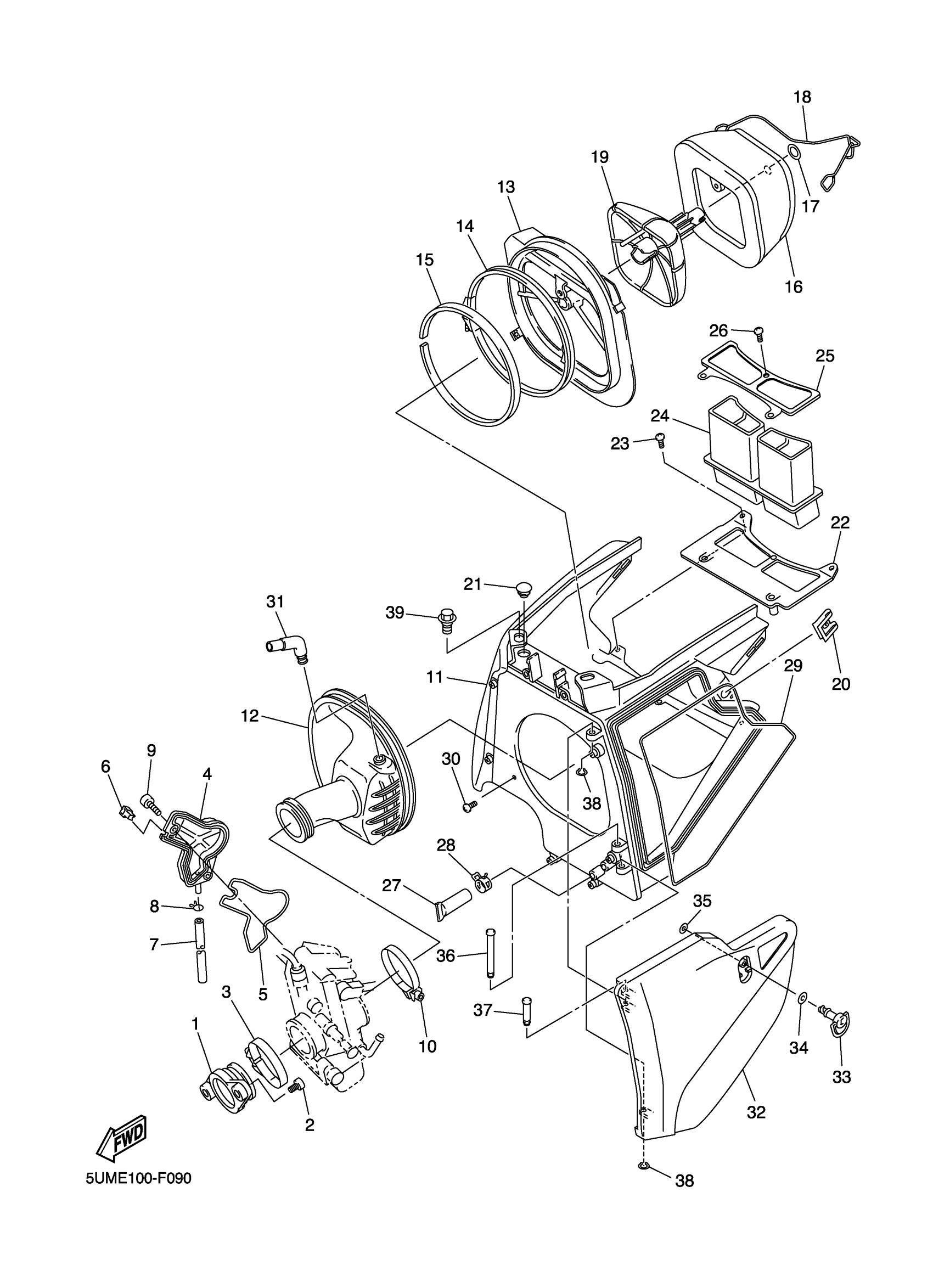

2011 Yamaha WR250F (WR250FA) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, CARBURETOR 3

5XC-13597-30-00

1
Out of stock

2

BOLT,SOCKET

91317-06025-00

1

$2.05

In stock

3

HOSE CLAMP ASSY

90450-57010-00

1
Out of stock

4

COVER 1

5TA-14293-00-00

1

$37.21

In stock

5

GASKET

5TA-14227-00-00

1

$27.53

In stock

6

SEAL

5TA-14239-00-00

1

$16.57

In stock

7

HOSE

5TA-14987-00-00

1

$12.06

In stock

8

CLIP

3TJ-14137-40-00

1

$6.43

In stock

9

BOLT, HEXAGON SOCKET HEAD

90110-05038-00

1

$6.28

In stock

10

HOSE CLAMP ASSY

90450-61002-00

1

$15.45

In stock

11

AIR CLEANER CASE ASSY

5UM-14401-E0-00

—
Out of stock

12

JOINT, AIR CLEANER 1

5UM-14453-E0-00

1
Out of stock

13

HOLDER, GUIDE

5TJ-14459-01-00

1
Out of stock

14

BAND

5NY-14455-20-00

1

$34.03

In stock

15

SPACER

5NY-14442-00-00

1

$20.42

In stock

16

ELEMENT, AIR CLEANER

5UM-14451-E1-00

—
Out of stock

17

WASHER

5TJ-14475-00-00

—
Out of stock

18

BINDER 1

5UM-1441G-E0-00

—
Out of stock

19

GUIDE

5TJ-14458-00-00

—
Out of stock

20

PLATE, SPRING

4XV-2177L-01-00

—

$6.20

In stock

21

PLUG 288833190000

90338-07043-00

—

$5.35

In stock

22

DUCT

5UM-14437-E0-00

—
Out of stock

23

SCREW, PAN HEAD TAPPING (AK5)

97780-50116-00

—
Out of stock

24

DUCT

5UM-1443A-E0-00

—
Out of stock

25

COVER 1

5UM-14417-E0-00

—
Out of stock

26

SCREW, PAN HEAD TAPPING (AK5)

97780-50116-00

—
Out of stock

27

PIPE, DRAIN

5BF-1443E-00-00

—

$3.49

In stock

28

CLIP(3TB)

90467-17128-00

—

$6.68

In stock

29

SEAL

51Y-14462-00-00

—

$11.61

In stock

30

SCREW, PAN HEAD TAPPING (AK5)

97780-50116-00

—
Out of stock

31

PIPE

5TJ-14419-00-00

—

$7.57

In stock

32

COVER, CLEANER CASE 1

5UM-1441A-E0-00

—
Out of stock

33

HEAD

3FV-28386-00-00

—

$22.96

In stock

34

WASHER, SPECIAL 1

2TK-21757-00-00

—

$1.66

In stock

35

WASHER, SPECIAL 1

5TJ-21757-00-00

—

$6.43

In stock

36

PIN

90249-05005-00

—

$15.58

In stock

37

PIN

90249-05004-00

—
Out of stock

38

CIRCLIP (EU0)

99080-04600-00

1

$1.67

In stock

39

BOLT

90109-06245-00

—

$4.75

In stock
