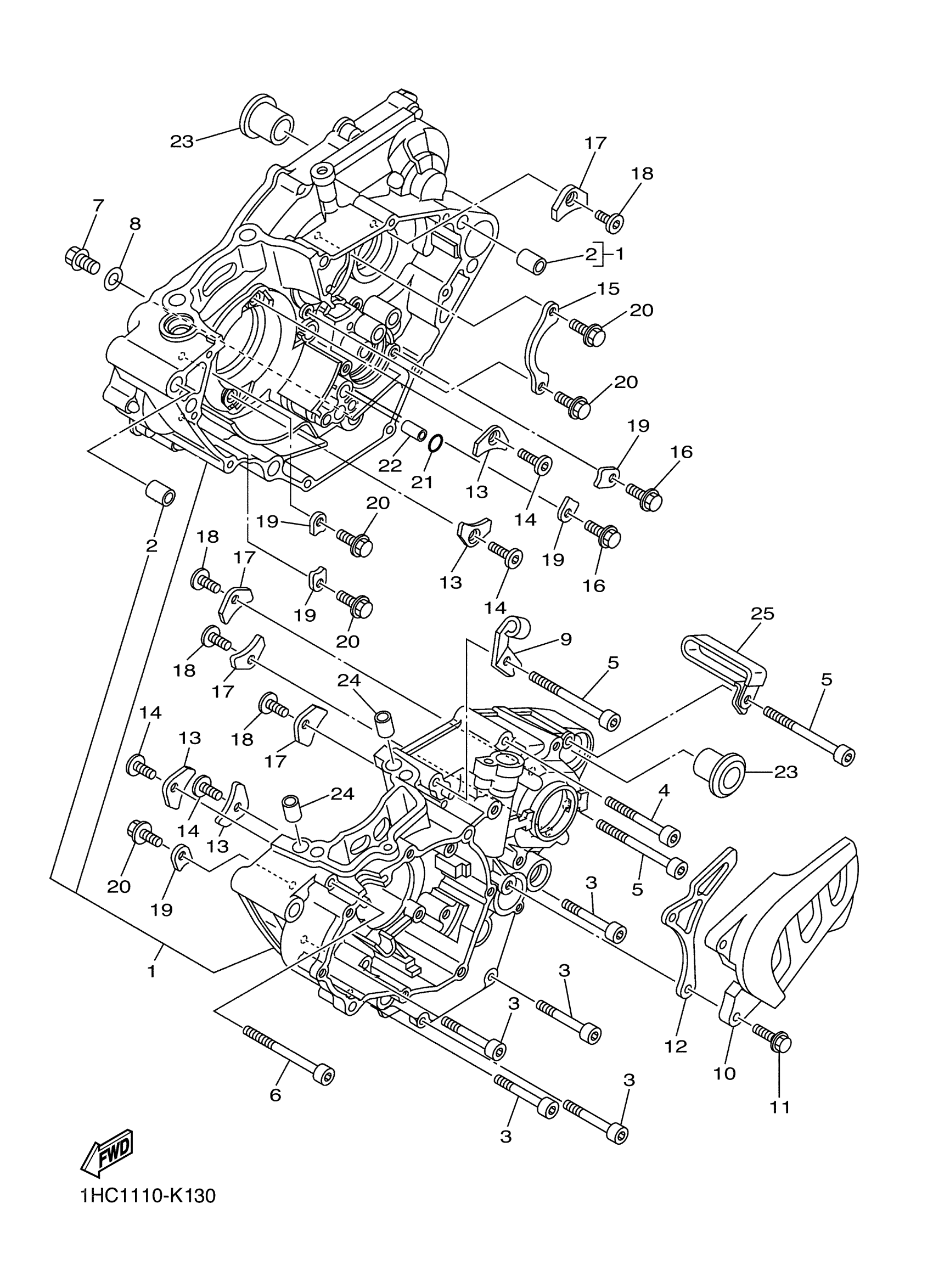

Find the part on the Crankcase diagram for your 2011 Yamaha WR250F (WR250FA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Yamaha WR250F (WR250FA) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

5UM-15100-28-YX

—
Out of stock

2

PIN, DOWEL(4XL)

93612-16254-00

1

$4.37

In stock

3

BOLT

91312-06045-00

1

$3.37

In stock

4

TORNILLO ALLEN

91312-06055-00

1

$5.32

In stock

5

BOLT

91312-06070-00

1

$3.46

In stock

6

BOLT,SOCKET HEAD

91311-06100-00

1
Out of stock

7

BOLT, FLANGE

95022-10016-00

1

$6.28

In stock

8

GASKET

90430-10188-00

1

$5.98

In stock

9

HOLDER, CLUTCH CABLE

5NL-15441-01-00

1
Out of stock

10

COVER, CRANKCASE 2

5BE-15421-30-00

1
Out of stock

11

BOLT, FLANGE

90105-06189-00

1

$6.17

In stock

12

GUIDE, CHAIN

5NL-17466-00-00

1
Out of stock

13

PLATE, BEARING COVER

5BE-15383-01-00

1

$9.09

In stock

14

SCREW, COUNTERSUNK

90151-06044-00

1

$3.56

In stock

15

PLATE, BEARING COVER

5NL-15388-00-00

1

$6.48

In stock

16

BOLT, FLANGE

95022-06012-00

—

$3.00

In stock

17

PLATE, BEARING COVER

4JT-15381-01-00

—
Out of stock

18

SCREW, COUNTERSUNK

90151-06052-00

—

$6.38

In stock

19

PLATE, STOPPER 2

5DH-18562-00-00

—

$6.72

In stock

20

BOLT, FLANGE

95022-06012-00

—

$3.00

In stock

21

O-RING (371)

93210-10197-00

—
Out of stock

22

PIN, DOWEL(3VD)

99530-10114-00

—

$2.23

In stock

23

COLLAR

90387-18007-00

—

$29.10

In stock

24

PIN, DOWEL(2VG)

99530-10116-00

—

$3.37

In stock

25

CLAMP

90465-10013-00

—
Out of stock
