1992 Yamaha WR200R (WR200RD) Crankcase Diagram

← All diagrams

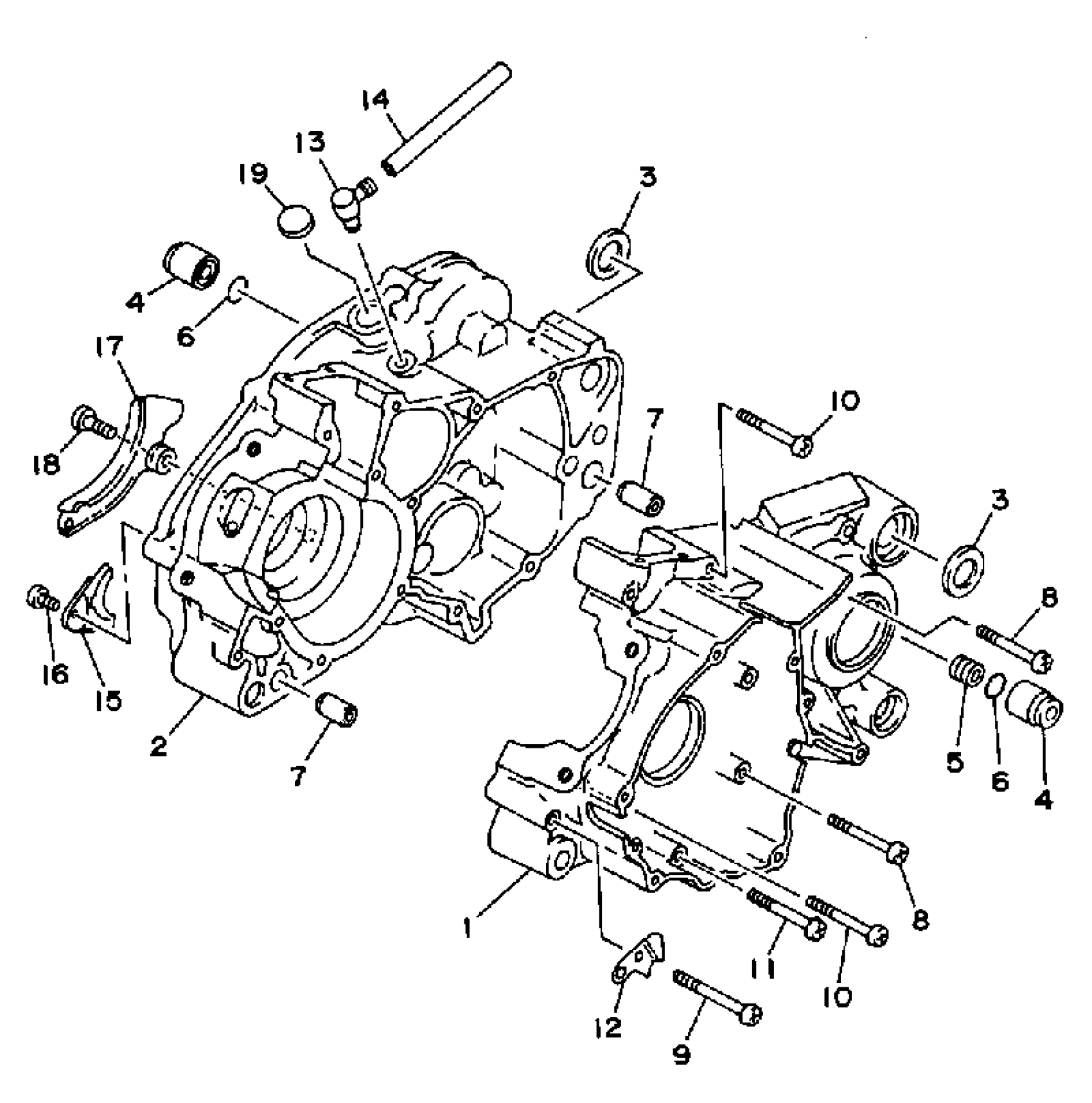

Find the part on the Crankcase diagram for your 1992 Yamaha WR200R (WR200RD), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1992 Yamaha WR200R (WR200RD) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

3XP-15111-01-00

1
Out of stock

2

CRANKCASE 2

3XP-15121-00-00

1
Out of stock

3

WASHER, PLATE

90201-16021-00

1

$7.49

In stock

4

DAMPER

90388-08003-00

1

$16.29

In stock

5

SPACER, ENG MOUNT

3XP-15317-00-00

1
Out of stock

6

O-RING (1J7)

93210-11313-00

1

$6.80

In stock

7

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

8

SCREW, BIND (JH1)

98580-06560-00

—

$6.86

In stock

9

SCREW PAN HEAD

98580-06565-00

—
Out of stock

10

SCREW PAN HEAD

98580-06550-00

1

$6.17

In stock

11

SCREW PAN HEAD

98580-06570-00

1

$17.32

In stock

12

BRACKET

3BN-15199-00-00

—
Out of stock

13

BREATHER

3YJ-15371-00-00

1

$8.28

In stock

14

HOSE(3XP)

90446-07349-00

—
Out of stock

15

HOLDER

37F-15128-00-00

1
Out of stock

16

SCREW, PAN

98507-08010-00

—
Out of stock

17

COVER

2RH-15492-00-00

1
Out of stock

18

SCREW, PAN

98517-06012-00

—

$3.14

In stock

19

PLUG(12Y)

90338-16029-00

—

$6.85

In stock
