1987 Yamaha Wave Jammer (WJ500H) Ventilation Diagram

← All diagrams

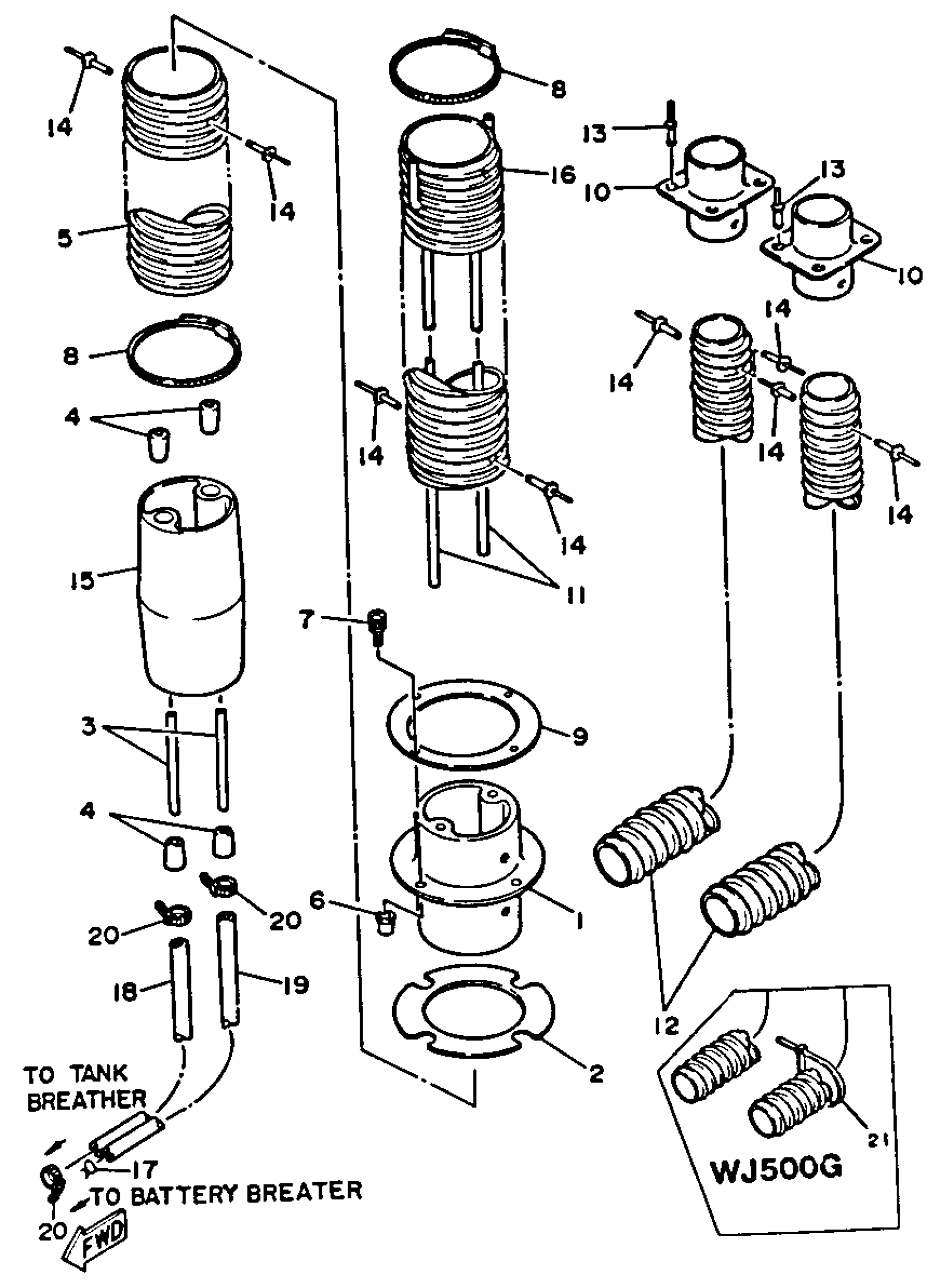

Find the part on the Ventilation diagram for your 1987 Yamaha Wave Jammer (WJ500H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Yamaha Wave Jammer (WJ500H) Ventilation Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BASE, AIR INTAKE

EW3-62127-01-00

1
Out of stock

2

PACKING

EW3-62157-00-00

1
Out of stock

3

PIPE, VENTILATION

EW3-62149-00-00

1
Out of stock

4

CAP

EU0-62155-00-00

1
Out of stock

5

HOSE, FLEXIBLE

90669-13005-00

1
Out of stock

6

NUT(1KT)

90179-05523-00

1

$4.33

In stock

7

SCREW, WITH WASHER

90159-05900-00

1

$2.26

In stock

8

BAND

90601-20008-00

1

$7.38

In stock

8

BAND

90601-20008-00

1

$7.38

In stock

9

PLATE, AIR INTAKE

EW3-62111-00-00

1
Out of stock

10

OUTLET, VENTILATOR

EW3-62139-00-00

1
Out of stock

11

PIPE, VENT 2

EW3-62149-30-00

1
Out of stock

12

PIPE, VENT (90669-14005)

EW3-62149-50-00

1
Out of stock

13

RIVET, BLIND

90267-40006-00

1
Out of stock

14

. RIVET, BLIND

90267-40935-00

1

$1.38

In stock

14

RIVET, BLIND

90267-409U3-00

1
Out of stock

15

BASE, AIR INTAKE

EW3-62127-30-00

1
Out of stock

16

PIPE, VENT 3

EW3-62149-40-00

1
Out of stock

17

CLIP

90467-08M10-00

1
Out of stock

18

HOSE

EW3-67856-30-00

1
Out of stock

19

HOSE

EW3-67856-40-00

1
Out of stock

20

CLAMP

90465-10098-00

1

$2.24

In stock

21

BAND

90601-20008-00

1

$7.38

In stock
