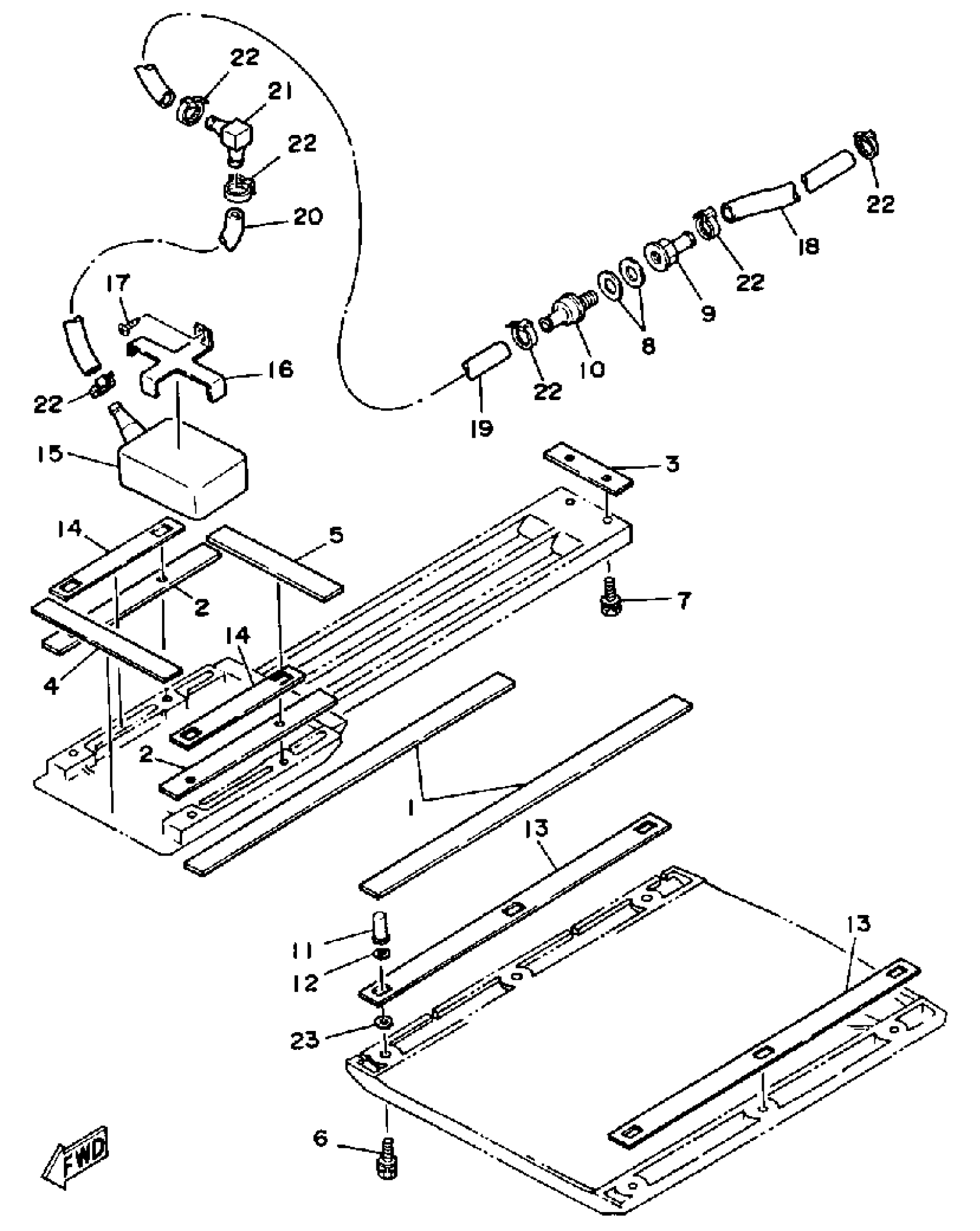

Find the part on the Hull - Deck 2 diagram for your 1989 Yamaha Wave Jammer (WJ500F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Yamaha Wave Jammer (WJ500F) Hull - Deck 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PACKING, 3

EU0-U2284-01-00

1
Out of stock

2

PACKING 4

EU0-U2284-31-00

1
Out of stock

3

PACKING 5

EU0-U2284-41-00

1
Out of stock

4

PACKING 6

EU0-U2284-51-00

1
Out of stock

5

PACKING 7

EU0-U2284-61-00

1
Out of stock

6

BOLT, WITH WASHER

90119-06901-00

1
Out of stock

7

BOLT, WITH WASHER

90119-06900-00

1
Out of stock

8

GASKET

90430-13909-00

1
Out of stock

9

CONNECTION, THRU-HULL 1/4

90604-80759-00

1
Out of stock

10

CONNECTION, THRU-HULL 1/4

90604-80760-00

1
Out of stock

11

NUT

99999-02018-00

1
Out of stock

12

WASHER

90201-09924-00

1
Out of stock

13

PLATE, STOPPER A (A)

EU0-67367-00-00

1
Out of stock

14

PLATE, STOPPER B (B)

EU0-67367-30-00

1
Out of stock

15

STRAINER, BILGE

F4R-6761D-00-00

1
Out of stock

16

BASE

EW3-67618-00-00

1
Out of stock

17

SCREW, PANHEAD (97701-50515-00)

90149-059U1-00

1
Out of stock

18

HOSE

90445-14M02-00

1
Out of stock

19

HOSE

90445-14M03-00

1
Out of stock

20

HOSE (L450)

90445-14M04-00

1
Out of stock

21

JOINT, HOSE

6K8-51162-00-00

1
Out of stock

22

CLAMP

90465-10098-00

1
Out of stock

23

WASHER, PLAIN

92990-08200-00

1
Out of stock
