1990 Yamaha Wave Jammer (WJ500D) Hull - Deck 1 Diagram

← All diagrams

Find the part on the Hull - Deck 1 diagram for your 1990 Yamaha Wave Jammer (WJ500D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

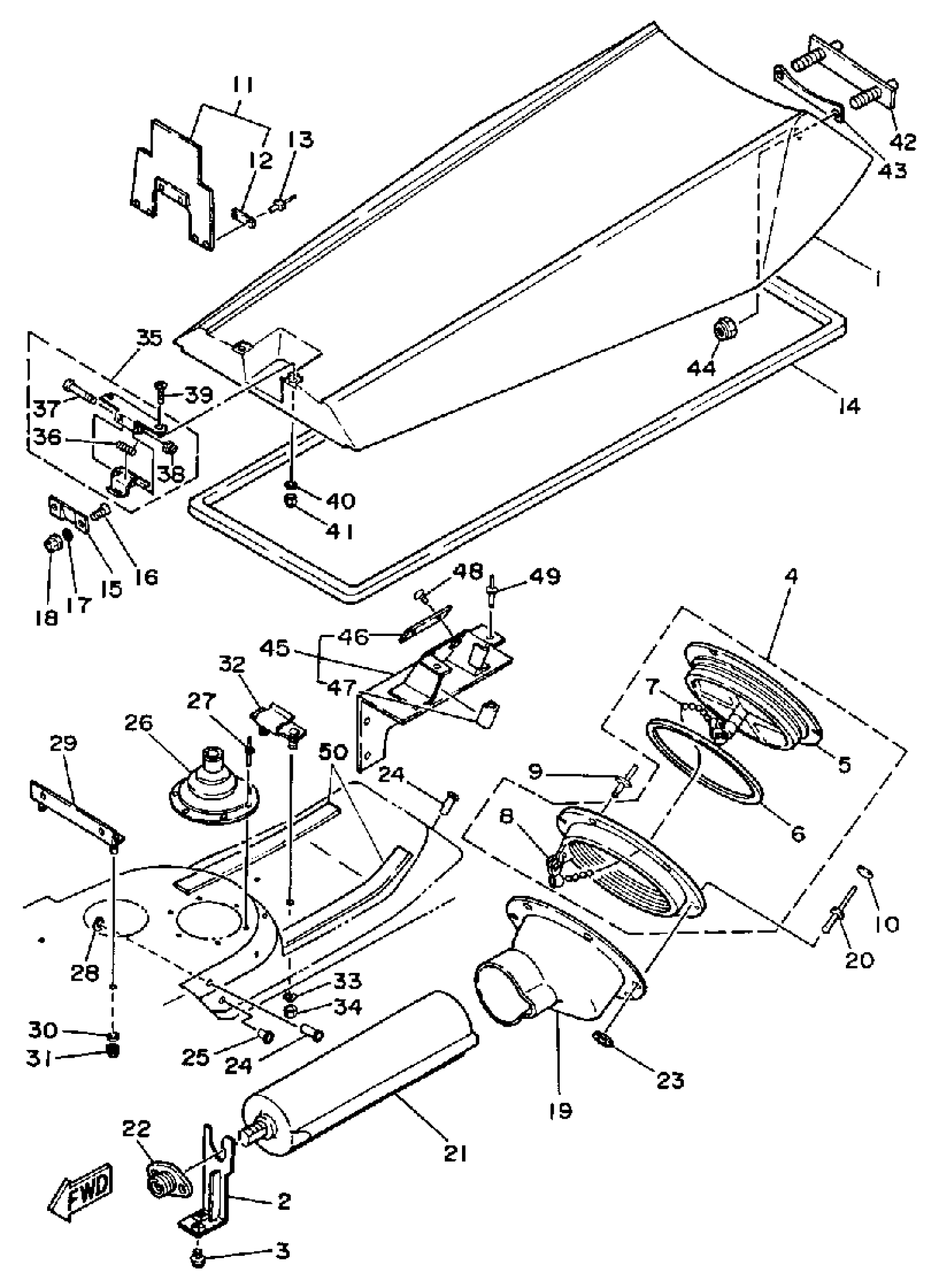

1990 Yamaha Wave Jammer (WJ500D) Hull - Deck 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ENGINE HATCH COMP.

EW3-65160-00-00

1
Out of stock

2

BRACKET

EW3-65937-00-00

1
Out of stock

3

BOLT, WITH WASHER

90119-06908-00

1

$2.77

In stock

4

COVER, INSPECTION

EU0-62721-01-00

1

$116.99

In stock

5

COVER, INSPECTION

EU0-62721-01-00

1

$116.99

In stock

6

. RING

93211-03902-00

1
Out of stock

7

. CHAIN BALL

EU0-67835-30-00

1
Out of stock

8

COUPLING

EU0-67839-00-00

1

$6.46

In stock

9

RIVET, BLIND

90267-40937-00

1

$3.84

In stock

10

PLUG

EW3-62723-00-00

1
Out of stock

11

HOOK, ENGINE HATCH, HATCH COMP

EW3-65190-01-00

1
Out of stock

12

. WASHER, SPECIAL

EW3-65194-00-00

1
Out of stock

13

RIVET, BLIND

90267-48802-00

1

$2.06

In stock

14

PACKING 2

EW3-62664-00-00

1
Out of stock

15

HOOK, HOOD LOCK

EW3-62843-01-00

1
Out of stock

16

SCREW, FLAT HEAD

98780-05020-00

1

$2.22

In stock

17

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

18

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

19

GROMMET

EW3-65984-00-00

1
Out of stock

20

RIVET, BLIND

90267-40937-00

1

$3.84

In stock

21

BOX, FIRE EXTNGSHER

EW3-65983-00-00

1
Out of stock

22

WASHER, DRAIN PLUG

A39-62256-00-29

1

$28.99

In stock

23

YBS66-4 WASHER, PLAIN

92990-04200-00

—

$1.10

In stock

24

NUT, POP

90179-06922-00

1
Out of stock

25

NUT

90179-06524-00

1

$3.23

In stock

26

GROMMET, STEERING

EW3-61221-00-00

1
Out of stock

27

RIVET, BLIND

90267-40006-00

1
Out of stock

28

WASHER

90201-09924-00

1
Out of stock

29

STOPPER, HATCH 1

EW3-65135-00-00

1
Out of stock

30

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

31

NUT, SELF-LOCKING

95720-06300-00

1

$1.85

In stock

32

STOPPER, SEAT

(EW3-63729-00-00)

1
Out of stock

33

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

34

NUT, SELF-LOCKING

95720-06300-00

1

$1.85

In stock

35

HATCH LOCK ASSEMBLY

EW3-62840-00-00

1
Out of stock

36

. SPRING

EW3-62834-00-00

1
Out of stock

37

. SCREW, PAN HEAD

98580-04545-00

1
Out of stock

38

NUT, NYLON (EJ3)

90185-04903-00

1

$2.31

In stock

39

SCREW, FLAT HEAD

98780-05020-00

1

$2.22

In stock

40

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

41

. NUT, M5 X 08 NYLON LOCK

95780-05300-00

1
Out of stock

42

STOPPER, HATCH 2

EW3-65136-00-00

1
Out of stock

43

PLATE HOOD

EW3-65148-00-00

1
Out of stock

44

NUT, FLANGE

95780-06300-00

1

$7.69

In stock

45

BRACKET E/L BOX

EW3-68156-01-00

1
Out of stock

46

. MAT

EW3-67593-40-00

1
Out of stock

47

TRIM

90667-92006-00

1
Out of stock

48

SCREW, FLAT HEAD

98780-06016-00

1

$5.38

In stock

49

RIVET, BLIND

90267-48934-00

1
Out of stock

50

TRIM 13

90656-39025-00

1
Out of stock
