1997 Yamaha Wave Blaster II (WB760V) Hull Deck Diagram

← All diagrams

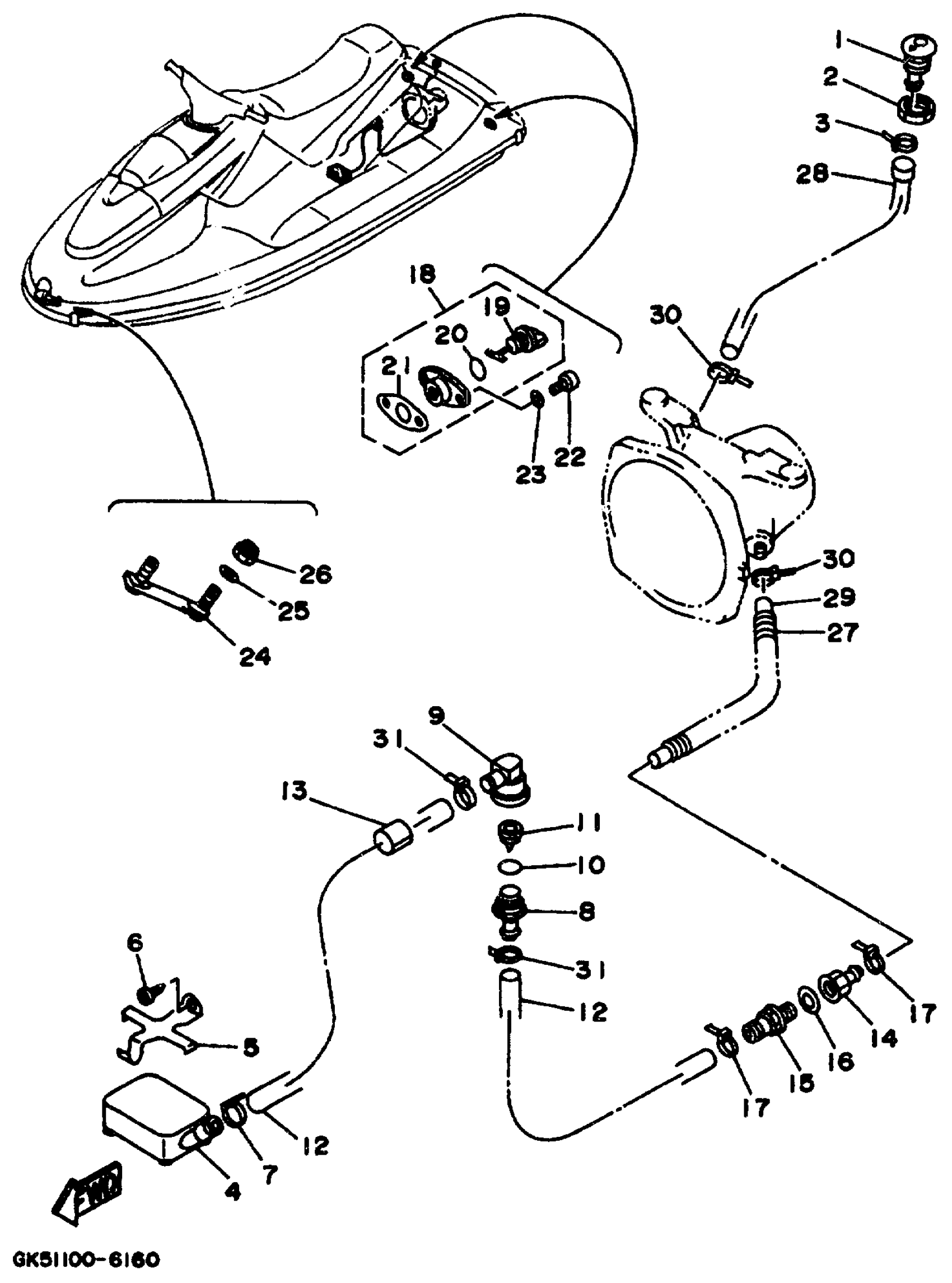

Find the part on the Hull Deck diagram for your 1997 Yamaha Wave Blaster II (WB760V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Yamaha Wave Blaster II (WB760V) Hull Deck Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPOUT

FN8-6269B-00-00

1

$17.81

In stock

2

NUT

EU0-61652-00-00

1

$12.27

In stock

3

CLAMP (6E5)

90465-13M11-00

1

$5.72

In stock

4

STRAINER, BILGE

GD0-6761D-00-00

1

$58.99

In stock

5

BASE, STRAINER BLIGE

EW2-67618-00-00

1

$37.39

In stock

6

1

$4.15

In stock

7

CLAMP (6E5)

90465-13M11-00

1

$5.72

In stock

8

JOINT, HOSE

68N-5112T-00-00

1

$44.09

In stock

9

JOINT, HOSE 2

63M-51165-00-00

1
Out of stock

10

O-RING

93210-22ME5-00

1

$4.23

In stock

11

VALVE 1

63M-5316M-00-00

1

$25.49

In stock

12

HOSE

90445-19M01-00

1
Out of stock

13

PACKING, HOSE 2

GJ1-67578-10-00

1

$3.69

In stock

14

CONNECTION, THRU-HULL 1/4

90604-80759-00

1

$18.99

In stock

15

—

$16.48

In stock

16

GASKET

90430-13909-00

1
Out of stock

17

CLAMP (6E5)

90465-13M11-00

1

$5.72

In stock

18

DRAIN PLUG ASSY

EU0-62280-00-00

1

$28.23

In stock

19

. PLUG, DRAIN

EU0-62282-00-00

1

$7.91

In stock

20

. O-RING

EU0-62283-00-00

1

$3.95

In stock

21

. PACKING DRAIN (EU0)

EU0-62285-01-00

1

$6.00

In stock

22

SCREW, TAPPING

97780-50620-00

1

$2.94

In stock

23

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

24

BOWEYE 1

FN8-U1624-00-00

1
Out of stock

25

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

26

. NUT, SELF-LOCKING

95720-08300-00

1

$4.15

In stock

27

HOSE

90446-20M39-00

1
Out of stock

28

PIPE 1

63N-51673-00-00

1
Out of stock

29

HOSE (L380)

90445-14M25-00

—

$19.46

In stock

30

CLAMP

90465-10098-00

1

$2.24

In stock

31

CLAMP (6E5)

90465-13M11-00

1

$5.72

In stock
