1997 Yamaha Wave Blaster II (WB760V) Engine Hatch 1 Diagram

← All diagrams

Find the part on the Engine Hatch 1 diagram for your 1997 Yamaha Wave Blaster II (WB760V), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

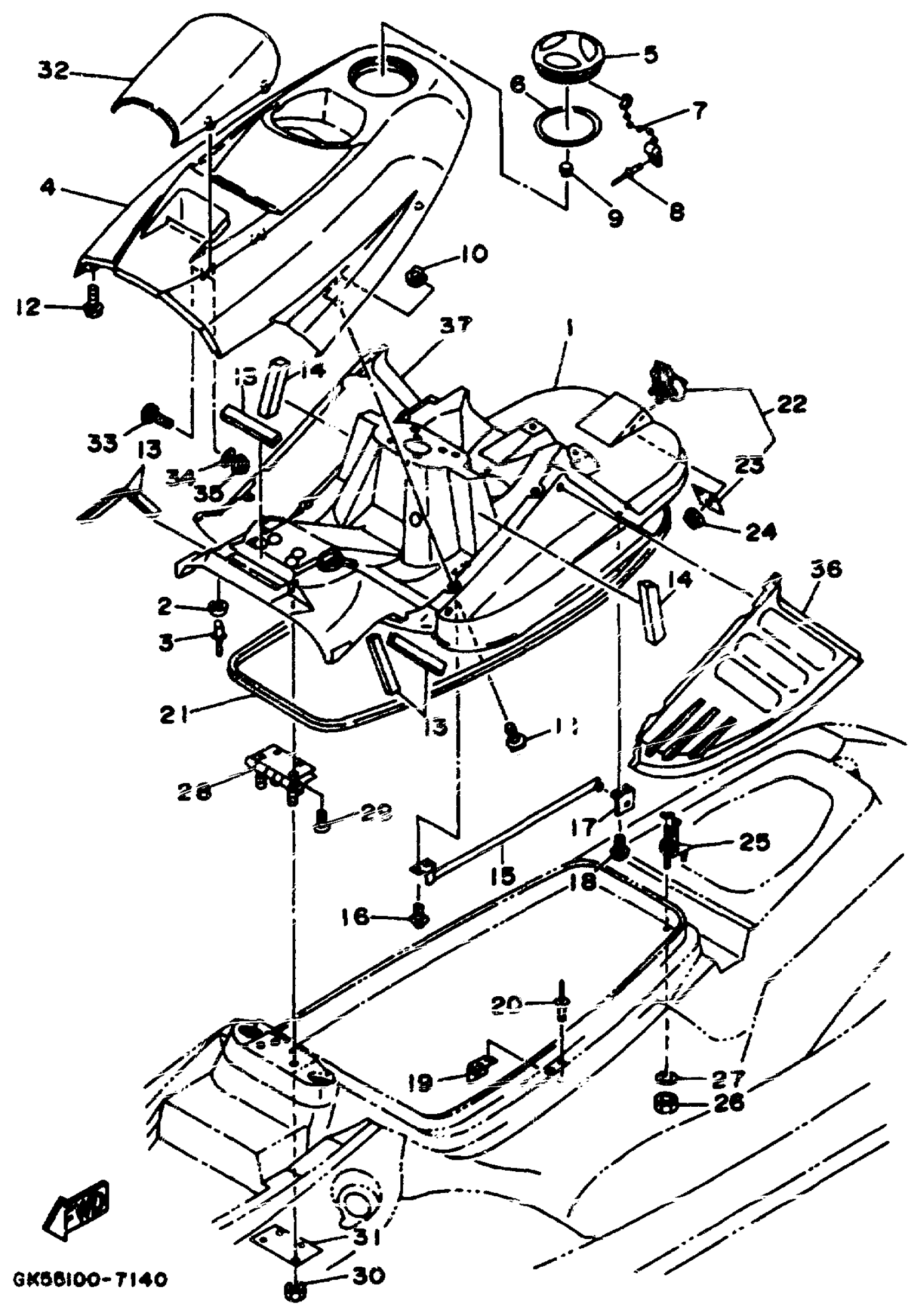

1997 Yamaha Wave Blaster II (WB760V) Engine Hatch 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ENGINE HATCH COMP.

GK5-6516A-10-00

1
Out of stock

2

CUSHION, RUBBER

GA7-63768-00-00

1
Out of stock

3

RIVET, BLIND(EU0,USA)

90267-489U9-00

1

$3.32

In stock

4

COVER, ENGINE HATCH

GK5-6516N-10-00

1
Out of stock

5

CAP,CASE

GK5-6591C-01-00

1
Out of stock

6

PACKING, CASE

GK5-6591D-00-00

1
Out of stock

7

CHAIN, BALL

GK5-64735-09-00

1
Out of stock

8

RIVET, BLIND

90267-40936-00

1

$1.38

In stock

9

PLUG(EU0)

90605-50201-00

—

$3.49

In stock

10

NUT, SPRING(GJ3)

90183-06902-00

1

$9.14

In stock

11

BOLT, WITH WASHER

90119-06947-00

1
Out of stock

12

SCREW, BIND(J39)

98980-06014-00

1

$5.66

In stock

13

PACKING 6

GK5-6266E-00-00

1
Out of stock

14

PACKING 8

GK5-6266G-00-00

1
Out of stock

15

SUPPORT, HATCH

GH1-62891-01-00

1
Out of stock

16

SCREW, WITH WASHER

90159-06901-00

1

$9.22

In stock

17

FIX, PLATE

GK5-62892-00-00

1

$31.99

In stock

18

SCREW, WITH WASHER

90159-06901-00

1

$9.22

In stock

19

BRACKET, HATCH SUPPORT

GK5-62884-00-00

1
Out of stock

20

RIVET, BLIND

90267-48940-00

1

$10.99

In stock

21

PACKING

GK5-62664-01-00

1
Out of stock

22

HATCH LOCK ASSY

FJ0-62840-02-00

1
Out of stock

23

. PLATE, HATCH LOCK

FJ0-6284F-00-00

1
Out of stock

24

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

25

HOOK, HATCH LOCK

GK5-62843-00-00

1
Out of stock

26

NUT, SELF-LOCKING

95720-06300-00

1

$1.85

In stock

27

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

28

HINGE, HATCH

GK5-6517G-00-00

1
Out of stock

29

SCREW, FLAT HEAD

98780-06014-00

1

$3.54

In stock

30

NUT, SELF-LOCKING

95720-06300-00

1

$1.85

In stock

31

PLATE

GK5-65193-00-00

1
Out of stock

32

VISOR

GK5-6515N-00-00

1

$256.99

In stock

33

SCREW

90149-05945-00

1
Out of stock

34

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

35

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

36

PAD, KNEE 1

GK5-6353C-10-00

1
Out of stock

37

PAD, KNEE 2

GK5-6353D-10-00

1
Out of stock
