1996 Yamaha Wave Blaster II (WB760U) Ventilation Diagram

← All diagrams

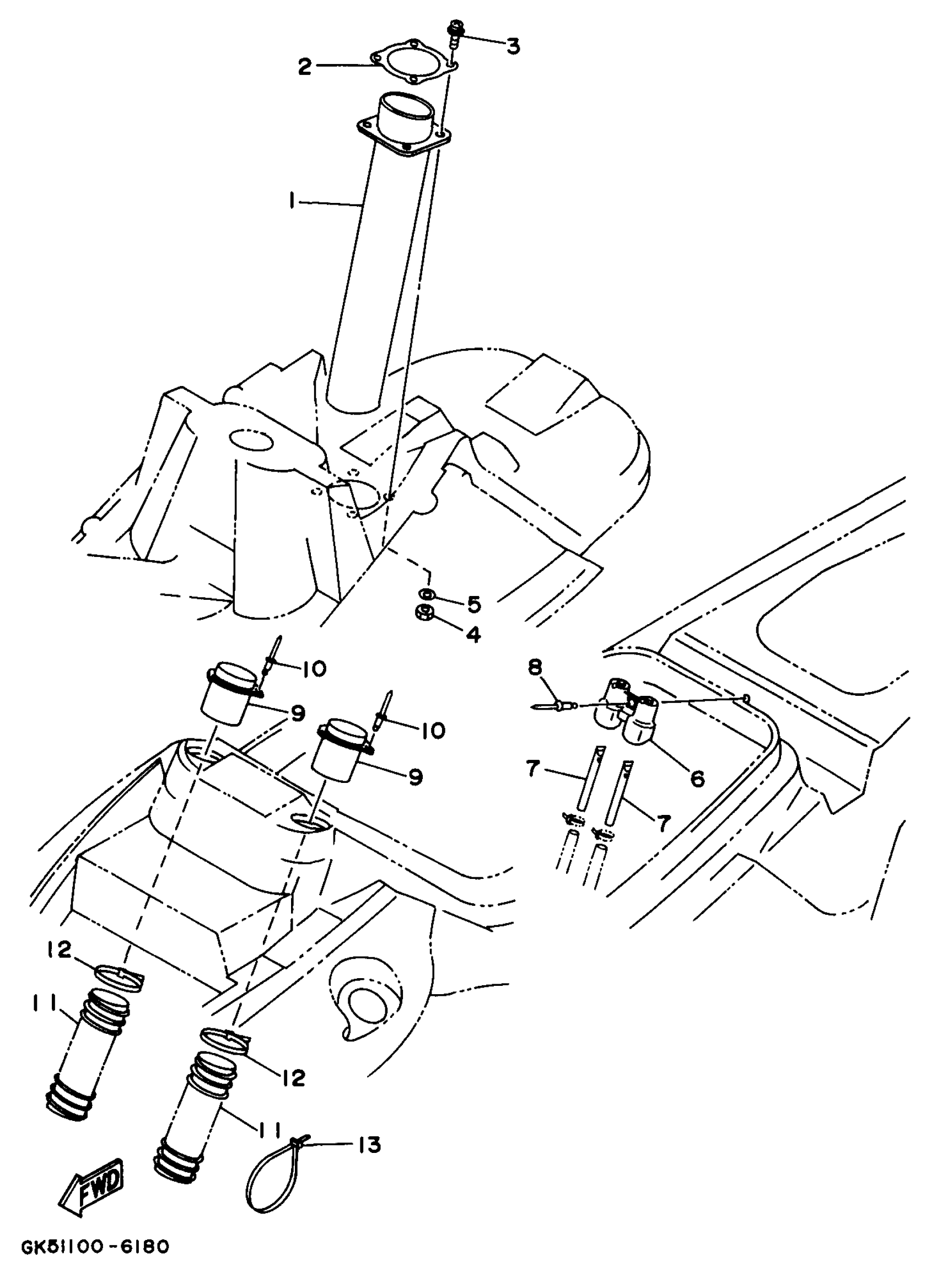

Find the part on the Ventilation diagram for your 1996 Yamaha Wave Blaster II (WB760U), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Yamaha Wave Blaster II (WB760U) Ventilation Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE, VENTILATOR 2

GK5-6213G-00-00

1
Out of stock

2

PLATE, HOSE 1

GA7-6213H-00-00

1
Out of stock

3

SCREW, PANHEAD (A93)

98580-05525-00

1

$1.54

In stock

4

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

5

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

6

SOCKET, VENTILATION

GK5-62159-00-00

1
Out of stock

7

PIPE, VENTILATION

GK5-62149-00-00

1
Out of stock

8

RIVET, BLIND

90267-48802-00

1

$2.06

In stock

9

VENTILATOR, OUTLET

GH1-62139-00-00

1
Out of stock

10

RIVET, BLIND

90267-489U8-00

1

$1.54

In stock

11

HOSE, VENTILATOR 1

GK5-6213F-00-00

1

$94.99

In stock

12

NYLON CLIP 1(GD0)

90601-20016-00

1

$9.17

In stock

13

BAND

90601-20008-00

1

$7.38

In stock
