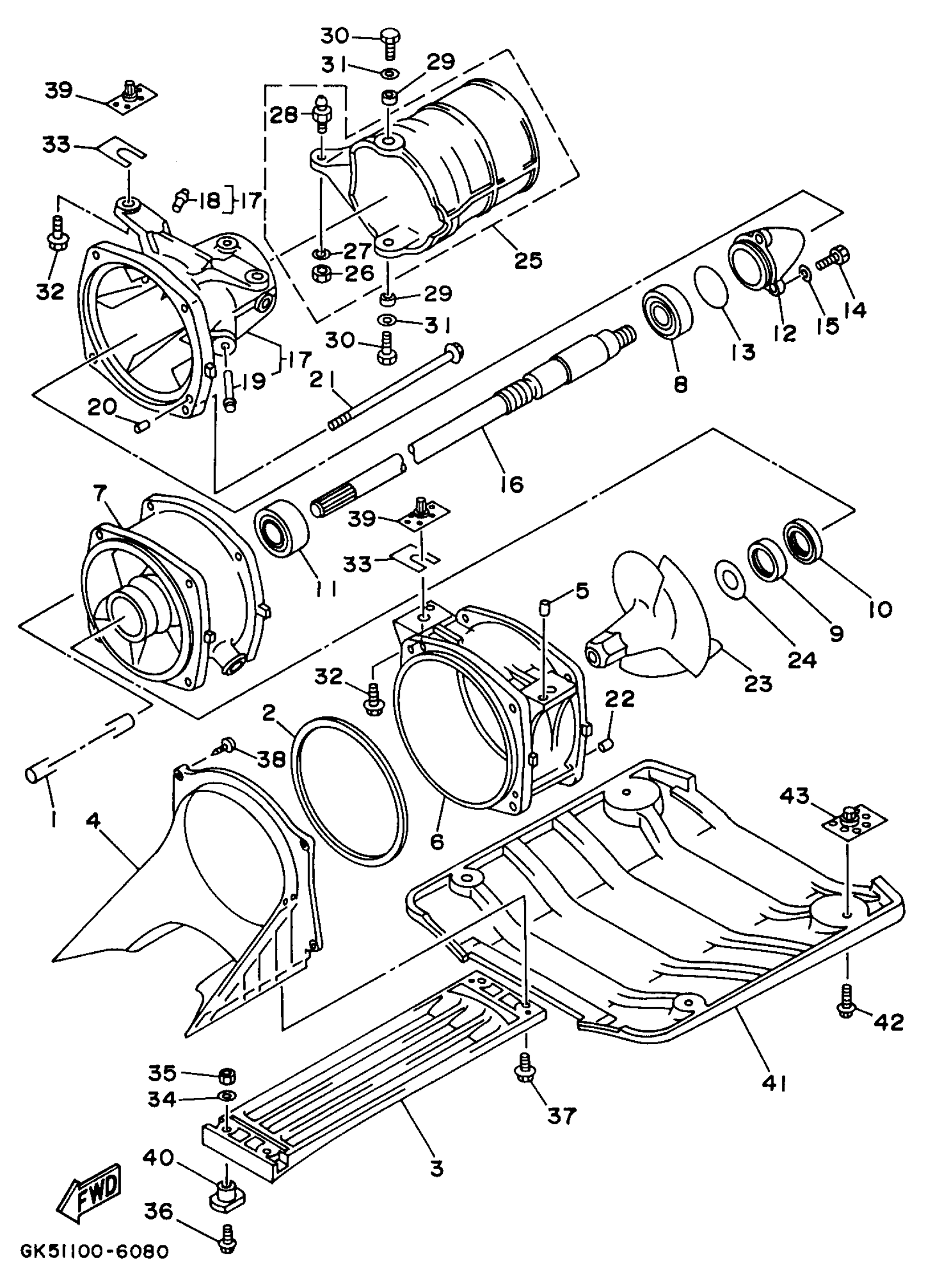

Yamaha WB760U (WAVE BLASTER II) 1996 JET UNIT 1 Diagram

#

Description
Price

1

HOSE (L108)

90445-18M03-00

$15.13

2

. PACKING

64Y-51117-00-00

Unavailable

3

SCREEN, INTAKE

6R7-51333-00-00

$94.01

4

DUCT, INTAKE

64Y-51311-00-00

Unavailable

5

PIN, DOWEL(61L)

93606-09M19-00

$2.58

6

HOUSING, IMPELLER

64Y-51312-01-94

Unavailable

7

DUCT, IMPELLER

63M-51315-02-00

Unavailable

8

BEARING (6K8)

93306-205U1-00

$19.73

9

OIL SEAL(6R7)

93102-25M34-00

$13.85

10

OIL SEAL(6R7)

93101-25M50-00

$20.80

11

BEARING

93305-205U1-00

$102.97

12

CAP

62T-51326-00-00

$70.13

13

. O-RING

93210-46M16-00

$7.59

14

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

15

WASHER, PLAIN (646)

92990-06600-00

$2.80

16

SHAFT, DRIVE

64Y-45511-00-00

Unavailable

17

NOZZLE

64T-51318-01-94

$162.67

18

. NIPPLE

6K8-51129-00-00

$9.87

19

. NIPPLE,HOSE

63M-51334-00-00

$21.63

20

PIN, DOWEL (614)

93606-12019-00

Unavailable

21

BOLT, WASHER BASED

90105-08M74-00

$36.99

22

PIN, DOWEL (614)

93606-12019-00

Unavailable

23

IMPELLER

64Y-51321-A0-00

Unavailable

24

SPACER

62T-51348-00-00

$49.39

25

NOZZLE, DEFLECTOR

64Y-51313-00-00

Unavailable

26

. NUT

95380-08700-00

$3.14

27

WASHER, PLATE(6R8)

90201-08M04-00

Unavailable

28

. BOLT, JOINT

63M-42316-00-00

Unavailable

29

COLLAR(6R7)

90387-08M06-00

Unavailable

30

BOLT, HEXAGON

97095-08020-00

Unavailable

31

.. WASHER, PLATE

92990-08600-00

$2.41

32

BOLT, WITH WASHER

90119-10949-00

Unavailable

33

SHIM (T=0.1)

EW2-67354-00-01

Unavailable

33

SHIM (T=0.3)

EW2-67354-00-03

Unavailable

33

SHIM (T=0.5)

EW2-67354-00-05

Unavailable

33

SHIM (T=1.0)

EW2-67354-00-10

Unavailable

34

WASHER, PLATE

92990-10600-00

$2.66

35

NUT(624)

95380-10600-00

Unavailable

36

BOLT, WITH WASHER

90119-06896-00

$5.23

37

BOLT, WITH WASHER

90119-06908-00

$2.58

38

SCREW, TAPPING

97780-60520-00

$3.88

39

NUT

90179-10957-00

Unavailable

40

NUT, T

90180-06900-00

Unavailable

41

PLATE, 2

GA7-6273B-00-00

Unavailable

42

BOLT, WITH WASHER

90119-08904-00

$3.02

43

NUT

90179-08961-00

Unavailable
