1996 Yamaha Wave Blaster II (WB760U) Control Cable Diagram

← All diagrams

Find the part on the Control Cable diagram for your 1996 Yamaha Wave Blaster II (WB760U), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

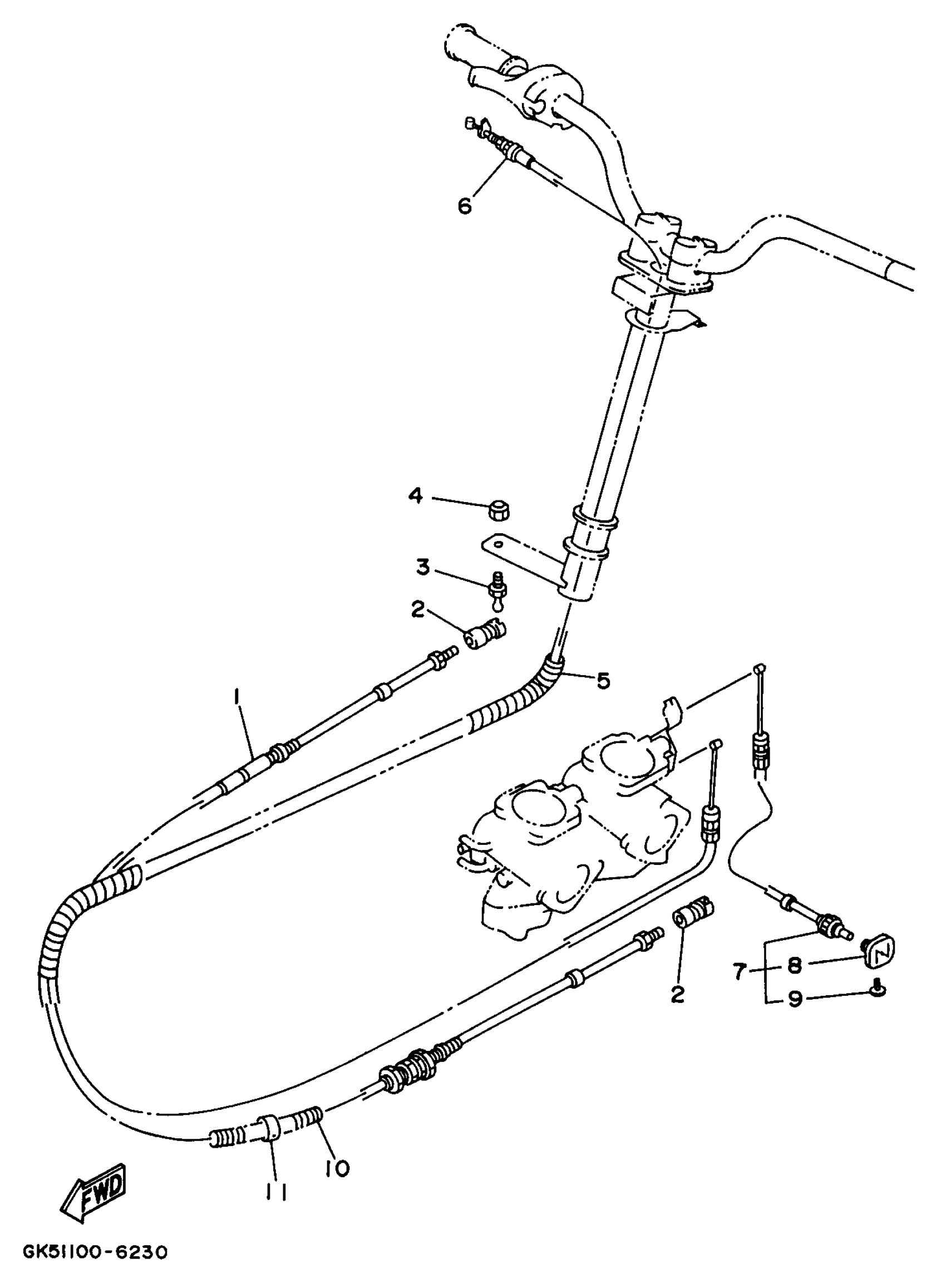

1996 Yamaha Wave Blaster II (WB760U) Control Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING CABLE ASSY

GK5-61480-00-00

1
Out of stock

2

SHAFT,JOINT BALL

GK5-6146F-00-00

1

$50.49

In stock

3

SHAFT, JOINT BALL

EU0-U1461-10-00

1

$29.91

In stock

4

NUT, SELF-LOCKING

95720-06300-00

1

$1.85

In stock

5

SPIRAL TUBE

90699-U1100-00

1
Out of stock

6

CABLE, THROTTLE

GK5-67252-00-00

1
Out of stock

7

CABLE, CHOKE

GK5-67242-00-00

1

$82.49

In stock

8

. KNOB

EW2-67243-00-00

1

$17.99

In stock

9

. SCREW

90149-03930-00

1

$1.38

In stock

10

SPI-LAP 11

90699-36100-00

1
Out of stock

11

PACKING, HOSE 2

GK5-67578-00-00

1
Out of stock
