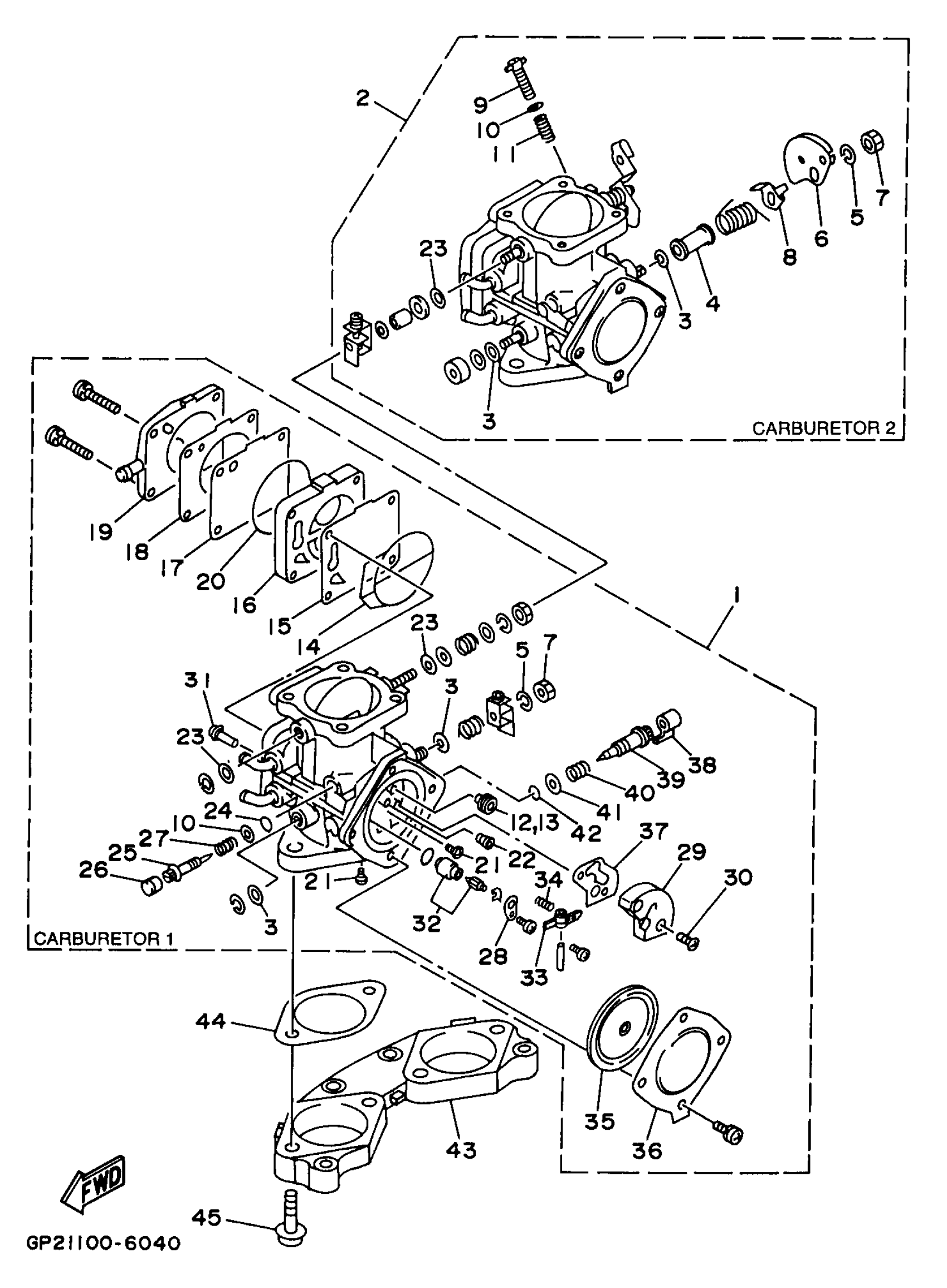

Yamaha WB760U (WAVE BLASTER II) 1996 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

64Y-14301-01-00

Unavailable

2

CARBURETOR ASSY 2

64Y-14302-02-00

Unavailable

3

. WASHER

6R7-14596-01-00

Unavailable

4

. COLLAR

6K8-14534-10-00

$19.68

5

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

6

. THROTTLE SHAFT ASSEMBLY

6K8-14930-00-00

Unavailable

7

. NUT

95380-08700-00

$3.05

8

. BRACKET, THROTTLE 1

6K8-14926-10-00

$19.68

9

SCREW,ADJUST

6M6-14521-01-00

Unavailable

10

WASHER,NEEDLE

812-14235-00-00

$2.44

11

. SPRING, THROTTLE STOP

47X-14133-00-00

$3.18

12

JET, MAIN (#135)

3G2-14231-27-00

$9.88

13

JET, MAIN (#150)

3G2-14231-30-A0

$9.99

14

. O-RING

6K8-14564-00-00

$8.51

15

. DIAPHRAGM

6K8-24411-20-00

$29.63

16

BODY 2

6M6-24413-02-00

$45.81

17

. VALVE, CHECK

6K8-24421-10-00

$24.44

18

. GASKET, FUEL PUMP 1

6K8-24431-20-00

$10.36

19

. COVER

6K8-24452-10-00

Unavailable

20

. O-RING

6K8-14563-00-00

Unavailable

21

. SCREW

6K8-14521-10-00

$34.49

22

JET, MAIN (#115)

830-14231-23-00

Unavailable

23

. WASHER

6K8-14597-11-00

Unavailable

24

. O-RING

6K8-14562-00-00

$1.88

25

. PLATE, NEEDLE FITTING

6K8-14946-10-00

$29.49

26

. CAP, CARBURETOR

6K8-14471-10-00

$8.17

27

SPRING, THROTTLE VALVE

68V-14331-00-00

Unavailable

28

. PLATE

6K8-14527-11-00

$11.35

29

. BODY 1

6R7-24412-01-00

$23.36

30

SCREW, STOP

6K8-14523-12-00

Unavailable

31

. STRAINER

6R7-14569-00-00

$11.48

32

NEEDLE

61X-14916-16-00

$22.90

33

. ARM, FLOAT

6K8-14547-01-00

$8.26

34

. SPRING

6R7-14253-00-00

$2.49

35

. DIAPHRAGM, PUMP

6R7-14541-00-00

$26.99

36

. BODY, PUMP 1

6R7-14542-00-00

$56.05

37

. GASKET

6K8-14536-11-00

$8.14

38

. CAP, CARBURETOR

6K8-14481-10-00

Unavailable

39

. SCREW, PILOT

6M6-14923-10-00

Unavailable

40

. SPRING

6K8-14589-00-00

$3.70

41

WASHER, NEEDLE

822-14235-00-00

Unavailable

42

O-RING

583-14561-00-00

Unavailable

43

PLATE

64X-14243-00-00

Unavailable

44

GASKET

64X-14398-00-00

$28.52

45

BOLT, HOLDING

64X-14162-00-00

Unavailable
