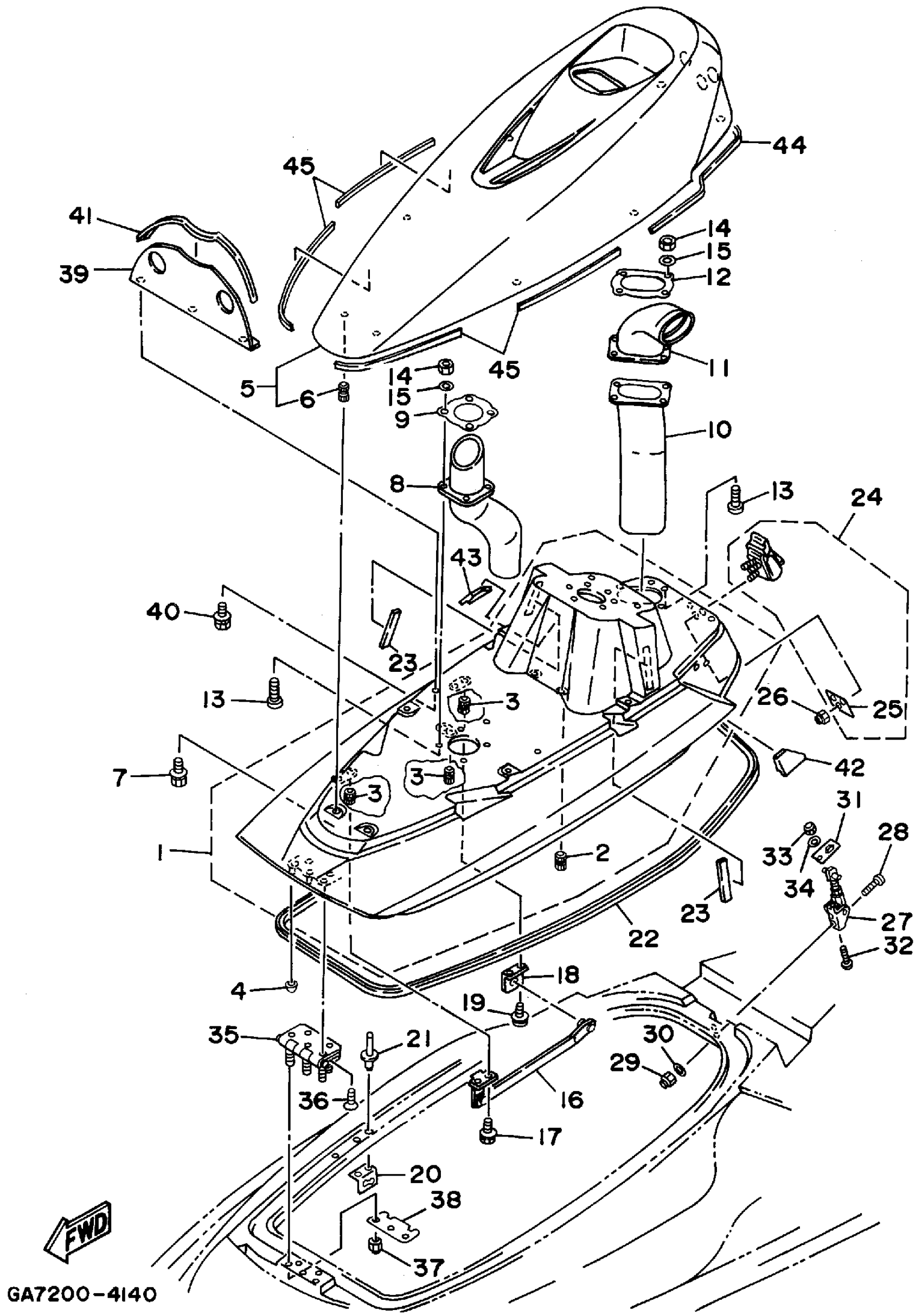

Find the part on the Engine Hatch diagram for your 1995 Yamaha Wave Blaster (WB700T), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Yamaha Wave Blaster (WB700T) Engine Hatch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ENGINE HATCH COMP.

GA7-6516A-00-P1

1
Out of stock

2

. NUT

90179-08927-00

1
Out of stock

3

NUT

90179-069U4-00

1
Out of stock

4

CUSHION, RUBBER

GA7-63768-00-00

1
Out of stock

5

COVER, ENGINE HATCH

GA7-6516N-00-P0

1
Out of stock

6

NUT

90179-069U4-00

1
Out of stock

7

BOLT, WITH WASHER

90119-06913-00

1

$1.33

In stock

8

HOSE, VENTILATOR 1

GA7-6213F-00-00

1
Out of stock

9

PLATE, HOSE 1

GA7-6213H-00-00

1
Out of stock

10

HOSE, VENTILATOR 2

GA7-6213G-00-00

1
Out of stock

11

HOSE, VENTILATOR 3

GA7-6213K-00-00

1
Out of stock

12

PLATE, HOSE 2

GA7-6213J-00-00

1
Out of stock

13

SCREW, PANHEAD (A93)

98580-05525-00

1

$1.54

In stock

14

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

15

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

16

SUPPORT, HATCH

GA7-62891-01-00

1
Out of stock

17

SCREW, WITH WASHER

90159-06901-00

1

$9.22

In stock

18

FIX, PLATE

FN8-62892-00-00

1
Out of stock

19

SCREW, WITH WASHER

90159-06901-00

1

$9.22

In stock

20

BRACKET, HATCH SUPPORT

FN8-62884-00-00

1
Out of stock

21

RIVET, BLIND

90267-48940-00

1

$10.99

In stock

22

PACKING

GA7-62664-00-00

1
Out of stock

23

PACKING 3

GA7-6266B-00-00

1
Out of stock

24

HATCH LOCK ASSY

FJ0-62840-02-00

1
Out of stock

25

. PLATE, HATCH LOCK

FJ0-6284F-00-00

1
Out of stock

26

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

27

HOOK, HATCH LOCK

EU0-62843-02-00

1
Out of stock

28

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

29

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

30

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

31

STOPPER, HATCH HOOK

GA7-6519B-00-00

1
Out of stock

32

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

33

.. NUT

95380-05800-00

1

$2.77

In stock

34

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

35

HINGE

90600-70069-00

1

$109.99

In stock

36

SCREW(617)

98780-05012-00

—

$3.03

In stock

37

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

38

PLATE

GA7-65193-00-00

1
Out of stock

39

PARTITION

GA7-6213N-00-00

1
Out of stock

40

BOLT WITH WASHER (EW2)

90119-06920-00

—

$4.74

In stock

41

PACKING 8

GA7-6266G-00-00

1
Out of stock

42

PAD, HATCH 1

GA7-6517M-00-00

1
Out of stock

43

PAD, HATCH 2

GA7-6517N-00-00

1
Out of stock

44

PACKING 48

90656-67105-00

1
Out of stock

45

PACKING 48

90656-67105-00

1
Out of stock
