1994 Yamaha Wave Blaster (WB700S) Hull - Deck Diagram

← All diagrams

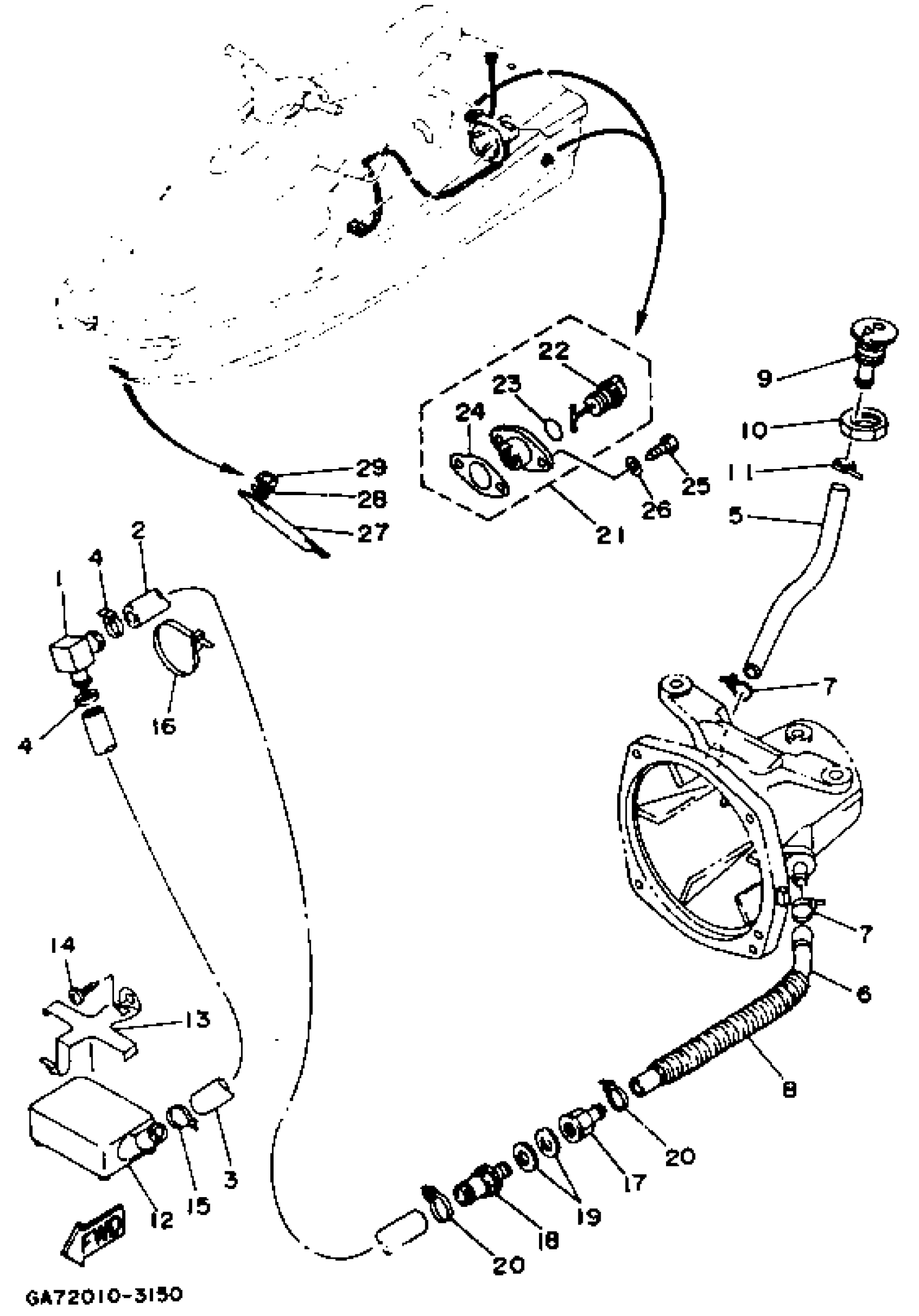

Find the part on the Hull - Deck diagram for your 1994 Yamaha Wave Blaster (WB700S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1994 Yamaha Wave Blaster (WB700S) Hull - Deck Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT, HOSE

61X-51162-00-00

1

$18.99

In stock

2

HOSE

90445-19M01-00

1
Out of stock

3

HOSE

90445-19M01-00

1
Out of stock

4

CLAMP

90465-10098-00

1

$2.24

In stock

5

PIPE 1

62E-51673-00-00

1

$24.99

In stock

6

HOSE (L380)

90445-14M25-00

1

$19.46

In stock

7

CLAMP

90465-10098-00

1

$2.24

In stock

8

HOSE

90446-20M39-00

1
Out of stock

9

SPOUT

FN8-6269B-00-00

1

$17.81

In stock

10

NUT

EU0-61652-00-00

1

$12.27

In stock

11

CLAMP

90465-10098-00

1

$2.24

In stock

12

STRAINER, BILGE

GD0-6761D-00-00

1

$58.99

In stock

13

BASE, STRAINER BLIGE

EW2-67618-00-00

1

$37.39

In stock

14

1

$4.15

In stock

15

CLAMP

90465-10098-00

1

$2.24

In stock

16

BAND (EU0)

90601-20009-00

1

$6.46

In stock

17

CONNECTION, THRU-HULL 1/4

90604-80759-00

1

$18.99

In stock

18

—

$16.48

In stock

19

GASKET

90430-13909-00

1
Out of stock

20

CLAMP

90465-10098-00

1

$2.24

In stock

21

DRAIN PLUG ASSY

EU0-62280-00-00

1

$28.23

In stock

22

. PLUG, DRAIN

EU0-62282-00-00

1

$7.91

In stock

23

. O-RING

EU0-62283-00-00

1

$3.95

In stock

24

. PACKING DRAIN (EU0)

EU0-62285-01-00

1

$6.00

In stock

25

SCREW, TAPPING

97780-50620-00

1

$2.94

In stock

26

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

27

BOWEYE 1

FN8-U1624-00-00

1
Out of stock

28

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

29

. NUT, SELF-LOCKING

95720-08300-00

1

$4.15

In stock
