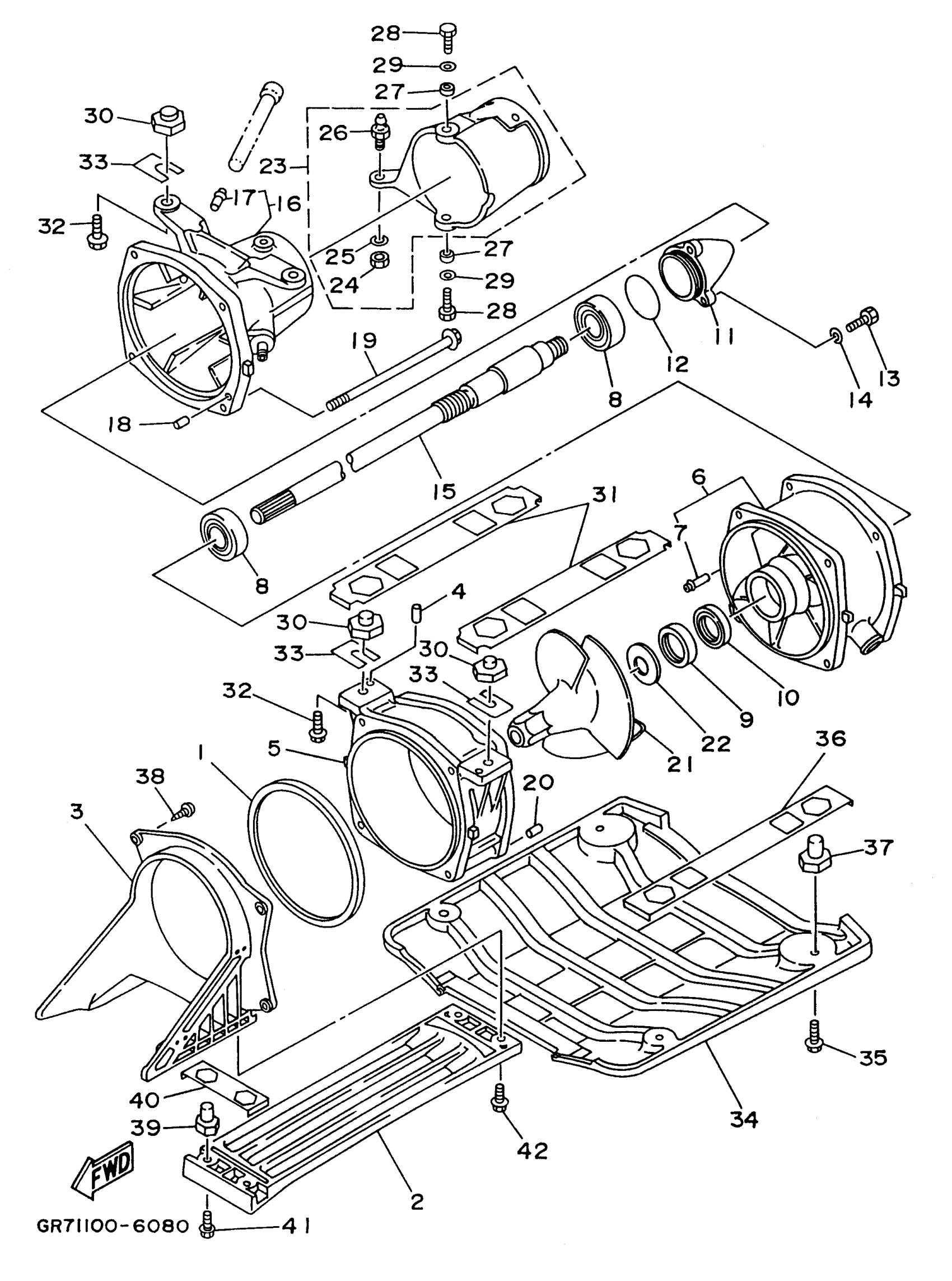

Find the part on the Jet Unit 1 diagram for your 1996 Yamaha Wave Blaster (WB700AU), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Yamaha Wave Blaster (WB700AU) Jet Unit 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. PACKING

6R7-51117-01-00

1
Out of stock

2

SCREEN, INTAKE

6R7-51333-00-00

1
Out of stock

3

DUCT, INTAKE

62E-51311-00-00

1
Out of stock

4

PIN, DOWEL(61L)

93606-09M19-00

1
Out of stock

5

HOUSING, IMPELLER

6R7-51312-03-00

1
Out of stock

6

DUCT, IMPELLER

62T-51315-01-00

1
Out of stock

7

. NIPPLE

6K8-51129-00-00

1
Out of stock

8

BEARING (6K8)

93306-205U1-00

1
Out of stock

9

OIL SEAL(6R7)

93102-25M34-00

1
Out of stock

10

OIL SEAL(6R7)

93101-25M50-00

1
Out of stock

11

CAP

62T-51326-00-00

1
Out of stock

12

. O-RING

93210-46M16-00

1
Out of stock

13

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1
Out of stock

14

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

15

SHAFT, DRIVE

62E-45511-00-00

1
Out of stock

16

NOZZLE

61X-51318-01-94

1
Out of stock

17

. NIPPLE

6K8-51129-00-00

1
Out of stock

18

PIN, DOWEL (614)

93606-12019-00

—
Out of stock

19

BOLT, WITH WASHER

90119-06M70-00

1
Out of stock

20

PIN, DOWEL (614)

93606-12019-00

—
Out of stock

21

IMPELLER

62E-51321-A0-00

1
Out of stock

22

SPACER

62T-51348-00-00

1
Out of stock

23

NOZZLE DEFLECOR

61L-51313-00-00

1
Out of stock

24

NUT(650)

95380-06700-00

—
Out of stock

25

WASHER, PLATE

90201-06M02-00

1
Out of stock

26

. BOLT, JOINT

6R7-42316-00-00

1
Out of stock

27

COLLAR(6R7)

90387-08M06-00

—
Out of stock

28

BOLT, HEXAGON

97095-08018-00

1
Out of stock

29

.. WASHER, PLATE

92990-08600-00

1
Out of stock

30

NUT

90179-10954-00

1
Out of stock

31

HOLDER PLATE 1

GA7-6881N-00-00

1
Out of stock

32

BOLT

90119-10906-00

1
Out of stock

33

SHIM (T=0.1)

EW2-67354-00-01

1
Out of stock

33

SHIM (T=0.3)

EW2-67354-00-03

1
Out of stock

33

SHIM (T=0.5)

EW2-67354-00-05

1
Out of stock

33

SHIM (T=1.0)

EW2-67354-00-10

1
Out of stock

34

PLATE, 2

GA7-6273B-00-00

1
Out of stock

35

BOLT, WITH WASHER(GA7)

90119-08932-00

—
Out of stock

36

HOLDER PLATE 2

GA7-6881P-00-00

1
Out of stock

37

NUT

90179-08953-00

1
Out of stock

38

SCREW, TAPPING

97780-60520-00

1
Out of stock

39

NUT

90179-06952-00

1
Out of stock

40

HOLDER PLATE 3

GA7-6881R-00-00

1
Out of stock

41

BOLT, WITH WASHER

90119-06896-00

1
Out of stock

42

BOLT, WITH WASHER

90119-06908-00

1
Out of stock
