1996 Yamaha Wave Blaster (WB700AU) Graphic - Tool Diagram

← All diagrams

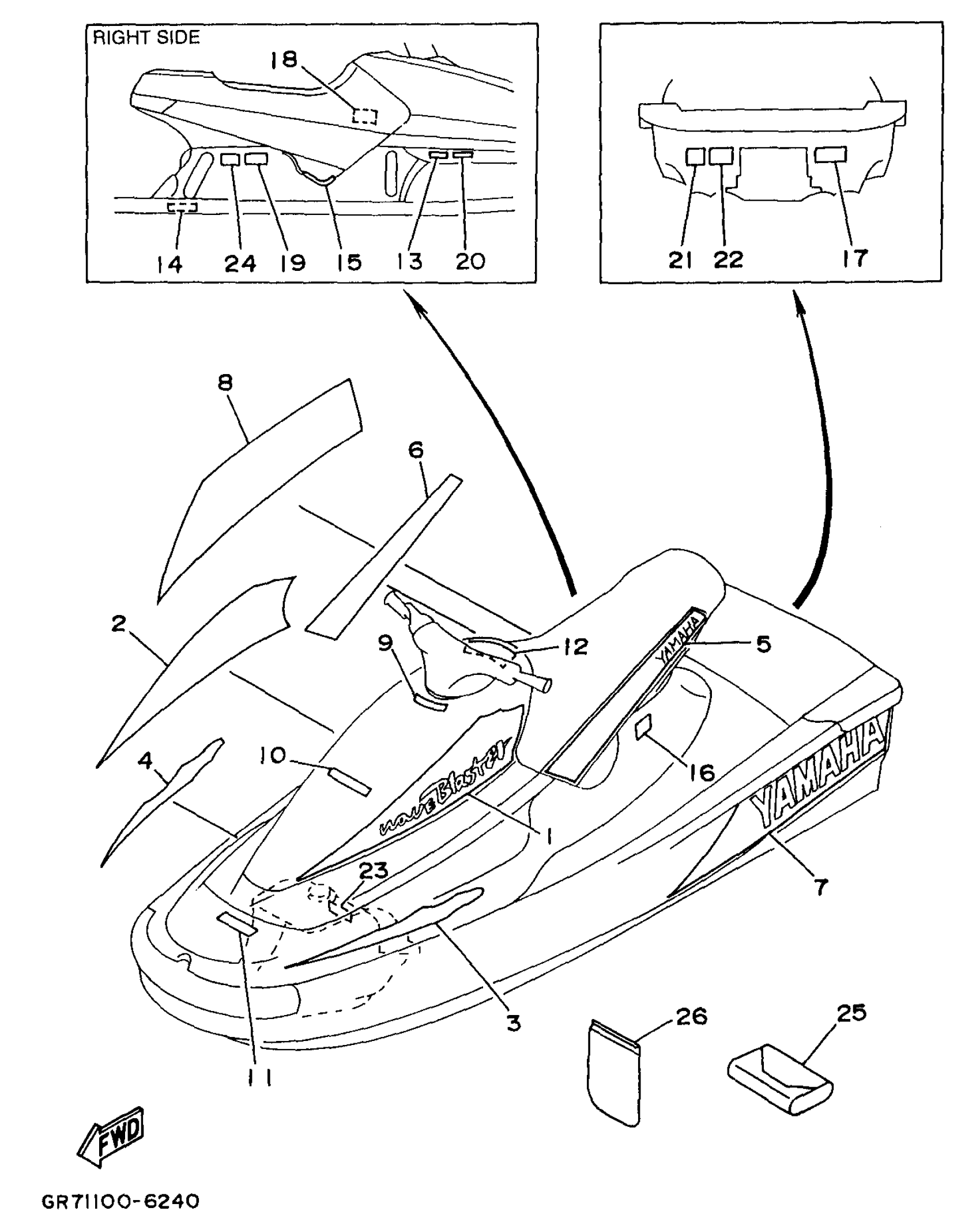

Find the part on the Graphic - Tool diagram for your 1996 Yamaha Wave Blaster (WB700AU), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Yamaha Wave Blaster (WB700AU) Graphic - Tool Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRAPHIC 1

GR7-6417B-00-00

1
Out of stock

2

GRAPHIC 2

GR7-6417C-00-00

1
Out of stock

3

GRAPHIC 3

GR7-6417D-00-00

1
Out of stock

4

GRAPHIC 4

GR7-6417E-00-00

1
Out of stock

5

GRAPHIC 5

GR7-6417F-00-00

1
Out of stock

6

GRAPHIC 6

GR7-6417G-00-00

1
Out of stock

7

GRAPHIC 7

GR7-6417H-00-00

1
Out of stock

8

GRAPHIC 8

GR7-6417J-00-00

1
Out of stock

9

EMBLEM

GA7-64125-00-00

1
Out of stock

10

MARK, YAMAHA A

GR7-64114-00-00

1
Out of stock

11

LABEL, WARNING (FUEL)

GA7-6416B-00-00

1
Out of stock

12

LABEL, WARNING 1

GA7-6416C-02-00

1
Out of stock

13

LABEL, WARNING 4

GA7-6416F-00-00

1
Out of stock

14

LABEL 1

GA7-6419B-00-00

1
Out of stock

15

LABEL 2

GA7-6419C-00-00

1
Out of stock

16

LABEL 3

GA7-6419D-00-00

1
Out of stock

17

LABEL, CAUTION (DRAIN)

GA9-U418G-00-00

1
Out of stock

18

LABEL, CAUTION

GA7-6418B-00-00

1

$19.98

In stock

19

LABEL, USCG.

GA7-6418E-00-00

1
Out of stock

20

LABEL, CAUTION

GA7-6418J-01-00

1
Out of stock

21

LABEL, WARNING 5

GH3-U411A-10-00

1
Out of stock

22

LABEL, WARNING 5

GH3-U411A-10-00

1
Out of stock

23

LABEL, FUEL TANK

GA7-6418D-01-00

1
Out of stock

24

LABEL, CAUTION

GA7-6418C-00-00

1
Out of stock

25

TOOL SET

EU0-65986-13-00

1
Out of stock

26

BAG, VINYL

EU0-65901-03-00

1

$14.49

In stock
