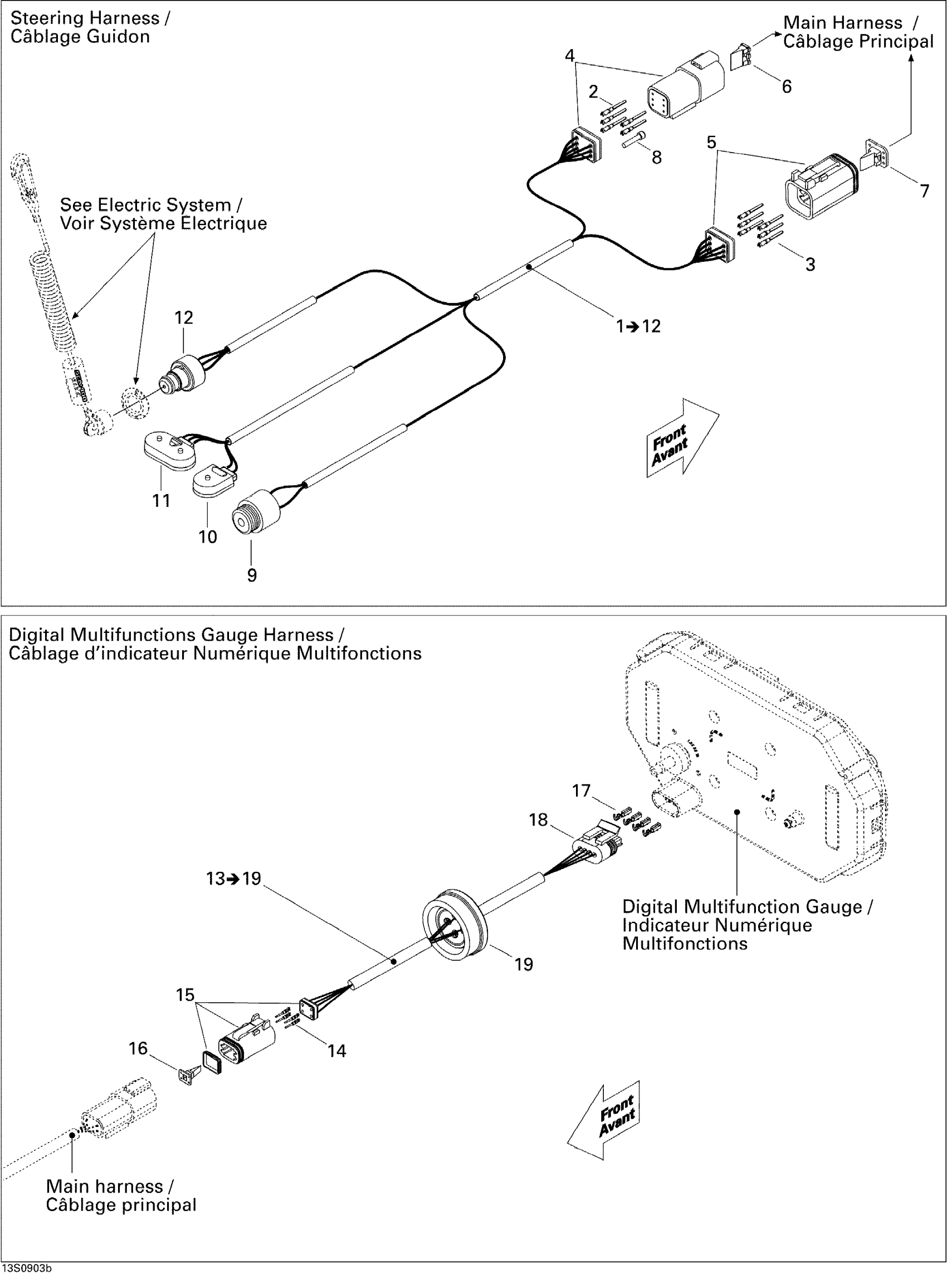

Sea-doo Wake PRO 215, 2009 Electrical Harness 2 Diagram

#

Description
Price

1

STEERING HARNESS - Call your local BRP dealership | Includes 1 to 12

278002382

Unavailable

2

Male Terminal

278000631

$4.12

3

Female Terminal

278000632

Unavailable

4

Male Terminal Housing, 6 Circuits

710001539

$15.57

5

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

Unavailable

6

Female Lock, 6 Circuits

278000735

$3.02

7

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

8

Sealing Cap

293000052

Unavailable

9

Buzzer | SERV

278002290

Unavailable

10

START/STOP SWITCH - Call your local BRP dealership

278001733

Unavailable

11

VTS SWITCH - Call your local BRP dealership | SERV

278002156

Unavailable

12

Interrupteur *Safety Switch | SERV This part replaces 278002350.

278002774

Unavailable

13

DIGITAL MULTIFUNCTION GAUGE HARNESS - Call your local BRP dealership | Includes 10 to 16

278002180

Unavailable

14

Female Terminal

278000632

Unavailable

15

Male Connector, 4 Circuits | CE

278000739

$14.92

16

Male Lock, 4 Circuits | CE

278000738

$2.91

17

Female Terminal

278001114

$2.55

18

MALE CONNECTOR, 4 CIRCUITS - Call your local BRP dealership

278001308

Unavailable

19

CABLE GROMMET - Call your local BRP dealership

293720079

Unavailable
