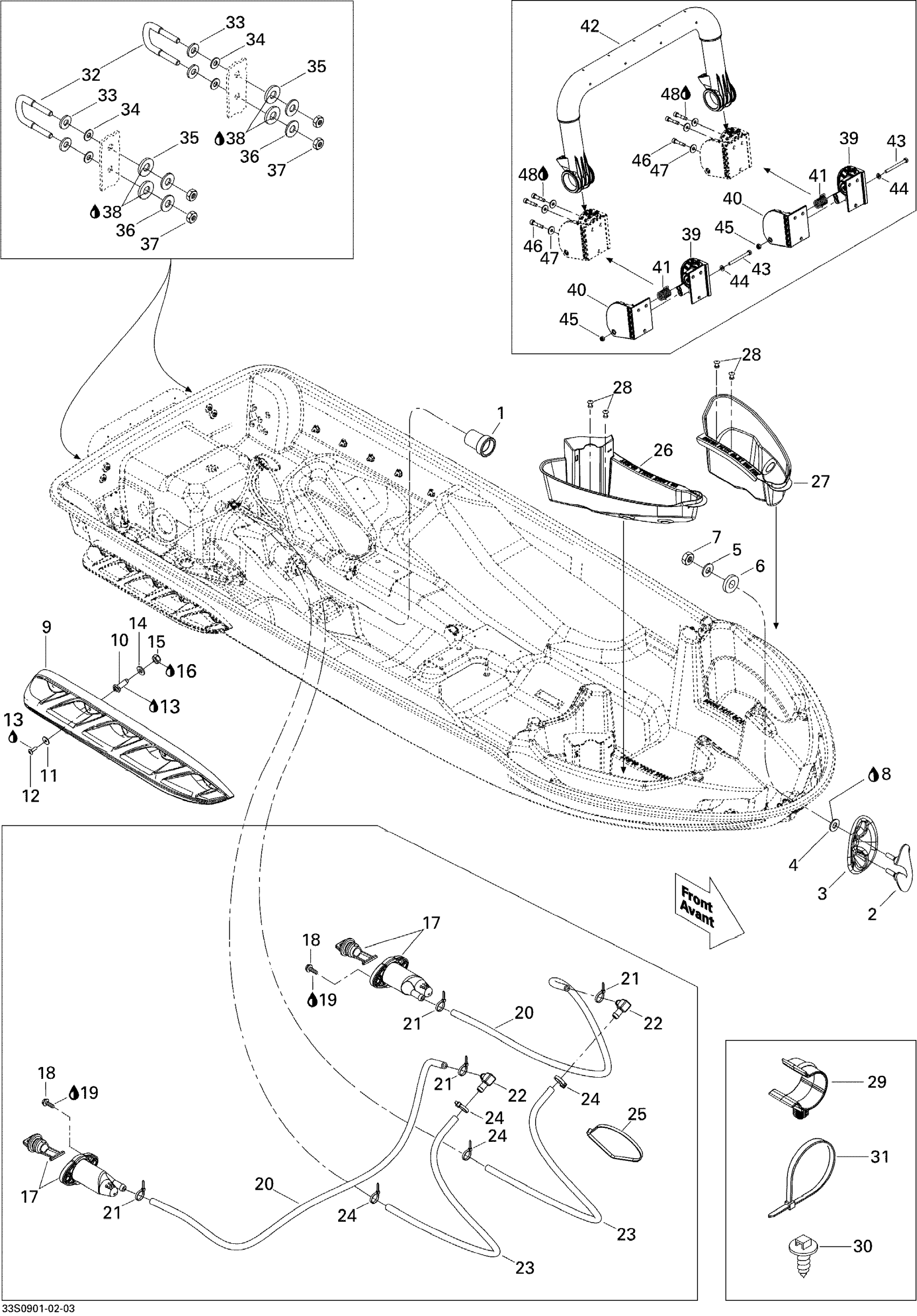

Sea-doo Wake PRO 215, 2009 Hull Diagram

#

Description
Price

1

HULL INSERT, 50 MM - Call your local BRP dealership

292000974

Unavailable

2

Eye-Bow (Black) This part replaces 292000708.

292000452

$33.12

3

Black Shell

292001837

$14.92

4

Stainless, Flat Washer 8 mm

234081600

$0.46

5

Flat Washer 8 mm, Stainless

250200175

$1.29

6

Rubber Washer

293830037

$2.75

7

Hex. Elastic Nut M8 Brass

232581200

$1.29

8

Silicone Sealant 51388, 300 ml

296000309

$35.72

9

RH Sponson

292001878

$72.77

9

LH Sponson

292001877

$72.77

10

SPONSON ADAPTER - Call your local BRP dealership

292001046

Unavailable

11

Flat Washer M6.6 X 22

250200022

$1.87

12

TORX SCREW M6.6 X 20, STAINLESS - Call your local BRP dealership

250000299

Unavailable

13

Silicone Sealant 51388, 300 ml

296000309

$35.72

14

FLAT WASHER M12 - Call your local BRP dealership

250200053

Unavailable

15

NUT-STOP ELASTIC DIN.985A2 - Call your local BRP dealership

250100078

Unavailable

16

Loctite 243, 10 ml

293800060

$20.77

17

Drain Plug

292001252

$28.57

18

Hex. Screw 10-14 X 7/8”

211000023

$2.91

19

Silicone Sealant 51388, 300 ml

296000309

$35.72

20

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

21

Tie Wrap 94 mm | 4X4

293750001

$0.83

22

ELBOW FITTING 90 - Call your local BRP dealership

293710117

Unavailable

23

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

24

Tie Wrap 94 mm | 4X4

293750001

$0.83

25

Tie Wrap 368 mm

293750008

$0.85

26

RH Storage Tray

292001158

Unavailable

27

LH Storage Tray

292001307

Unavailable

28

RIVET 1/4 X 1/2 - Call your local BRP dealership

293150169

Unavailable

29

Not Available As Spare Parts

XXX

Unavailable

30

Mount Dart

293730040

$0.86

31

Tie-Rap 180 mm

414115200

$0.09

31

Tie Wrap 368 mm

293750008

$0.85

32

U-Clamp

292000933

$32.47

33

Flat Washer M8.5 x 18

293050001

$1.29

34

Flat Washer 8 mm, Nylon

234081100

$1.00

35

Rubber Washer

293830037

$2.75

36

Flat Washer 8 mm, Stainless

250200175

$1.29

37

Hex. Elastic Nut M8 Brass

232581200

$1.29

38

Silicone Sealant 51388, 300 ml

296000309

$35.72

39

A Section Support

292001509

$58.47

40

B Section Support

292001510

$58.47

41

Spring

292001259

$21.42

42

Overmolded Bar

292001204

$122.82

43

Hex. Screw M6 x 65 | Produced Before February 01 2010

207066560

$1.55

44

Stainless Flat Washer M6

234061600

$0.25

45

Hex. Elastic Stop Nut M6

232561600

$0.92

46

Socket Screw M6 X 30, Scotch Grip

250000386

$1.56

47

Flat Washer M6, Stainless

234062600

$0.64

48

Was 293800066 Sealant Loctite 5900, 300 ml

219704460

$59.12
