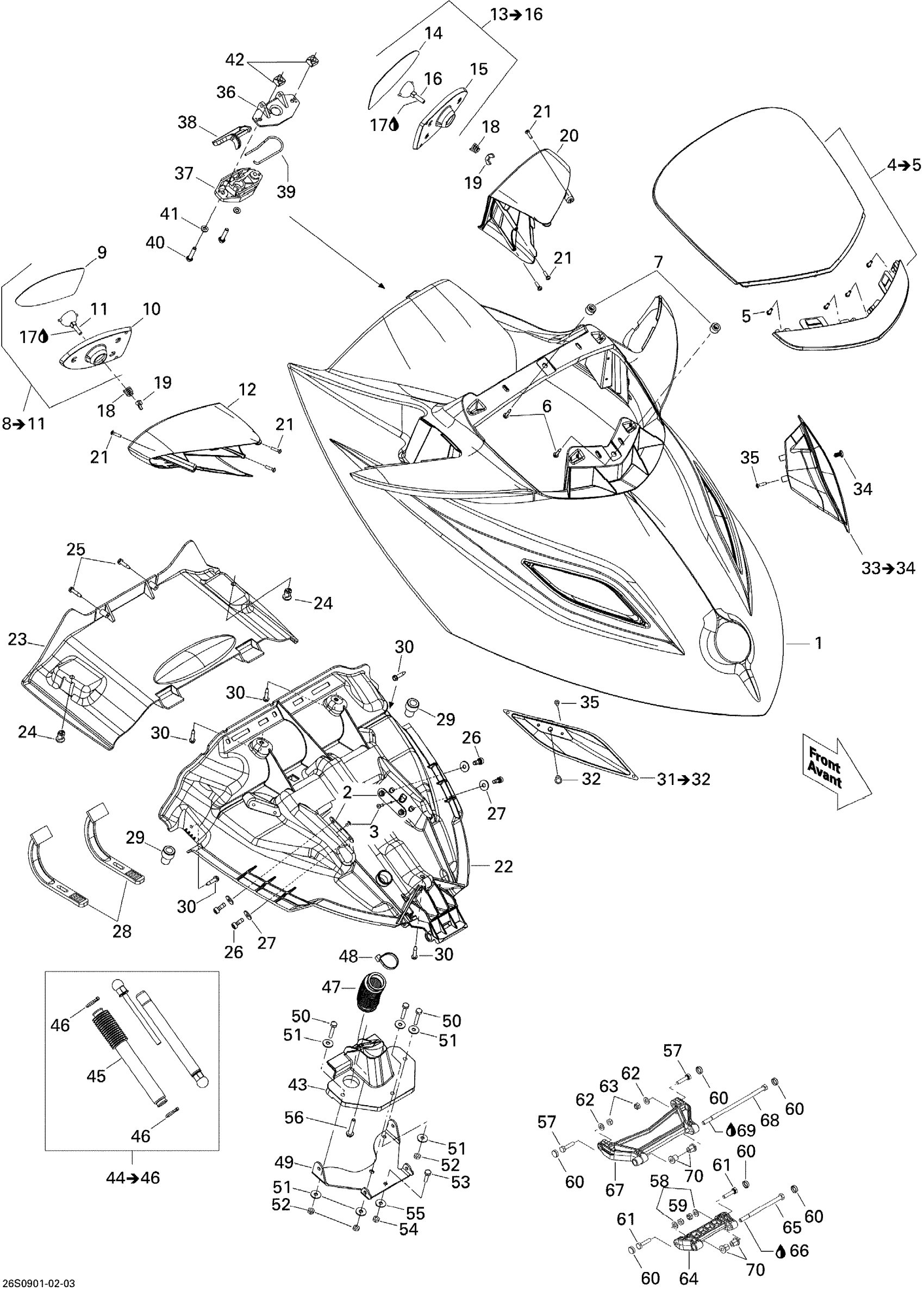

Sea-doo Wake PRO 215, 2009 Front Cover Diagram

#

Description
Price

1

STORAGE COVER - Call your local BRP dealership | Includes 1 to 3

269501667

Unavailable

2

PLATE - Call your local BRP dealership

277001479

Unavailable

3

Pop RIvet 1/8 X ,375

293150285

Unavailable

4

Deflector | Includes 4 to 5

269501612

Unavailable

5

Hex. Flange Screw K40 X 13

241141360

Unavailable

6

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

7

Spacer

291001203

Unavailable

8

RH MIRROR ASS'Y - Call your local BRP dealership | Includes 8 to 11

269501604

Unavailable

9

RH MIRROR - Call your local BRP dealership

269501292

Unavailable

10

Frame Mirror

269500697

Unavailable

11

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

12

RH MIRROR HOUSING - Call your local BRP dealership

269501669

$56.12

13

LH MIRROR HOUSING - Call your local BRP dealership | Includes 13 to 16

269501605

Unavailable

14

LH MIRROR - Call your local BRP dealership

269501294

Unavailable

15

Frame Mirror

269500697

Unavailable

16

MIRROR BALL JOINT - Call your local BRP dealership

269500079

Unavailable

17

Synthetic Grease, 400 G

293550010

Unavailable

18

Mirror Spring

269500453

Unavailable

19

WING NUT M6 - Call your local BRP dealership

232661600

Unavailable

20

LH MIRROR HOUSING - Call your local BRP dealership

269501670

Unavailable

21

Flange Torx Screw K40 X 16

250000287

Unavailable

22

STORAGE COVER SUB-ASS'Y - Call your local BRP dealership

269501552

Unavailable

23

ACCESS BOARD - Call your local BRP dealership

269501610

Unavailable

24

Tuflok Plastic Rivet

293150230

Unavailable

25

Hex. Screw 10-14 X 7/8”

211000023

Unavailable

26

Socket Head Screw M6 X 16, Scotch Grip

205561660

Unavailable

27

Flat Washer M6, Stainless

234062600

Unavailable

28

Strap

269502417

Unavailable

29

Rubber Buffer

293830119

Unavailable

30

Hex. Screw 10-14 X 7/8”

211000023

Unavailable

31

RH GRILL ASS'Y - Call your local BRP dealership | Includes 31 to 32

269501614

Unavailable

32

Black, Dart

293730016

Unavailable

33

LH GRILL ASS'Y - Call your local BRP dealership | Includes 33 to 34

269501615

Unavailable

34

Black, Dart

293730016

Unavailable

35

Flange Torx Screw K40 X 16

250000287

Unavailable

36

Latch Ass'y

269700109

Unavailable

37

Latch Ass'y

269700109

Unavailable

38

Latch Ass'y

269700109

Unavailable

39

Latch Spring

269700017

$7.27

40

Hex. Screw M6 X 30

207063060

Unavailable

41

Stainless Flat Washer M6

234061600

$0.25

42

Housing Nut M6 | Included 550f to 550f2

269502408

Unavailable

43

SHOCK BASE - Call your local BRP dealership

269501553

Unavailable

44

Shock Ass'y | Includes 44 to 46

269501555

Unavailable

45

BELLOW - Call your local BRP dealership

269501557

Unavailable

46

Tie Wrap 94 mm | 4X4

293750001

$0.83

47

GROMMET - Call your local BRP dealership

293720078

Unavailable

48

Tie-Rap 180 mm

414115200

$0.09

49

PIVOT SUPPORT - Call your local BRP dealership

269501639

Unavailable

50

Hex. Screw M6 X 30

207163060

Unavailable

51

Flat Washer M6, Stainless

234062600

Unavailable

52

Elastic Stop Nut M6, Brass

232561200

Unavailable

53

Hex. Forming Screw M6 X 20

207162060

Unavailable

54

Elastic Stop Nut M6, Brass

232561200

Unavailable

55

Flat Washer M6, Stainless

234062600

Unavailable

56

Plastite Hex. Screw M6.8 X 35

243163560

Unavailable

57

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

58

Stainless Flat Washer M6

234061600

$0.25

59

Elastic Stop Nut M6, Brass

232561200

Unavailable

60

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

61

HEX. SPECIAL SCREW M6 X 25 - Call your local BRP dealership

211000022

Unavailable

62

Stainless Flat Washer M6

234061600

$0.25

63

Elastic Stop Nut M6, Brass

232561200

Unavailable

64

FRONT ARM - Call your local BRP dealership

269501482

Unavailable

65

Hex. Screw M6 X 100

230060060

Unavailable

66

Loctite 243, 10 ml

293800060

$20.77

67

REAR ARM - Call your local BRP dealership

269501481

Unavailable

68

Hex. Screw M6 X 150

230065060

Unavailable

69

Loctite 271, 10 ml

293800005

Unavailable

70

Sleeve

269500706

Unavailable
