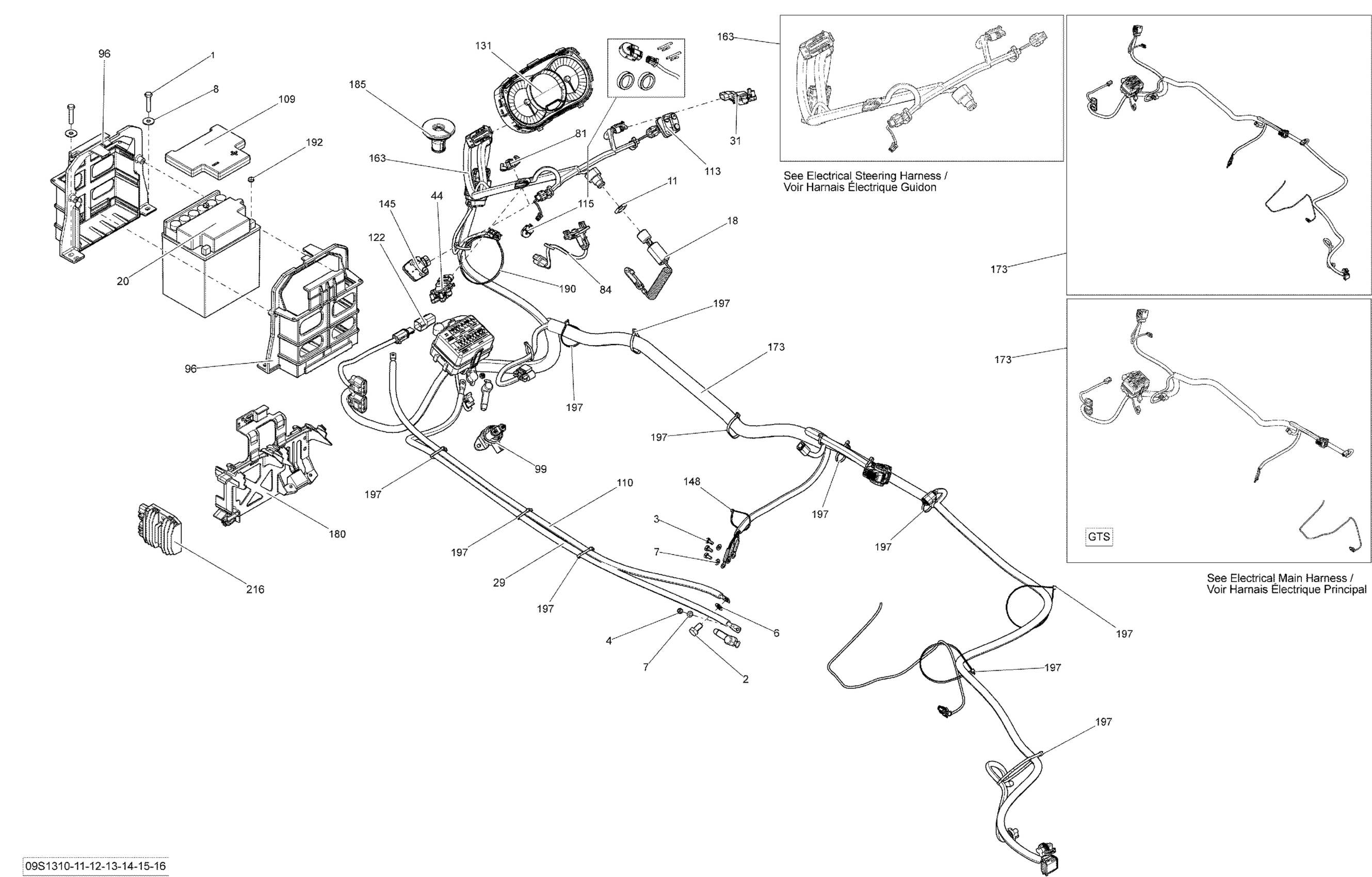

Sea-doo WAKE 155, 2013 Electrical System Diagram

Hex. Screw M8 X 40

207184060

$2.19

Hex. Screw M10 X 20, Scotch Grip

207302060

$4.09

Hex. Screw M6 X 12, Scotch Grip

207361260

$1.49

Elastic Stop Nut M6, Brass

232561200

$4.19

Flat Washer 10 mm, Stainless

234000600

$1.49

Stainless Flat Washer M6

234061600

$1.49

Flat Washer 8 mm, Stainless

234082600

$2.49

Safety Nut (DESS Switch)

278002963

$3.39

Safety Lanyard, Antitheft

278002483

$79.07

Safety Lanyard, Learning Key

278002484

$74.99

Battery, 30 Amperes

278001882

$171.95

Cable-Starter

278003398

$63.99

Throttle Position Sensor

278002283

$124.99

LH Throttle Sensor

278002284

$119.99

O.T.A.S Actuator

278003537

$42.99

O.T.A.S. Sensor Ass'y

278003009

$109.99

Battery Support

278003306

$20.99

Starter Relay

278003012

$43.99

Foam Pad

278002493

$10.49

Battery Ground Cable

278003270

$41.49

Switch RH Mode/Set

278002602

$126.99

Start/Stop Switch Kit

295501137

$59.49

Diagnostic Connector

278002704

$19.49

Cluster LCD This part replaces 278002718.

278003005

$1,279.99

Switch LH Sport/Eco

278002768

$83.49

Wiring Harness Ass'y

278002950

$459.99

Wiring Harness

278002943

$1,139.99

Support

278003048

$21.99

Cable Grommet

293720092

$13.49

Tie Wrap 368 mm

293750008

$1.49

Battery Bolt Kit

250000282

$7.49

Tie-Rap 180 mm

414115200

$1.49

Tie Rap, 533 mm

293750047

$2.09

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$139.99
