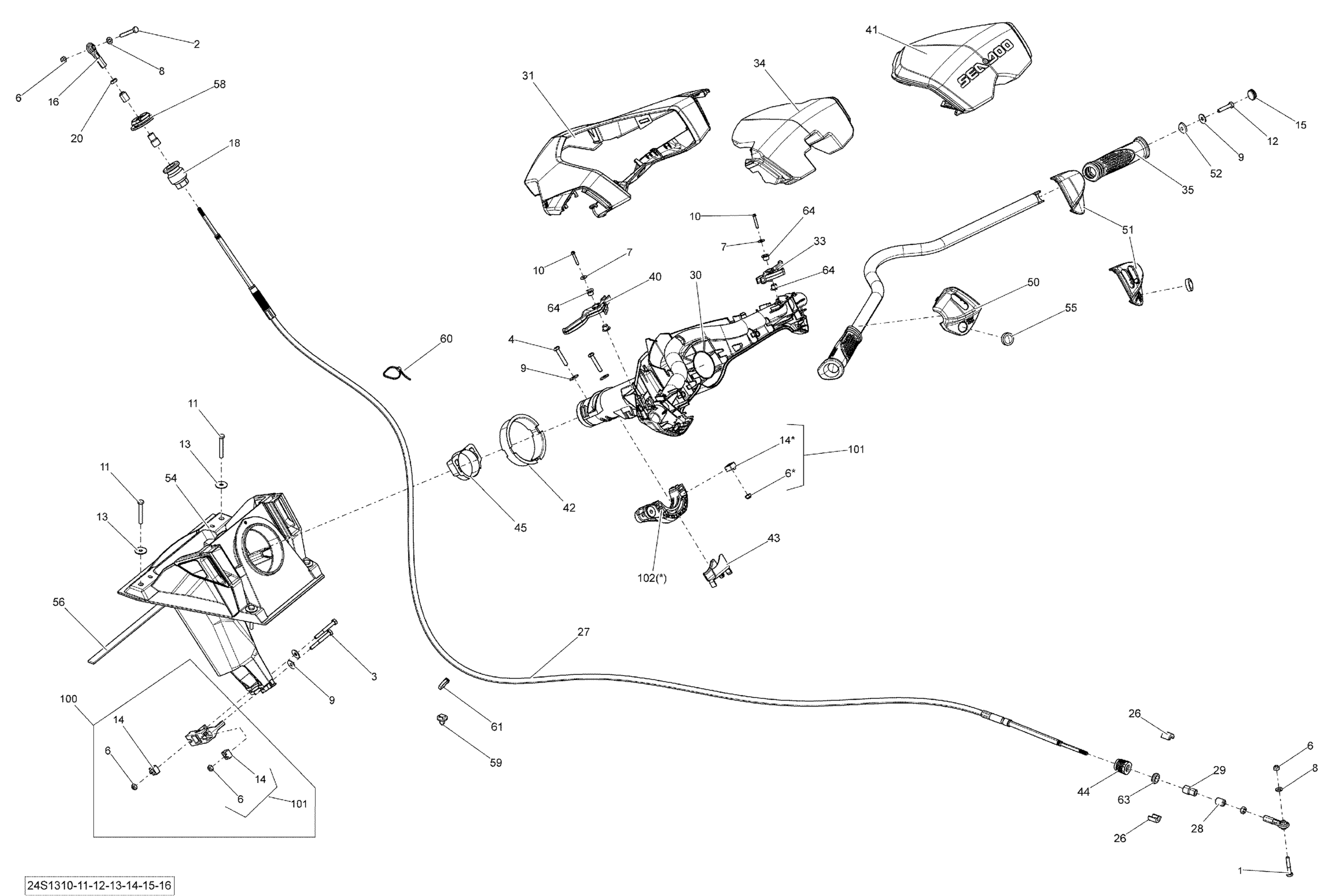

Sea-doo WAKE 155, 2013 Steering Diagram

#

Description
Price

1

Hex. Screw M6 X 35

207063560

Unavailable

2

Hex. Screw M6 X 40

207064060

Unavailable

3

Hex. Screw M6 X 50

207165060

Unavailable

4

Hex. Screw M6 X 35

207163560

Unavailable

5

Hex. Nut 1/4"-28

211100056

Unavailable

6

Elastic Stop Nut M6, Brass

232561200

Unavailable

7

Flat Washer 4 mm, Stainless

234042600

Unavailable

8

Stainless Flat Washer M6

234061600

$0.25

9

Flat Washer M6, Stainless

234062600

Unavailable

10

Hex. Flange Screw K40 X 25

241142560

Unavailable

11

Hex Cap Screw M6X1.0X45 S.Grip

245064560

Unavailable

12

Hex. Screw M6 X 30, Scotch Grip

250000002

Unavailable

13

Flat Washer M6.6 X 22

250200022

Unavailable

14

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

Unavailable

15

Black, Cap

277000203

Unavailable

16

Ball Joint

277000775

Unavailable

18

Ajustment Knob

277000782

Unavailable

26

Half Ring

277001527

Unavailable

27

Steering Cable Ass'y | Includes 540 TO 540d

277001578

Unavailable

28

Wiper Rod

277001582

Unavailable

29

End Piece

277001583

Unavailable

30

Steering Column

277001963

Unavailable

31

Steering Cover | IBR

277001969

Unavailable

33

Throttle Handle

277001944

Unavailable

34

TOP FOAM - Call your local BRP dealership

277001621

Unavailable

35

Handlebar Grip

277002286

Unavailable

40

Reverse Handle

277001945

Unavailable

41

Steering Pad, Viper Red

277001700

$44.82

42

Wear Ring

277001653

Unavailable

43

Spacer

277001654

Unavailable

44

Steering Cable Lock This part replaces 277000784.

277001729

Unavailable

45

Wear Ring

277002318

Unavailable

50

Housing Cover LH

277001860

Unavailable

51

Housing Cover RH

277001625

Unavailable

52

Insert Grip Handle

277001863

Unavailable

54

Support Ass'y | Includes 710 TO 710e

277001971

Unavailable

55

Grey Knob Switch

277001888

Unavailable

55

Red, Knob Switch

277001887

Unavailable

56

Gasket, Neoprene 2000Mm Long

219704476

Unavailable

58

Cable Grommet

293720090

Unavailable

59

Mount Dart

293730040

$0.86

60

Tie-Rap 180 mm

414115200

$0.09

61

Tie Wrap 368 mm

293750008

$0.85

63

Rubber Washer

293830063

Unavailable

64

Bushing

293900091

Unavailable

100

Thrust Support Ass'y

277001655

Unavailable

101

Housing Nut M6 | Included 550f to 550f2

269502408

Unavailable

102

Steering Arm Support Ass'y | Includes 460 TO 460c

277001872

Unavailable
