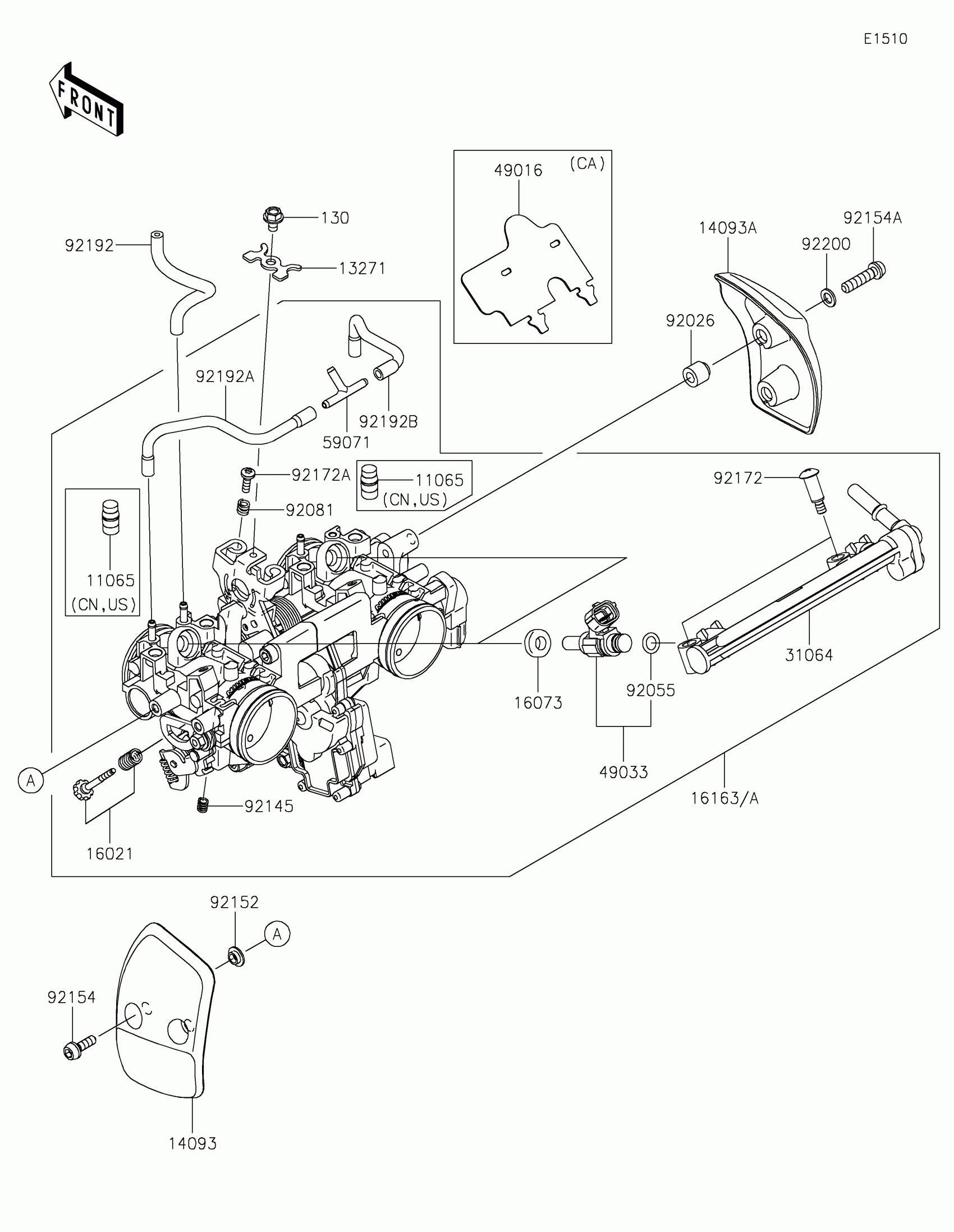

Kawasaki W800 CAFE Throttle Diagram

#

Description
Price

11065

CAP

11065-0018

$4.61

13271

PLATE

13271-0056

$3.29

14093

COVER,LH

14093-0788

$8.80

14093A

COVER,RH

14093-0789

$9.02

16021

SCREW-THROTTLE STOP

16021-0054

$80.06

16073

INSULATOR

16073-0129

$4.53

16163

THROTTLE-ASSY,TTK34

16163-0950

$1,010.38

16163A

THROTTLE-ASSY,TTK34

16163-0997

$1,010.38

31064

PIPE-COMP,FUEL

31064-0591

$92.72

49016

COVER-SEAL

49016-0674

$2.10

49033

NOZZLE-INJECTION

49033-0571

$135.75

59071

JOINT

59071-0749

$4.68

92026

SPACER

92026-0869

$10.39

92055

RING-O,INJECTION NOZZLE

92055-0124

$2.09

92081

SPRING

92081-1620

$3.78

92145

SPRING

92145-0816

$5.71

92152

COLLAR

92152-2599

$9.53

92154

BOLT,SOCKET,5X16

92154-1449

$1.10

92154A

BOLT,SOCKET,6X25

92154-1457

$1.32

92172

SCREW,PIPE INJECTION

92172-0064

$1.98

92172A

SCREW

92172-0505

$11.49

92192

TUBE,3X7X110

92192-0931

$1.64

92192A

TUBE,3X6X138

92192-1783

$68.15

92192B

TUBE,3X6X101

92192-1784

$68.15

92200

WASHER,6.5X11X1.2

92200-1964

$2.41

130

BOLT-FLANGED,5X8

130BA0508

$1.53
