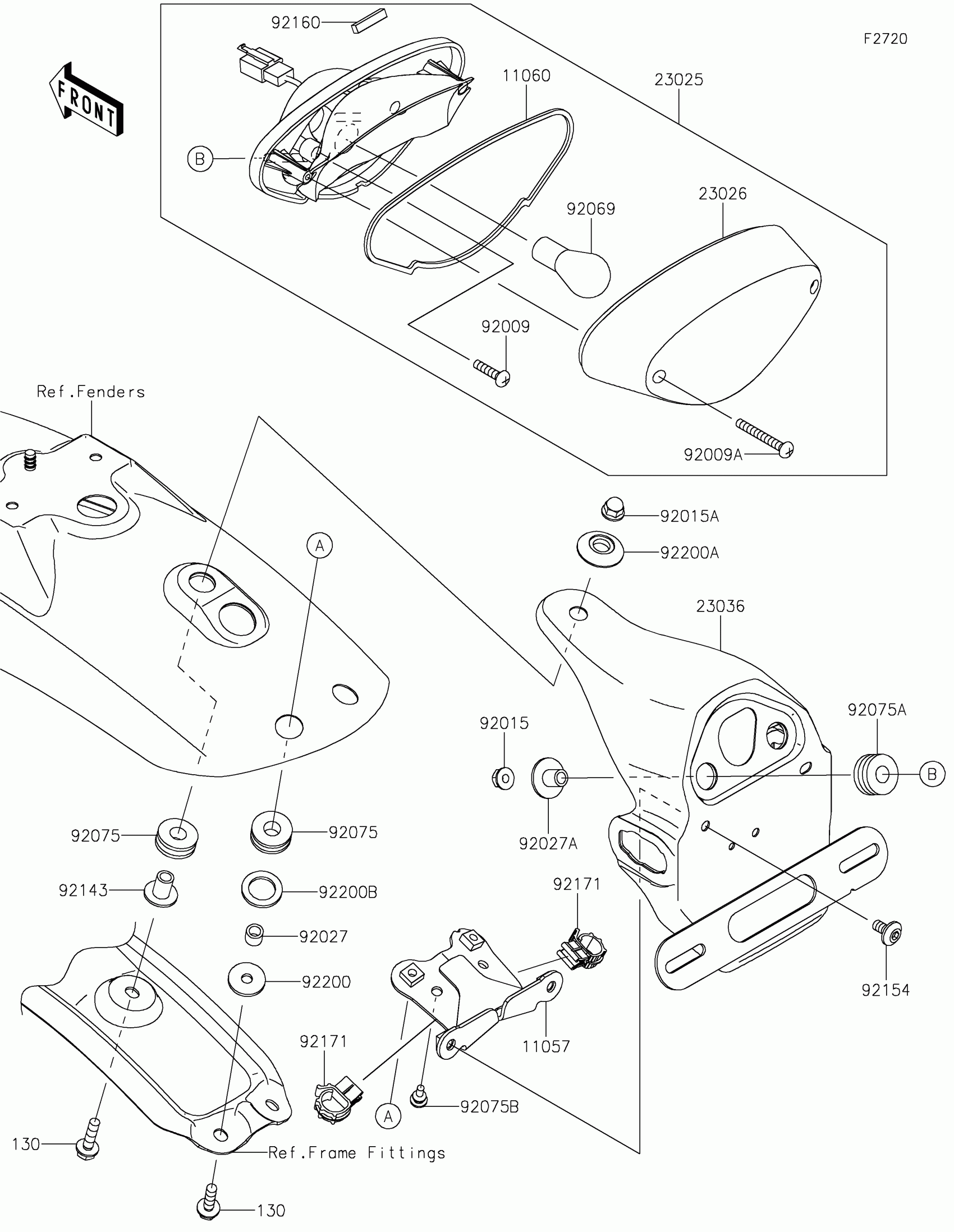

Kawasaki W800 CAFE Taillight(s) Diagram

#

Description
Price

11057

BRACKET

11057-2629

$30.14

11060

GASKET,TAIL LAMP LENS

11060-1901

$5.19

23025

LAMP-TAIL

23025-0388

$300.85

23026

LENS,TAIL LAMP

23026-1222

$46.09

23036

BRACKET-TAIL LAMP

23036-0027

$75.69

92009

SCREW,TAPPING,4X12

92009-1381

$2.42

92009A

SCREW,TAPPING,4X35

92009-1687

$3.68

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92015A

NUT,CAP,6MM

92015-1385

$3.29

92027

COLLAR,6.8X10X8.5

92027-129

$3.81

92027A

COLLAR,L=13.1,BLACK

92027-1450

$4.67

92069

BULB,12V 21/5W

92069-063

$7.09

92075

DAMPER

92075-1185

$4.17

92075A

DAMPER,10X24X12

92075-1690

$3.81

92075B

DAMPER,6X10X15

92075-1808

$1.06

92143

COLLAR,L=15.6

92143-1041

$7.93

92154

BOLT,SOCKET,6X12

92154-2706

$1.32

92160

DAMPER

92160-1998

$3.25

92171

CLAMP,EDGE CLIP

92171-1722

$7.90

92200

WASHER,6.5X22X2.3

92200-0271

$2.71

92200A

WASHER

92200-1153

$9.80

92200B

WASHER,16X24X2.3

92200-2213

$2.37

130

BOLT-FLANGED,6X22

130BA0622

$1.00
