Description

Price

13107

SHAFT,IDLE GEAR

13107-1106

$15.76

13193

CLUTCH-ASSY-ONEWAY

13193-0006

$128.14

13280

HOLDER

13280-0816

$7.47

16085

GEAR,ONEWAY CLUTCH

16085-1318

$161.49

21017

GROMMET,STARTER TERMINAL

21017-017

$7.18

21025

WASHER,9.1X18X0.2

21025-011

Unavailable

21039

BRUSH,CARBON

21039-1060

$85.95

21040

SPRING-BRUSH

21040-1055

$8.24

21163

STARTER-ELECTRIC

21163-1263

$546.12

26006

FUSE,BLADE,30A,GREEN

26006-1006

$4.39

26011

WIRE-LEAD,STARTER MOTOR

26011-1737

$67.45

27010

SWITCH

27010-0784

$114.67

39076

LIMITER,STARTER GEAR

39076-1073

$127.63

92015

NUT,STARTER MOTOR

92015-1476

$3.85

92022

WASHER,9.1X18X0.8

92022-1132

$5.42

92026

SPACER,29.1X47.5X1.2

92026-087

$9.58

92055

RING-O

92055-1276

$7.54

92055A

RING-O,4.5X2.0

92055-1370

$4.17

92055B

RING-O,STARTER MOTOR

92055-1381

$9.58

92150

BOLT,STARTER MOTOR

92150-1913

$9.22

92154

BOLT,FLANGED,6X22

92154-0504

$1.43

223

SCREW-PAN-WS-CROS,5X10

223AA0510

$0.46

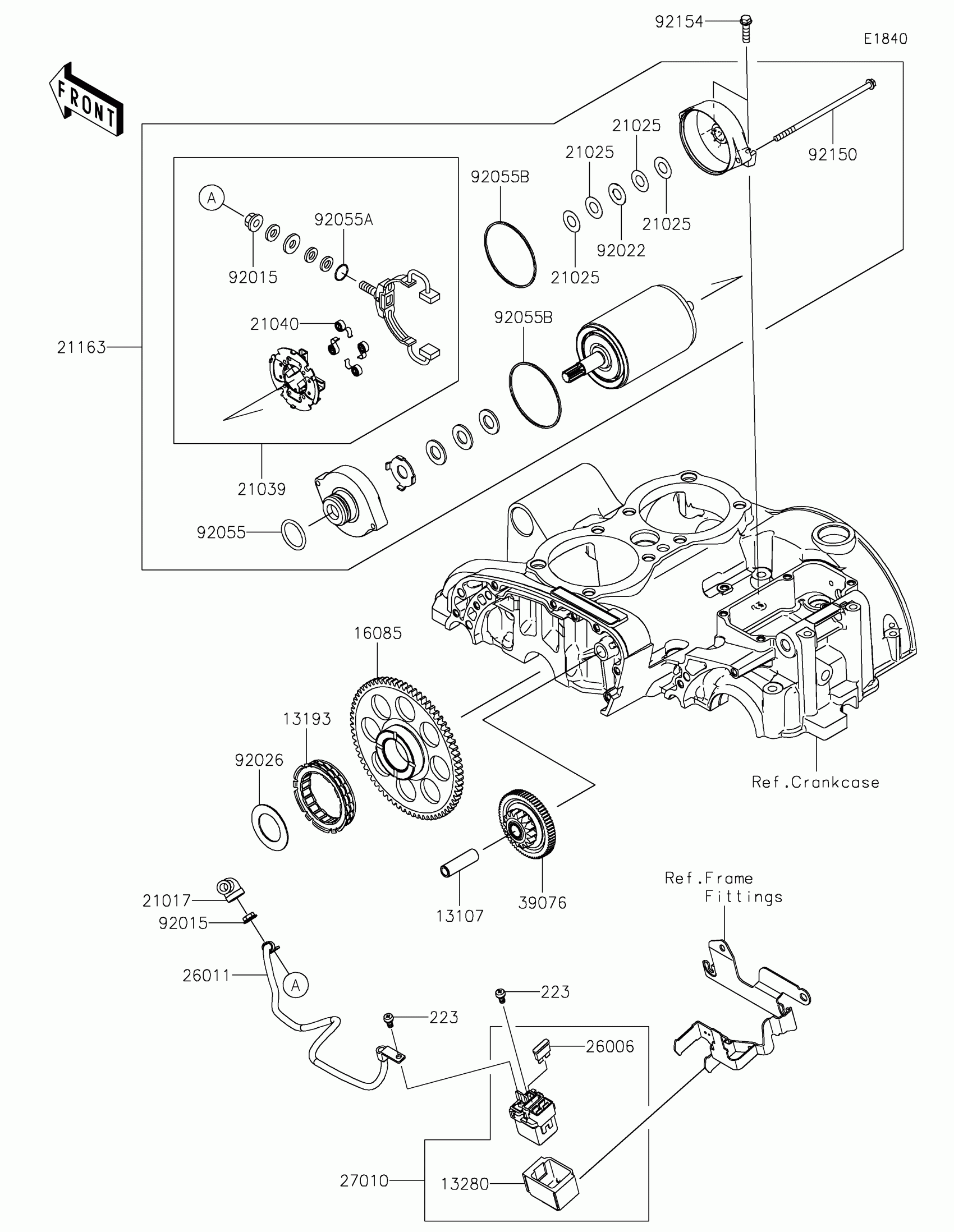

Kawasaki W800 CAFE Starter Motor Diagram
