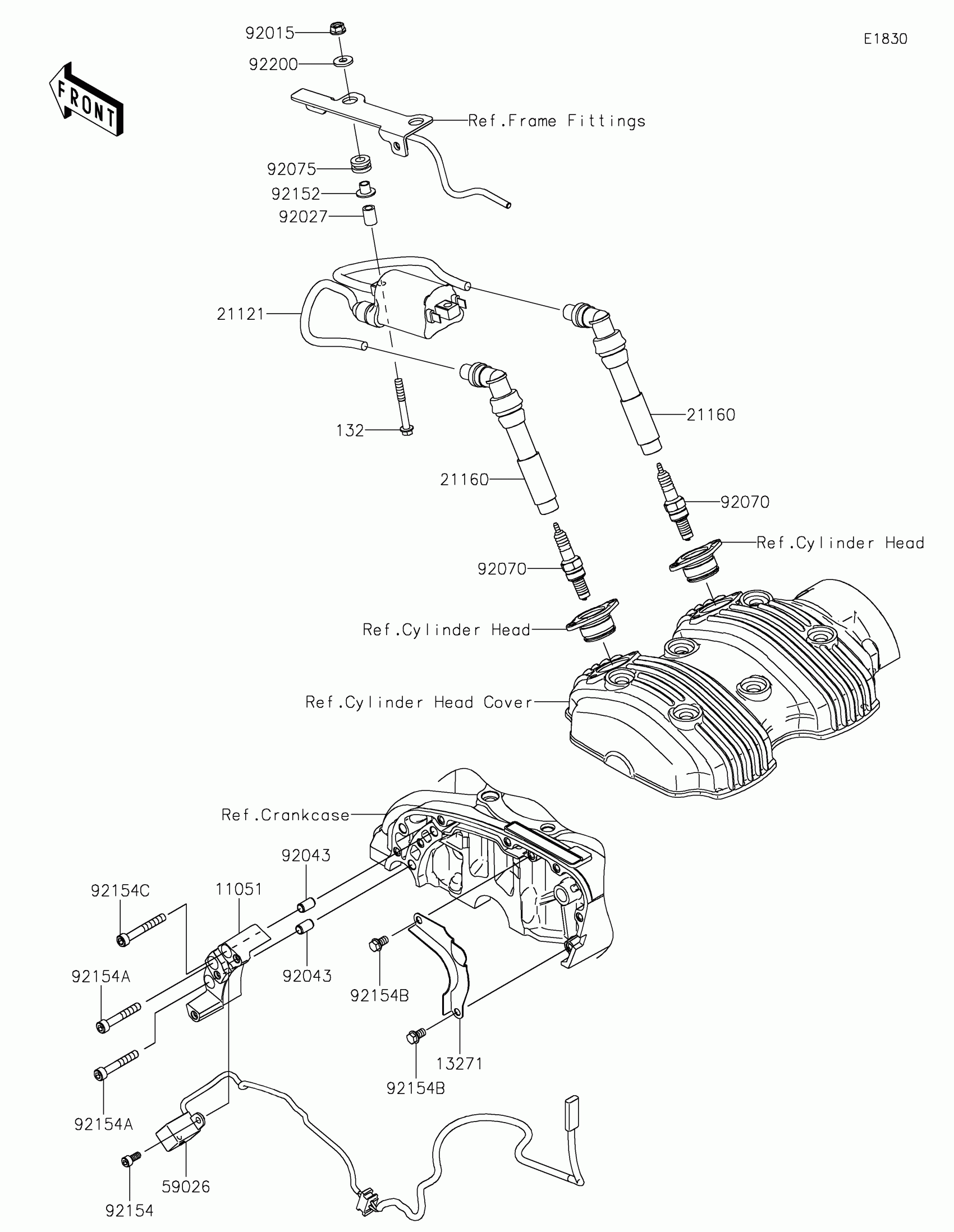

Kawasaki W800 CAFE Ignition System Diagram

Description

Price

11051

BRACKET,PULSING COIL

11051-1213

$33.44

13271

PLATE

13271-1189

$5.25

21121

COIL-IGNITION

21121-1283

$119.12

21160

CAP-ASSY-PLUG

21160-0016

$61.19

59026

COIL-PULSING

59026-0556

$104.68

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92027

COLLAR,6.3X10X14

92027-1453

$4.42

92043

PIN,6.2X8X14

92043-1263

$0.46

92070

PLUG-SPARK,CR8E(NGK)

92070-0019

$6.18

92075

DAMPER

92075-1912

$5.07

92152

COLLAR,6.3X8.3X9.2

92152-0237

$4.27

92154

BOLT,SOCKET,5X12

92154-0503

$1.44

92154A

BOLT,SOCKET,6X40

92154-0505

$1.44

92154B

BOLT,FLANGED,6X10

92154-0507

$1.44

92154C

BOLT,SOCKET,6X45

92154-0508

$2.19

92200

WASHER,6.5X16X2

92200-0312

$0.97

132

BOLT-FLANGED-SMALL,6X45

132BB0645

$4.24
