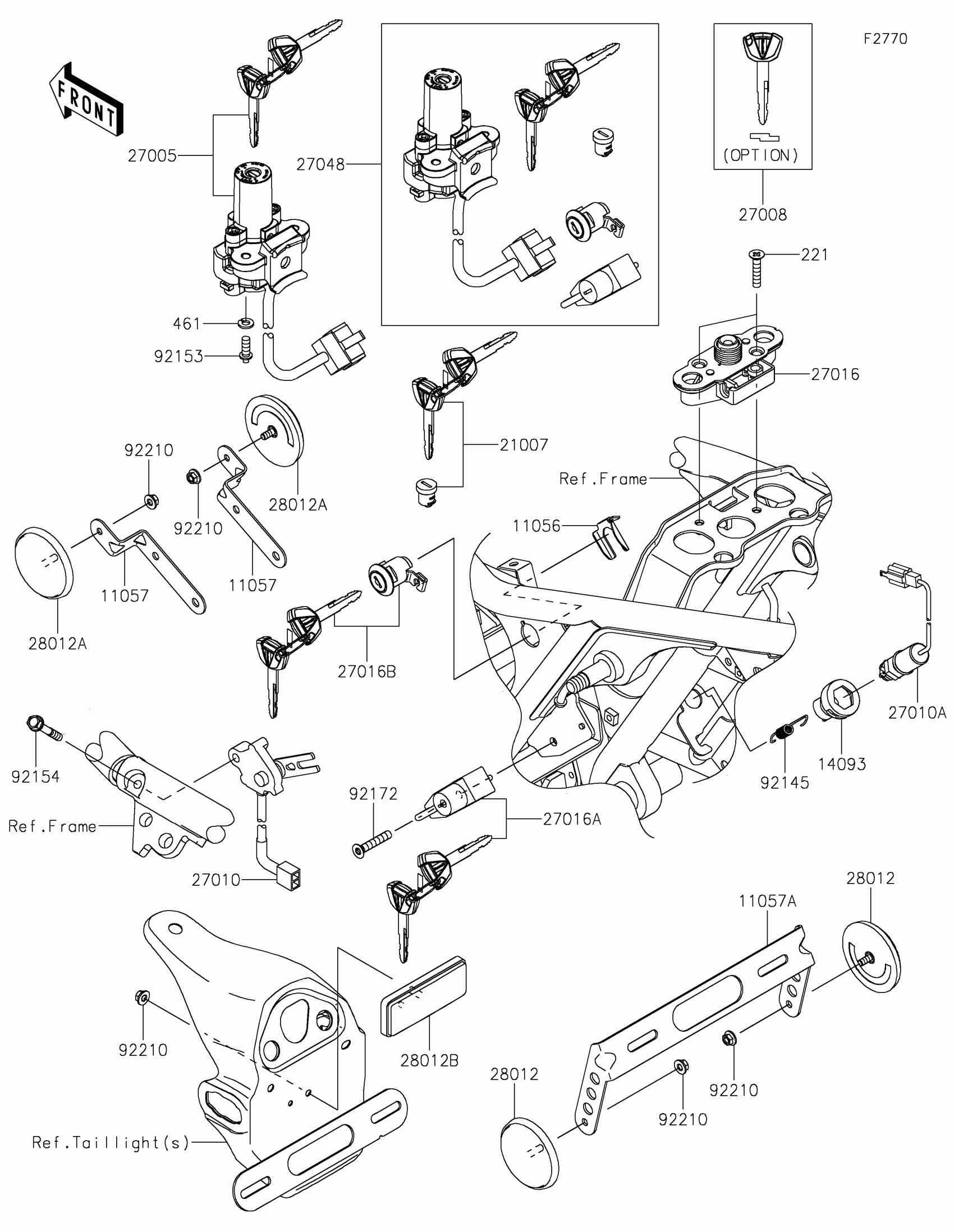

Kawasaki W800 CAFE Ignition Switch/Locks/Reflectors Diagram

Description

Price

11056

BRACKET

11056-1084

$12.85

11057

BRACKET,FR REFLECTOR

11057-1989

$1.03

11057A

BRACKET,RR REFLECTOR

11057-2762

$1.69

14093

COVER,BRAKE SW.

14093-0666

$7.27

21007

ROTOR,LOCK,TANK CAP

21007-5086

$80.38

27005

SWITCH-ASSY-IGNITION

27005-0678

$174.87

27008

KEY-LOCK,BLANK

27008-0648

$19.64

27010

SWITCH,SIDE STAND

27010-0856

$61.98

27010A

SWITCH,BRAKE

27010-0899

$32.61

27016

LOCK-ASSY,SEAT STRIKER

27016-1098

$86.38

27016A

LOCK-ASSY,HELMET

27016-5411

$71.26

27016B

LOCK-ASSY,SEAT

27016-5412

$67.31

27048

SWITCH-ASSY

27048-5202

$547.05

28012

REFLECTOR-REFLEX

28012-0002

$19.59

28012A

REFLECTOR-REFLEX

28012-0008

$24.88

28012B

REFLECTOR-REFLEX

28012-1077

$21.76

92145

SPRING,BRAKE LAMP SWITCH

92145-0761

$3.58

92153

BOLT,TORX,6X16

92153-0967

$1.85

92154

BOLT,FLANGED,6X40

92154-0859

$4.95

92172

SCREW,HEXLOBE,6X35

92172-0835

$2.44

92210

NUT,FLANGED,5MM

92210-0007

$1.90

221

SCREW-CSK-CROS,6X30

221AB0630

$1.54

461

WASHER-SPRING,6MM

461DA0600

$0.66
