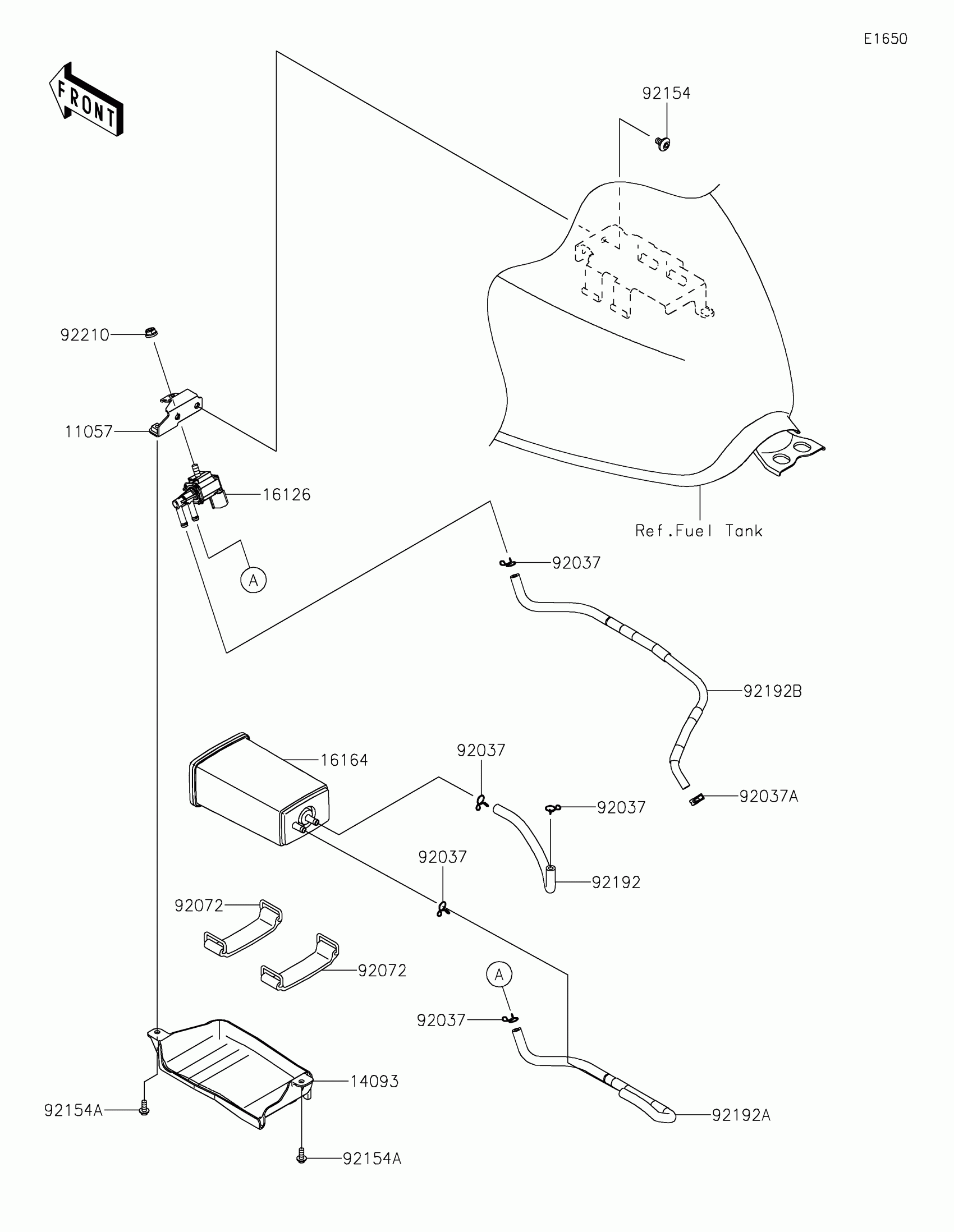

Kawasaki W800 CAFE Fuel Evaporative System(CA) Diagram

Description

Price

11057

BRACKET,CANISTER

11057-2071

$14.20

14093

COVER,CANISTER

14093-0791

$14.93

16126

VALVE,SOLENOID

16126-0705

$109.25

16164

CANISTER

16164-0012

$152.89

92037

CLAMP

92037-1712

$3.81

92037A

CLAMP,7.8MM

92037-2116

$1.24

92072

BAND,L=90

92072-045

$14.14

92154

BOLT,SOCKET,6X10

92154-1834

$1.98

92154A

BOLT,SOCKET,5X12,MEC

92154-2678

$3.15

92192

TUBE,TANK-CANISTER

92192-1932

$17.44

92192A

TUBE,CANISTER-VALVE

92192-1933

$77.23

92192B

TUBE,VALVE-THROTTLE

92192-1934

$80.46

92210

NUT,LOCK,FLANGED,6MM

92210-0303

$1.04
