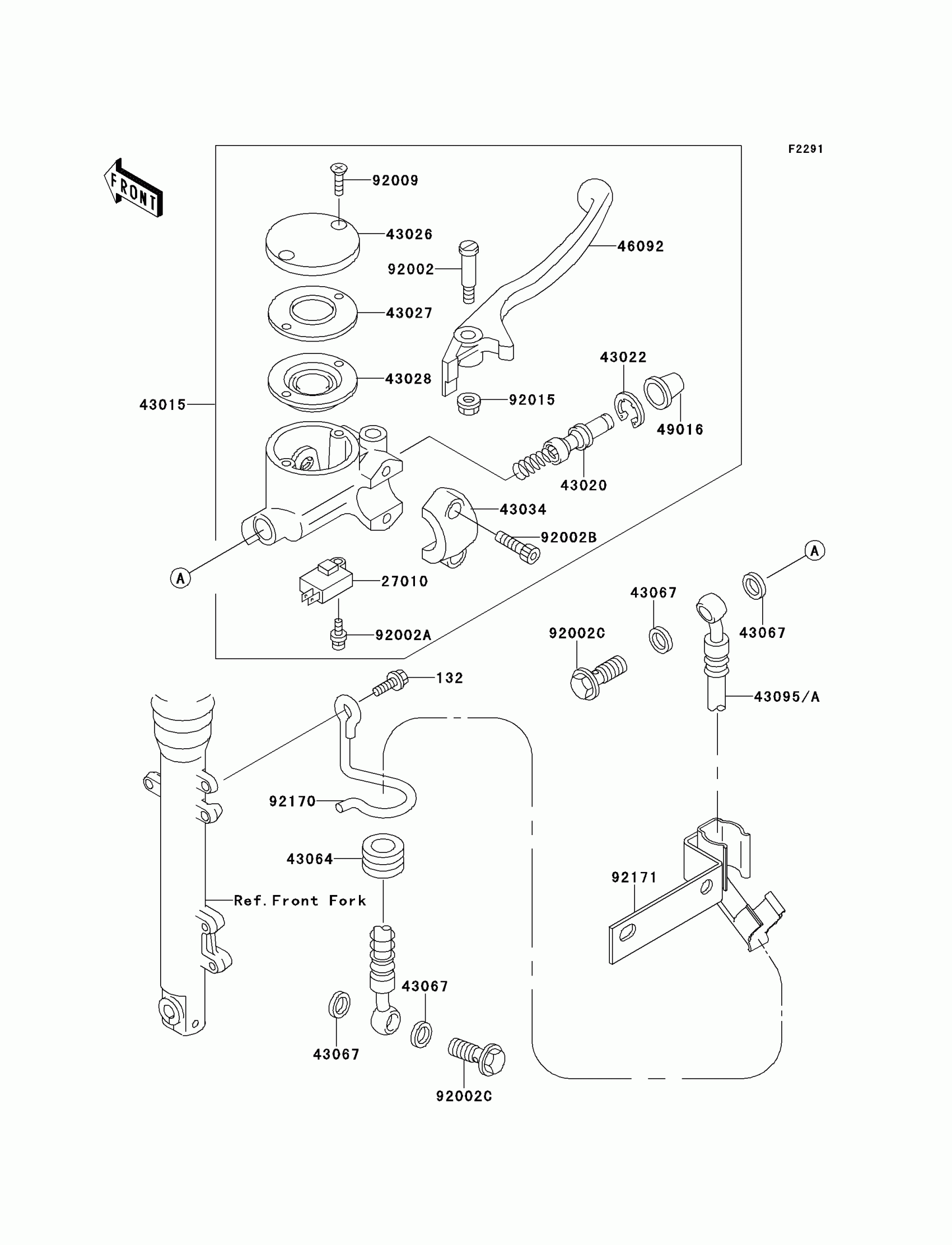

Kawasaki W650 (Canada Only) Front Master Cylinder Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132E0612

Unavailable

27010

SWITCH,BRAKE

27010-1170

$32.62

43015

CYLINDER-ASSY-MASTER,FR

43015-1643

$432.98

43020

PISTON-COMP-BRAKE

43020-1098

$52.23

43022

STOPPER-BRAKE,PISTON

43022-1010

$3.54

43026

CAP-BRAKE

43026-1084

Unavailable

43027

PLATE-DIAPHRAGM

43027-1058

$5.02

43028

DIAPHRAGM

43028-1087

$14.34

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1156

$39.46

43064

GROMMET,HOSE CLAMP

43064-007

$4.18

43067

WASHER,10.5X15X1.5

43067-001

$1.57

43095A

HOSE-BRAKE,FR

43095-1213

Unavailable

46092

LEVER-GRIP,FRONT BRAKE

46092-1207

$18.61

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$6.62

92002

BOLT,LEVER SET,BLACK

92002-1322

$8.91

92002A

BOLT,SCREW,4X12

92002-1323

$2.99

92002B

BOLT,SOCKET,6X20,BLACK

92002-1324

$7.54

92002C

BOLT,OIL,L=23

92002-1907

$4.15

92009

SCREW,4MM

92009-1458

$2.23

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$4.18

92170

CLAMP,RH,HOSE

92170-1510

Unavailable

92171

CLAMP

92171-1143

$12.37
