2019 Kawasaki W175 SE Suspension/shock Absorber Diagram

← All diagrams

Find the part on the Suspension/shock Absorber diagram for your 2019 Kawasaki W175 SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

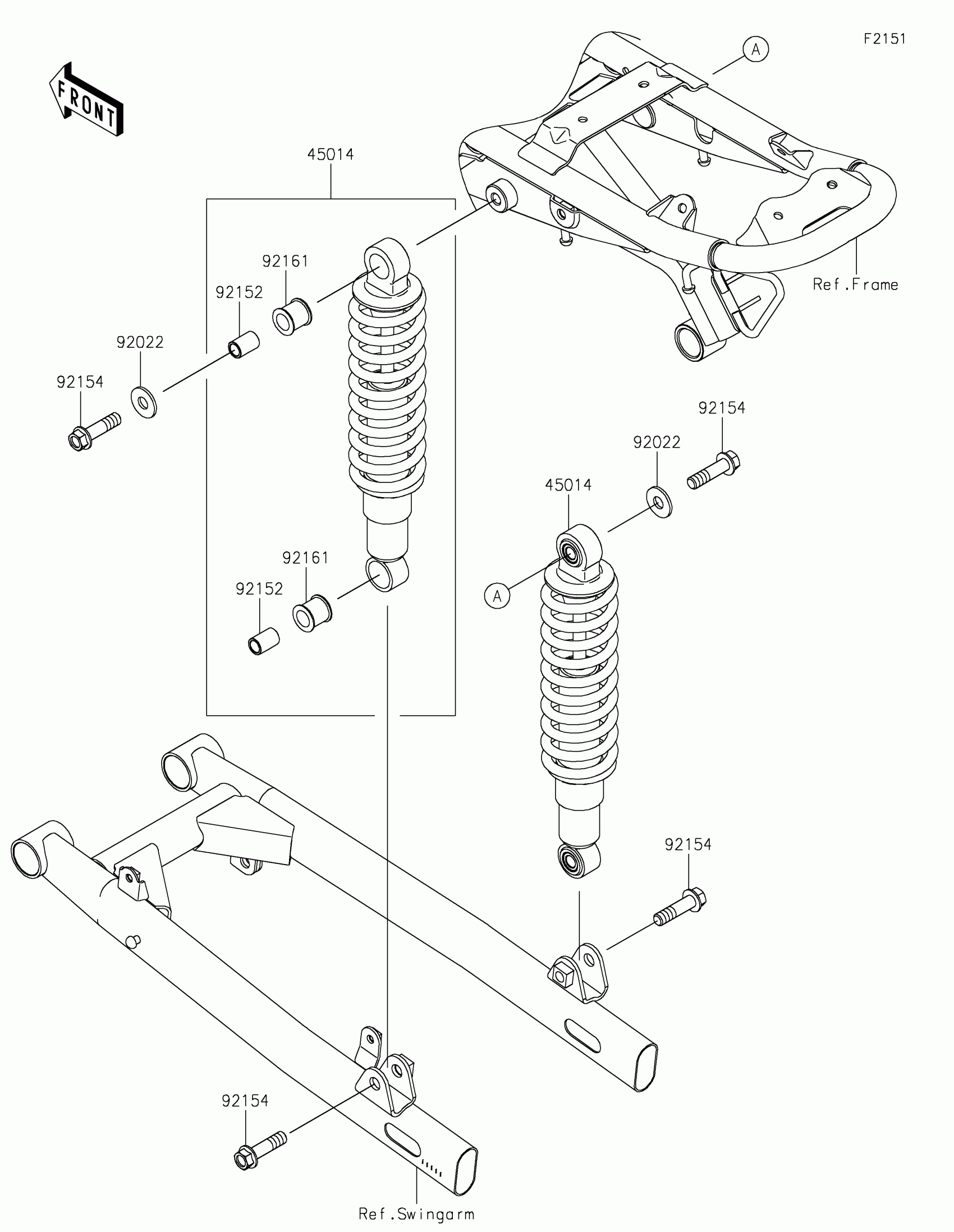

2019 Kawasaki W175 SE Suspension/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

45014

SHOCKABSORBER,BLACK

45014-0604-10

1
Out of stock

92022

WASHER,10.5X26X2.3

92022-044

1
Out of stock

92152

COLLAR

92152-0086

1
Out of stock

92154

BOLT,FLANGED,10X38

92154-2787

1
Out of stock

92161

DAMPER

92161-2076

1
Out of stock
