2019 Kawasaki W175 SE Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2019 Kawasaki W175 SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

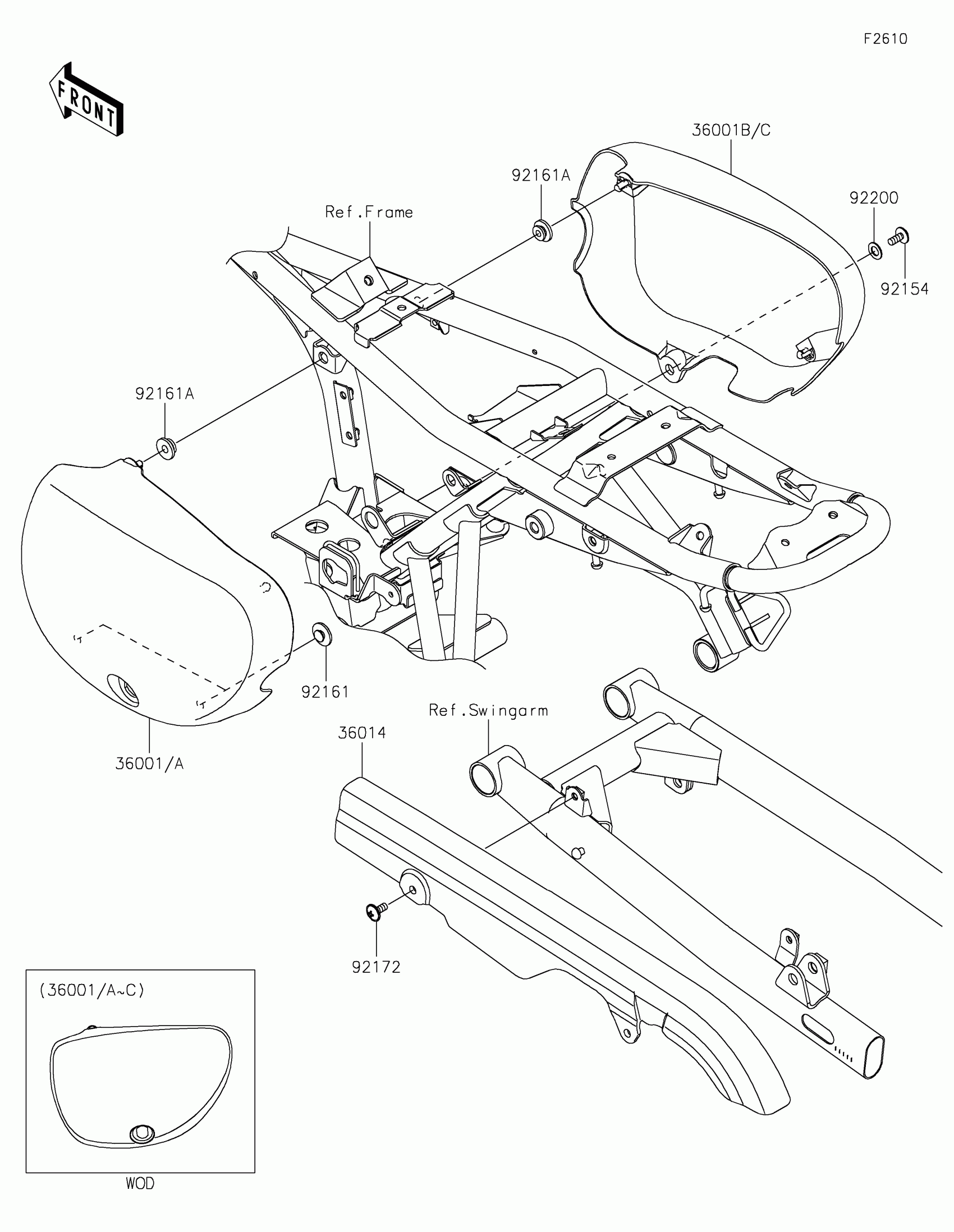

2019 Kawasaki W175 SE Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36001A

COVER-SIDE,LH,EBONY

36001-0654-H8

1
Out of stock

36001C

COVER-SIDE,RH,EBONY

36001-0655-H8

1
Out of stock

36014

CASE-CHAIN

36014-0570

1
Out of stock

92154

BOLT,SOCKET,6X14

92154-1208

1
Out of stock

92161

DAMPER,8X22X10

92161-1685

1

$0.86

In stock

92161A

DAMPER

92161-1810

1

$1.10

In stock

92172

SCREW,6X14

92172-1197

1
Out of stock

92200

WASHER,9X18X1

92200-1977

1
Out of stock
