2019 Kawasaki W175 SE Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2019 Kawasaki W175 SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

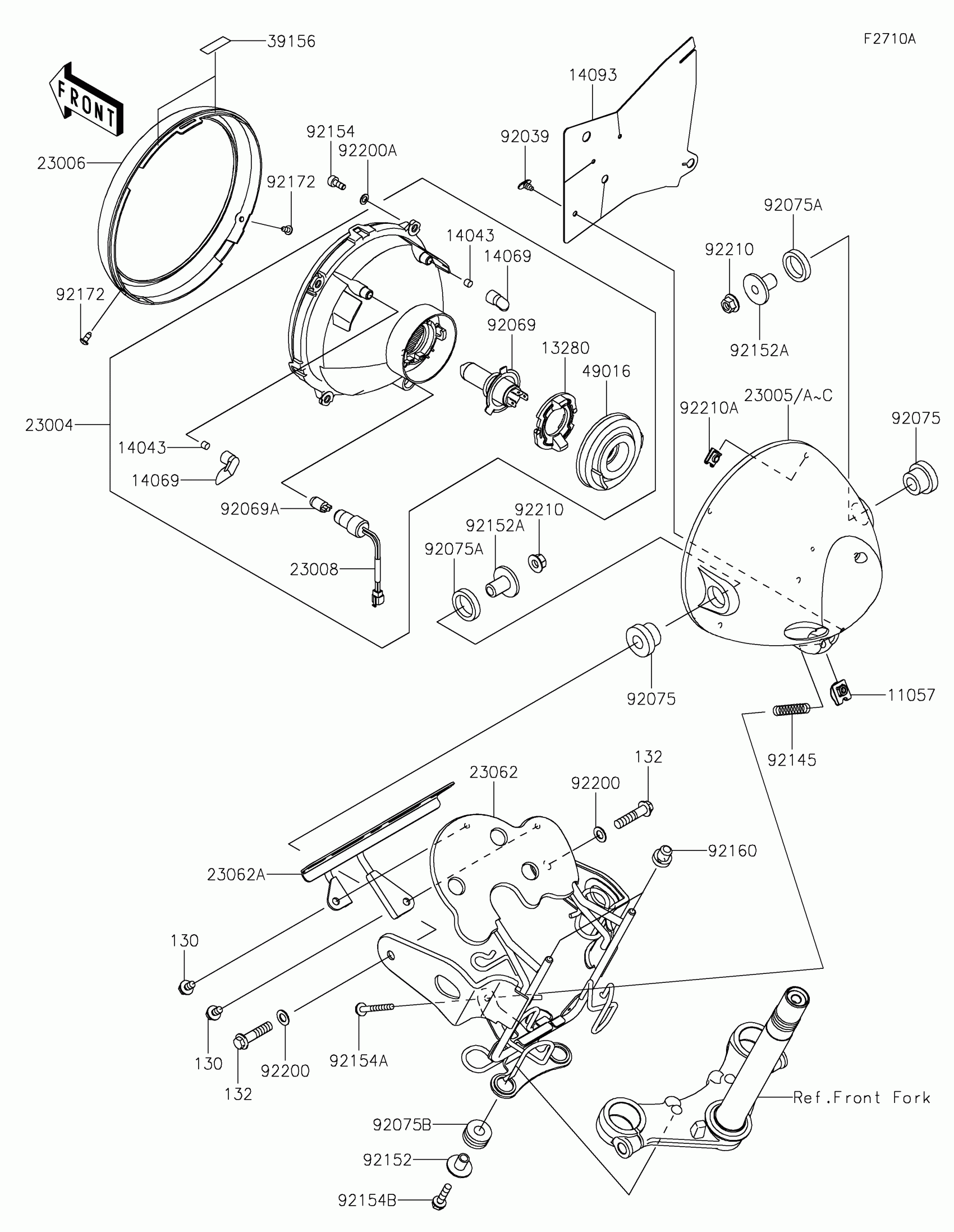

2019 Kawasaki W175 SE Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET

11057-1065

1
Out of stock

13280

HOLDER

13280-0902

1
Out of stock

14043

FILTER

14043-0020

1
Out of stock

14069

BREATHER

14069-0031

1
Out of stock

14093

COVER

14093-0754

1
Out of stock

23004

LAMP-HEAD

23004-0376

1
Out of stock

23005B

BODY-COMP-HEAD LAMP,EBONY

23005-0050-6C

1
Out of stock

23006

RIM-LAMP

23006-0020

1
Out of stock

23008

SOCKET-ASSY,POSITION

23008-0188

1
Out of stock

23062

BRACKET-COMP,LICENSE PLATE

23062-1217

1
Out of stock

23062A

BRACKET-COMP

23062-1253

1
Out of stock

39156

PAD,30X10X0.21

39156-2352

1
Out of stock

49016

COVER-SEAL

49016-0649

1
Out of stock

92039

RIVET

92039-0792

1
Out of stock

92069

BULB,12V 60/55W,H4

92069-0097

1
Out of stock

92069A

BULB,12V 5W

92069-0098

1
Out of stock

92075

DAMPER,HEAD LAMP FITTING

92075-1109

1
Out of stock

92075A

DAMPER,HEAD LAMP FITTING

92075-1110

1
Out of stock

92075B

DAMPER,10X24X12

92075-1690

1
Out of stock

92145

SPRING

92145-1788

1
Out of stock

92152

COLLAR

92152-0697

1
Out of stock

92152A

COLLAR

92152-2578

1
Out of stock

92154

BOLT,SOCKET,5X14

92154-2772

1
Out of stock

92154A

BOLT,FLANGED,5X45

92154-2773

1
Out of stock

92154B

BOLT,FLANGED,6X25

92154-2774

1
Out of stock

92160

DAMPER

92160-1303

1
Out of stock

92172

SCREW,CROS,4X9.5

92172-1208

1
Out of stock

92200

WASHER,8.2X15X1

92200-0742

1
Out of stock

92200A

WASHER,5.8X10X0.8

92200-1983

1
Out of stock

92210

NUT,8MM

92210-0773

1
Out of stock

92210A

NUT,CLIP,5MM

92210-1666

1
Out of stock

130

BOLT-FLANGED,6X10

130BB0610

1

$2.05

In stock

132

1

$3.78

In stock
