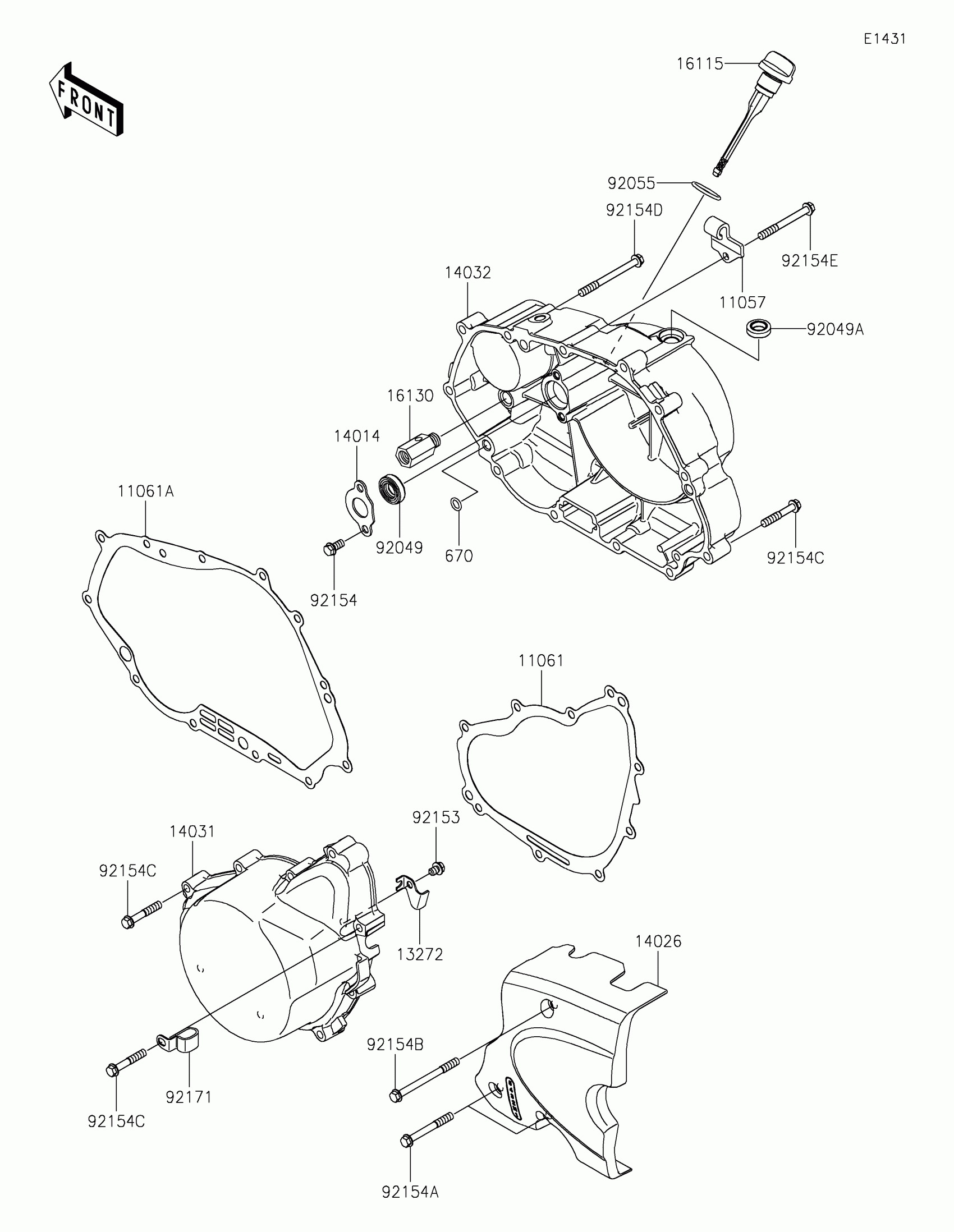

Kawasaki W175 SE Engine Cover(s) Diagram

#

Description
Price

11057

BRACKET,CABLE

11057-0048

$7.46

11061

GASKET,GENERATOR COVER

11061-1323

$16.24

11061A

GASKET,CLUTH COVER

11061-1324

$19.92

13272

PLATE

13272-2442

$1.66

14014

PLATE-POSITION

14014-1129

$2.19

14026

COVER-CHAIN

14026-0136

$68.68

14031

COVER-GENERATOR

14031-0616

$150.09

14032

COVER-CLUTCH

14032-0637

$244.47

16115

CAP-OIL FILLER

16115-0037

$9.12

16130

VALVE-ASSY-RELIEF

16130-1063

$11.37

92049

SEAL-OIL

92049-1191

$22.97

92049A

SEAL-OIL

92049-1560

$7.08

92055

RING-O

92055-0024

$2.03

92153

BOLT,6X8

92153-0528

Unavailable

92154

BOLT,FLANGED,6X12

92154-2753

$2.20

92154A

BOLT,FLANGED,6X50

92154-2763

$3.29

92154B

BOLT,FLANGED,6X70

92154-2764

$3.51

92154C

BOLT,FLANGED,6X35

92154-2765

$3.49

92154D

BOLT,FLANGED,6X65

92154-2766

$3.15

92154E

BOLT,FLANGED,6X55

92154-2767

$3.29

92171

CLAMP

92171-0016

$5.10

670

O RING,8MM

670B1508

$1.00
