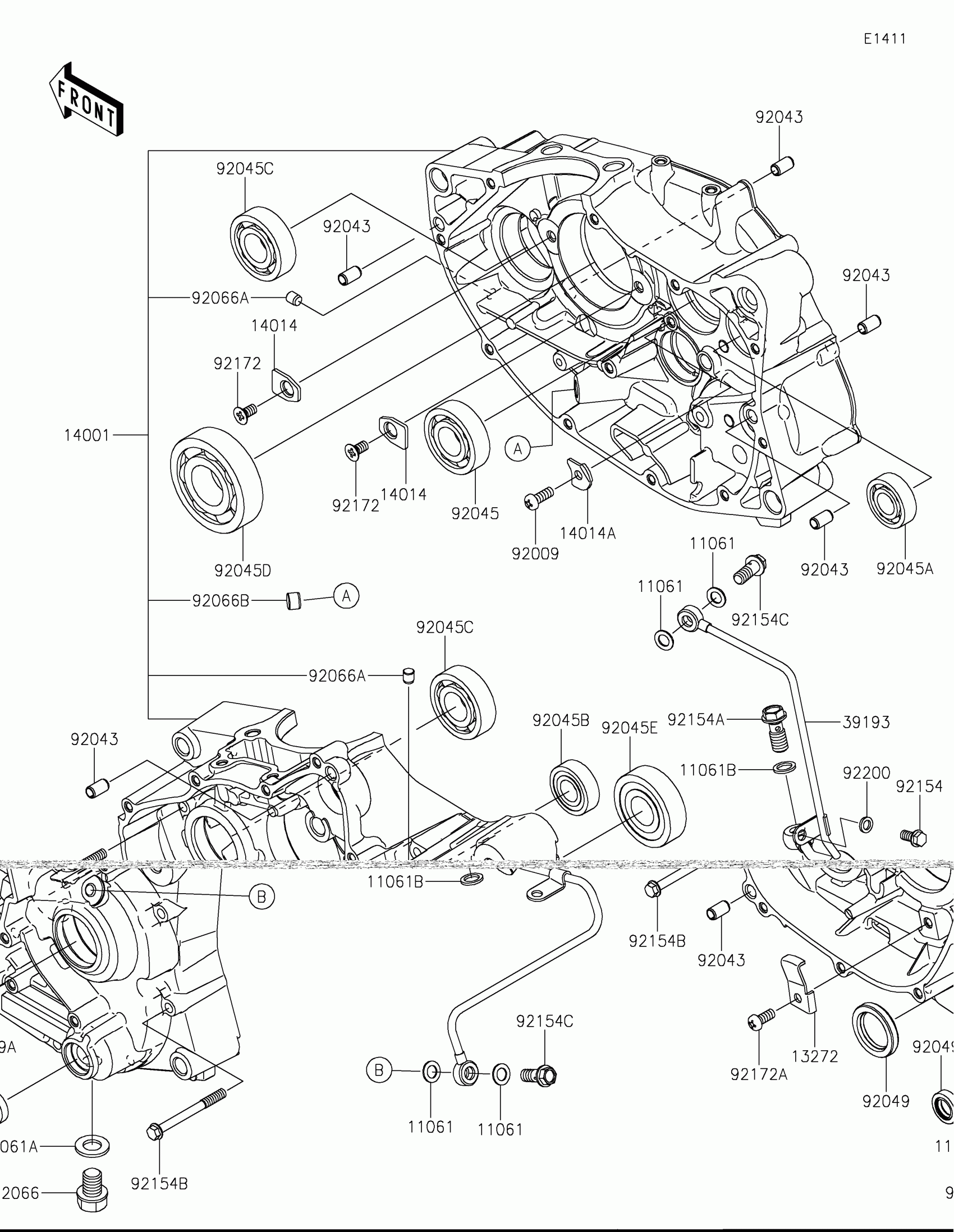

Kawasaki W175 SE Crankcase Diagram

#

Description
Price

11061

GASKET,8.2X13.8X1

11061-1243

$1.27

11061A

GASKET,12X22X2

11061-1244

$2.58

11061B

GASKET,10X14.5X1.5

11061-1254

$5.66

13272

PLATE

13272-1342

$4.42

14001

SET-CRANKCASE

14001-0683

$624.30

14014

PLATE-POSITION

14014-0048

$4.66

14014A

PLATE-POSITION,DRUM

14014-1113

$3.15

39193

PIPE-OIL

39193-0584

$95.97

92009

SCREW-PAN-CROS,6X16

92009-1266

$3.85

92043

PIN,6.2X8X14

92043-1263

$0.46

92045

BEARING-BALL,20X47X14

92045-0832

$31.01

92045A

BEARING-BALL,15X35X11

92045-0833

$15.36

92045B

BEARING-BALL,15X35X11

92045-0834

$18.02

92045C

BEARING-BALL,20X47X14

92045-0836

$32.85

92045D

BEARING-BALL,28X68X18

92045-0837

$46.36

92045E

BEARING-BALL,20X52X15

92045-0843

$23.02

92049

SEAL-OIL

92049-0757

$13.51

92049A

SEAL-OIL

92049-1559

$2.71

92066

PLUG,OIL DRAIN,12X15

92066-0768

$4.42

92066A

PLUG,OIL LINE,7.2X8

92066-1012

$4.65

92066B

PLUG,10.5MM

92066-1355

$5.37

92154

BOLT,FLANGED,6X12

92154-2753

$2.20

92154A

BOLT,BANJO,10X23

92154-2761

$13.73

92154B

BOLT,FLANGED,6X60

92154-2762

$3.15

92154C

BOLT,FLANGED,8X20

92154-3754

$5.71

92172

SCREW,6X12

92172-1200

$1.73

92172A

SCREW,6X14

92172-1201

$1.66

92200

WASHER,6.3X10.2X1.6

92200-1982

$3.53
