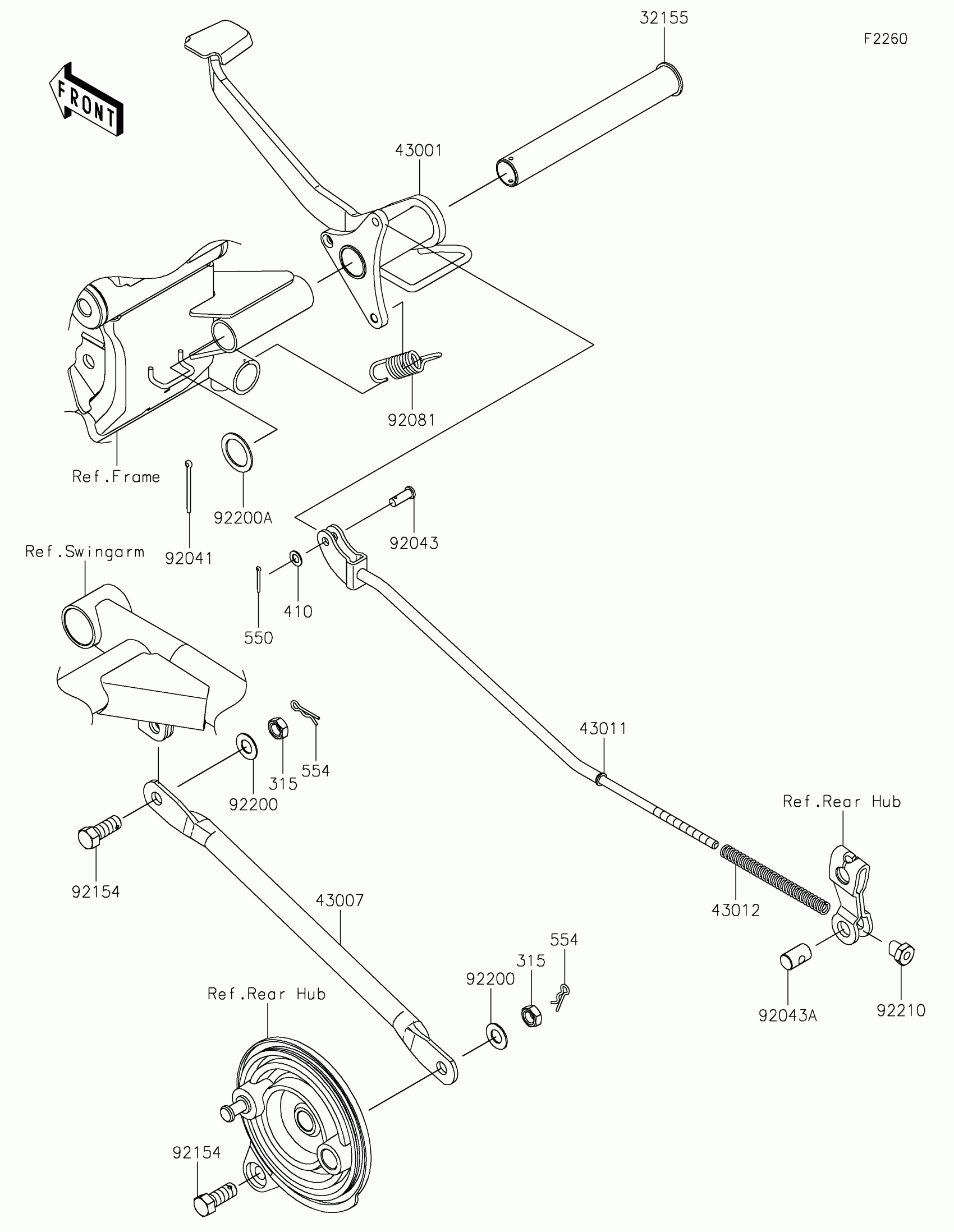

Kawasaki W175 SE Brake Pedal Diagram

Description

Price

32155

PIPE

32155-2929

$25.78

43001

LEVER-BRAKE

43001-0762

$85.90

43007

ROD-TORQUE

43007-0021

$17.14

43011

ROD-BRAKE

43011-0020

$18.36

43012

SPRING,BRAKE ROD

43012-001

$3.54

92041

COTTER,3X35

92041-0010

$1.47

92043

PIN,6X17

92043-064

$3.57

92043A

PIN,12X20

92043-0930

$4.95

92081

SPRING,BRAKE PEDAL

92081-1313

Unavailable

92154

BOLT,10X25

92154-0767

$4.68

92200

WASHER,10.5X20X1.0

92200-0870

$0.83

92200A

WASHER,21.5X30X1.2

92200-1908

$1.83

92210

NUT,6MM

92210-1581

$5.34

315

NUT-HEX-FINE,10MM

315AA1000

$0.54

410

WASHER-PLAIN-SMALL

410AA0600

$1.03

550

PIN-COTTER,2.0X15

550AA2015

$0.90

554

PIN-SNAP

554DA0800

$1.05
