2025 Suzuki VZR1800M4 Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 2025 Suzuki VZR1800M4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

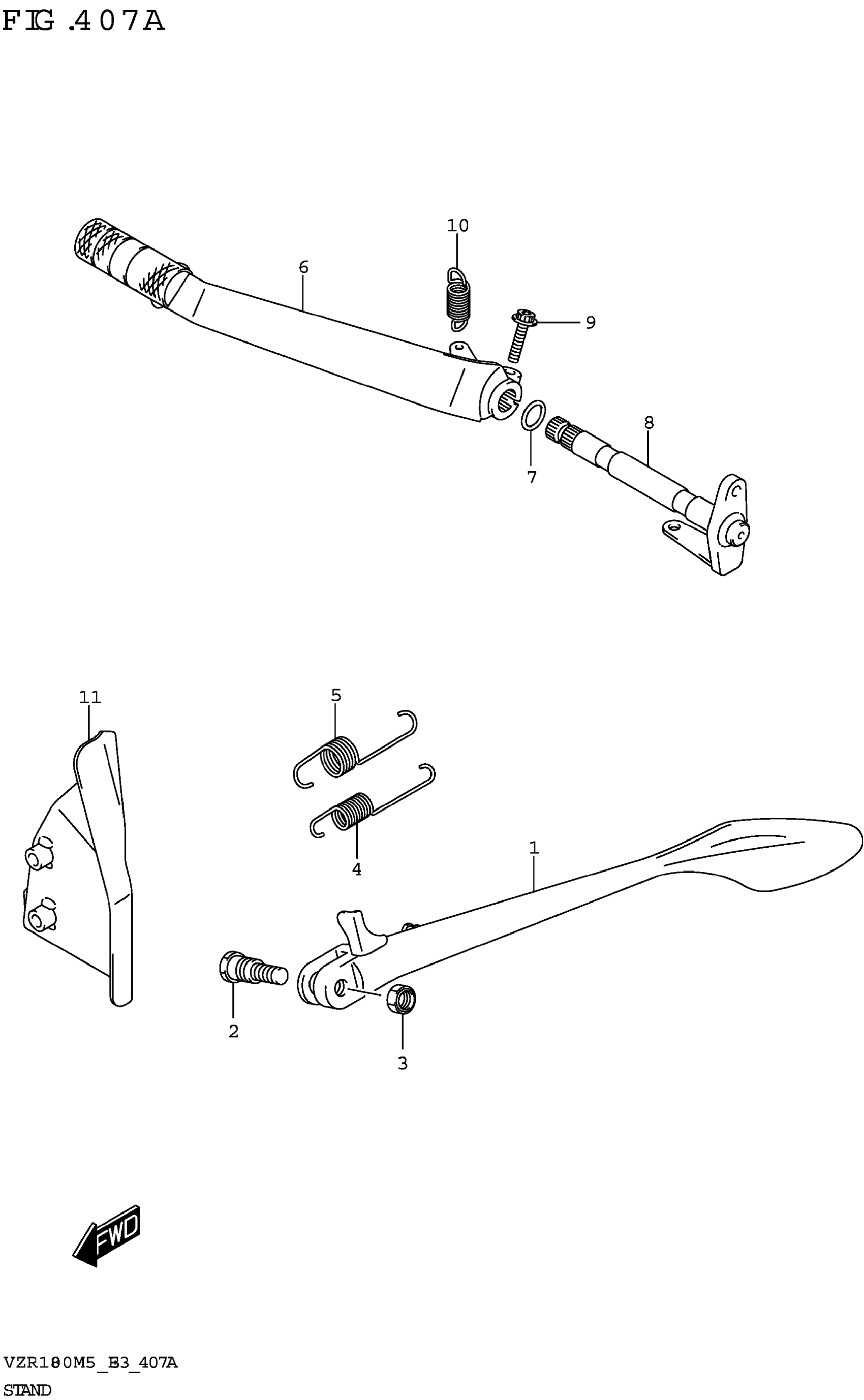

2025 Suzuki VZR1800M4 Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND,PROP

42310-48G00

1

$289.27

In stock

2

BOLT (10X37.5)

09111-10058

1
Out of stock

3

NUT, PROP STAND

42321-03FK0

1
Out of stock

4

SPRING

09443-14069

1
Out of stock

5

SPRING

09443-19012

1

$5.70

In stock

6

PEDAL,BRAKE

43110-48G12

1

$178.93

In stock

7

O RING (D:2.5,ID:13.8)

09280-14011

2
Out of stock

8

ARM,BRAKE ROD

43120-48G10

1

$117.60

In stock

9

BOLT

07120-0625A

1
Out of stock

10

SPRING

09443-11030

1
Out of stock

11

GUARD,RR MASTER CYLINDER

43570-48G00

1
Out of stock
