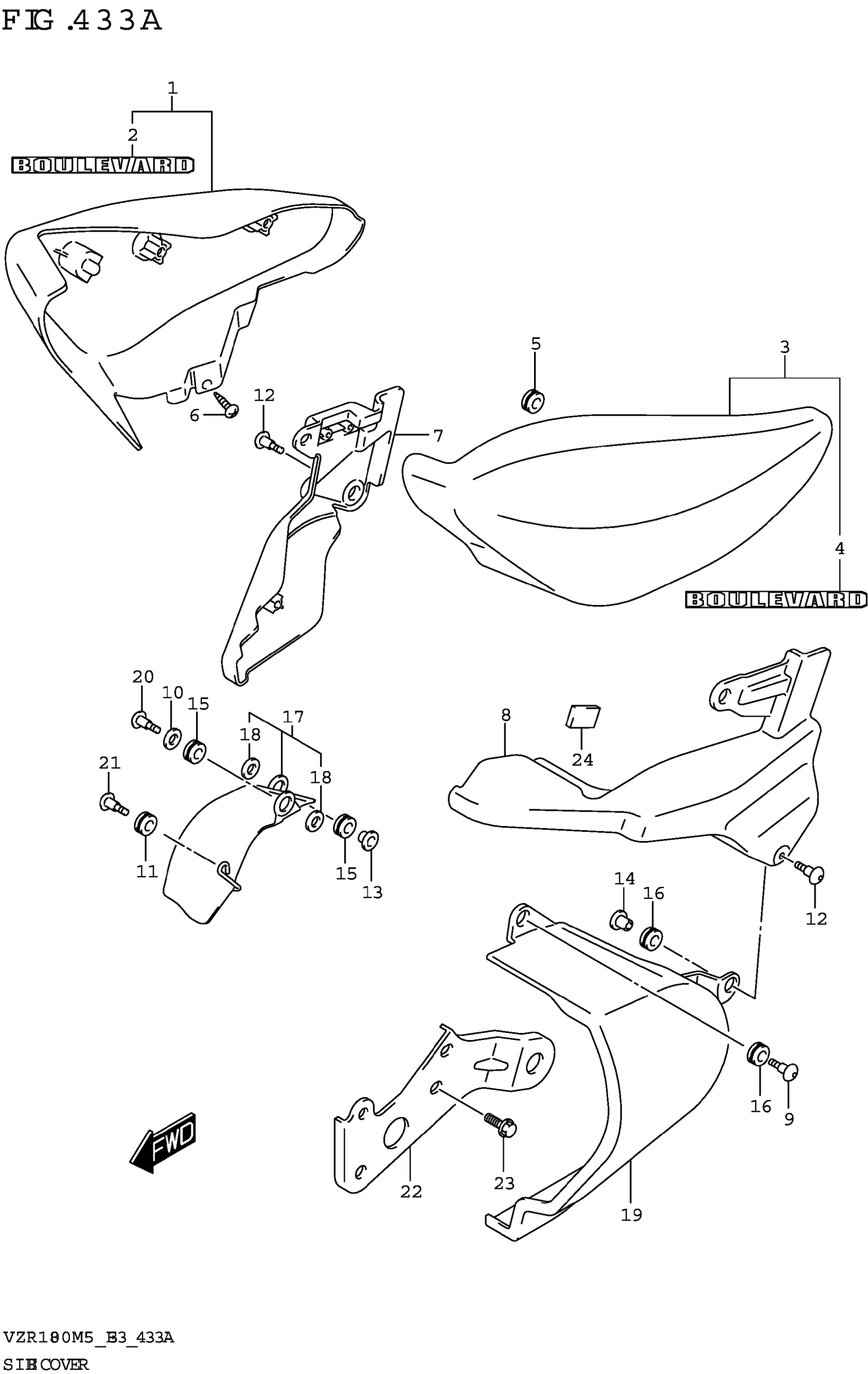

Suzuki VZR1800M4 (2025) SIDE COVER Diagram

#

Description
Price

1

COVER,SIDE RH (BLACK)

47110-48GE0-YVB

$178.15

2

.EMBLEM,"BOULEVARD" (GRAY)

68131-48G20-YLF

$14.40

3

COVER,SIDE LH (BLACK)

47210-48GE0-YVB

$178.15

4

.EMBLEM,"BOULEVARD" (GRAY)

68131-48G20-YLF

$14.40

5

CUSHION (8x26x7)

09320-08018

$2.80

6

SCREW

03541-0516A

$1.37

7

COVER,SIDE LOWER RH

47121-48G00

$43.83

8

COVER,SIDE LOWER LH

47221-48G00

$43.02

9

SCREW (6X20)

09139-06126

$3.65

10

WASHER (10.5X20X2.3)

09160-10123

$2.13

11

CUSHION (9X18X10)

09320-09501

$2.06

12

SCREW (6X25)

09139-06029

$4.84

13

SPACER (6.5X10X11.6)

09180-06319

$4.92

14

WASHER

09169-06075

$4.00

15

CUSHION (8.5X20X8)

09320-08510

$1.70

16

CUSHION

09320-08070

$12.93

17

COVER,LOWER RH

47130-48G00

$357.20

18

.WASHER,FRAME COVER

47523-41F00

Unavailable

19

COVER,LOWER LH

47231-48GB0

$631.67

20

SCREW (6X20)

09139-06126

$3.65

21

SCREW (6X20)

09139-06126

$3.65

22

BRACKET,LOWER COVER LH

47250-48G00

Unavailable

23

BOLT

01550-0612A

$1.97

24

CUSHION,FUEL LID (10X20X3)

47376-20E00

$2.03
