2013 Suzuki VZR1800L3 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2013 Suzuki VZR1800L3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

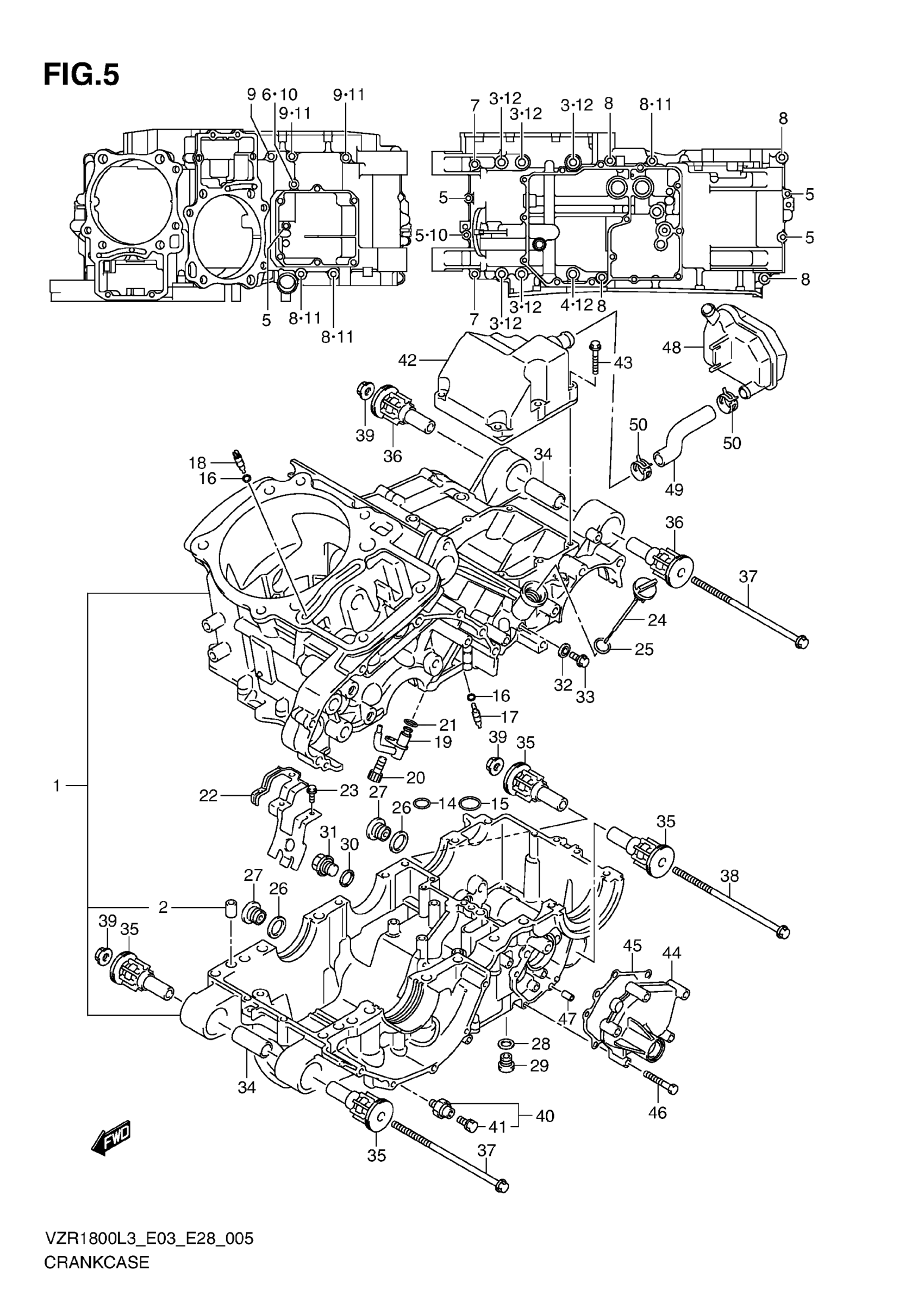

2013 Suzuki VZR1800L3 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE SET

11300-48881

1

$3,149.37

In stock

2

PIN,CRANKCASE

11319-33E50

3

$5.45

In stock

3

BOLT (10X100)

09103-10110

5

$9.15

In stock

4

BOLT (10X115)

09103-10406

1
Out of stock

5

BOLT

01547-0645A

5
Out of stock

6

BOLT

01547-0670A

1
Out of stock

7

BOLT

07130-0850A

2

$4.53

In stock

8

BOLT

07130-0865A

—
Out of stock

9

BOLT

07130-0885A

—
Out of stock

10

GASKET (5.8X13X1.2)

09168-06023

2
Out of stock

11

GASKET (8.2X14X1)

09168-08016

5
Out of stock

12

.GASKET (10.2X20X2.3)

09168-10031

6

$2.18

In stock

13

1

$14.98

In stock

13

WASHER, CRANK THRUST (BLACK)

12228-48G00-0B0

1
Out of stock

13

WASHER, CRANK THRUST (BLUE)

12228-48G00-0C0

1

$14.98

In stock

13

WASHER, CRANK THRUST (GREEN)

12228-48G00-0D0

1
Out of stock

13

1

$14.98

In stock

13

WASHER, CRANK THRUST (WHITE)

12228-48G00-0F0

1
Out of stock

14

O RING (D:1.9,ID:7.8)

09280-08012

5

$3.56

In stock

15

O RING (D:1.9,ID:12.6)

09280-12009

2
Out of stock

16

O RING (D:1.2,ID:4)

09280-04004

4

$2.03

In stock

17

JET, OIL GALLERY MISSION

09493-80005

2
Out of stock

18

JET, OIL GALLERY CYLINDER

09493-80005

2
Out of stock

19

JET, PISTON COOLING

11390-48G00

2

$74.48

In stock

20

BOLT (6X12)

09106-06075

2
Out of stock

21

O RING (D:1.2,ID:4.7)

09280-05007

2
Out of stock

22

PLATE, OIL SEPARATOR

11521-48G00

1
Out of stock

23

BOLT

01547-0612A

4
Out of stock

24

GAUGE, OIL LEVEL

11971-48G01

1

$14.45

In stock

25

O RING (D:3.1,ID:16.8)

09280-17003

1
Out of stock

26

GASKET (16X22X2)

09168-16002

2
Out of stock

27

PLUG

09248-16012

2
Out of stock

28

GASKET (13.8X18.8X4.8)

09168-14002

1
Out of stock

29

PLUG, SHAFT This part replaces 09248-14012.

09248-14011

1
Out of stock

30

GASKET (12.1X16.2X3.7)

09168-12002

1
Out of stock

31

PLUG (12X10)

09247-12006

1

$2.92

In stock

32

GASKET (5.8X13X1.2)

09168-06023

3
Out of stock

33

BOLT

01547-0612A

3
Out of stock

34

SPACER

11611-48G00

2
Out of stock

35

BUSH

11652-10G00

4

$31.38

In stock

36

BUSH

11652-10G30

2

$25.25

In stock

37

BOLT (10X215)

09103-10041-A05

2

$10.07

In stock

38

BOLT (10X195)

09103-10118

1
Out of stock

39

NUT

08319-3110A

3
Out of stock

40

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33D10.

37820-33D11

1
Out of stock

41

BOLT

37822-33D00

1
Out of stock

42

COVER, BREATHER

11330-48G00

1
Out of stock

43

BOLT

01547-0630A

6

$2.48

In stock

44

COVER, GEAR SHIFT

11371-48G00

1
Out of stock

45

GASKET

11485-48G00

1

$7.67

In stock

46

BOLT

01547-0645A

5
Out of stock

47

PIN

04211-09149

2
Out of stock

48

TANK, OIL RETURN

11332-48G00

1

$82.62

In stock

49

HOSE, OIL RETURN TANK

11333-48G00

1
Out of stock

50

CLIP

09401-20405

2
Out of stock
