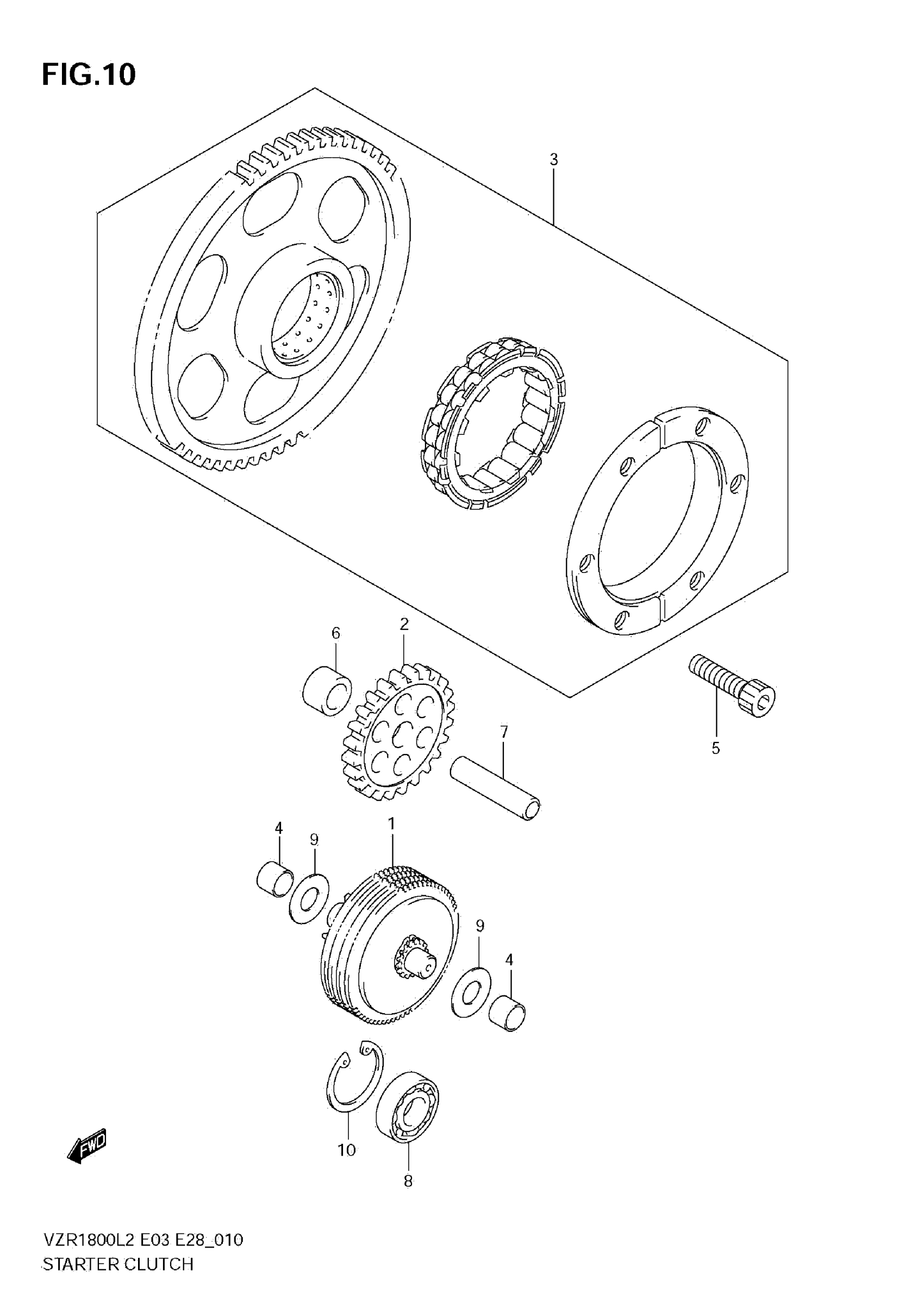

Suzuki VZR1800L2 (2012) STARTER CLUTCH Diagram

#

Description
Price

1

LIMITER ASSY, START IDLE

12600-48G01

Unavailable

2

GEAR, STARTER IDLE

12612-06G00

Unavailable

3

CLUTCH, STARTER ONE WAY

12600-48820

Unavailable

4

BUSH

12618-31G00

$3.69

5

.BOLT (8X16)

09106-08190

$2.88

6

SPACER This part replaces 09180-12138-A05.

09180-12138

$5.17

7

PIN (8X12X45.5)

09206-12006

$8.64

8

BEARING (12X28X8)

09262-12001

$16.90

9

WASHER

08211-10221

$1.97

10

CIRCLIP This part replaces 08331-4128A.

08331-41289

$2.92
