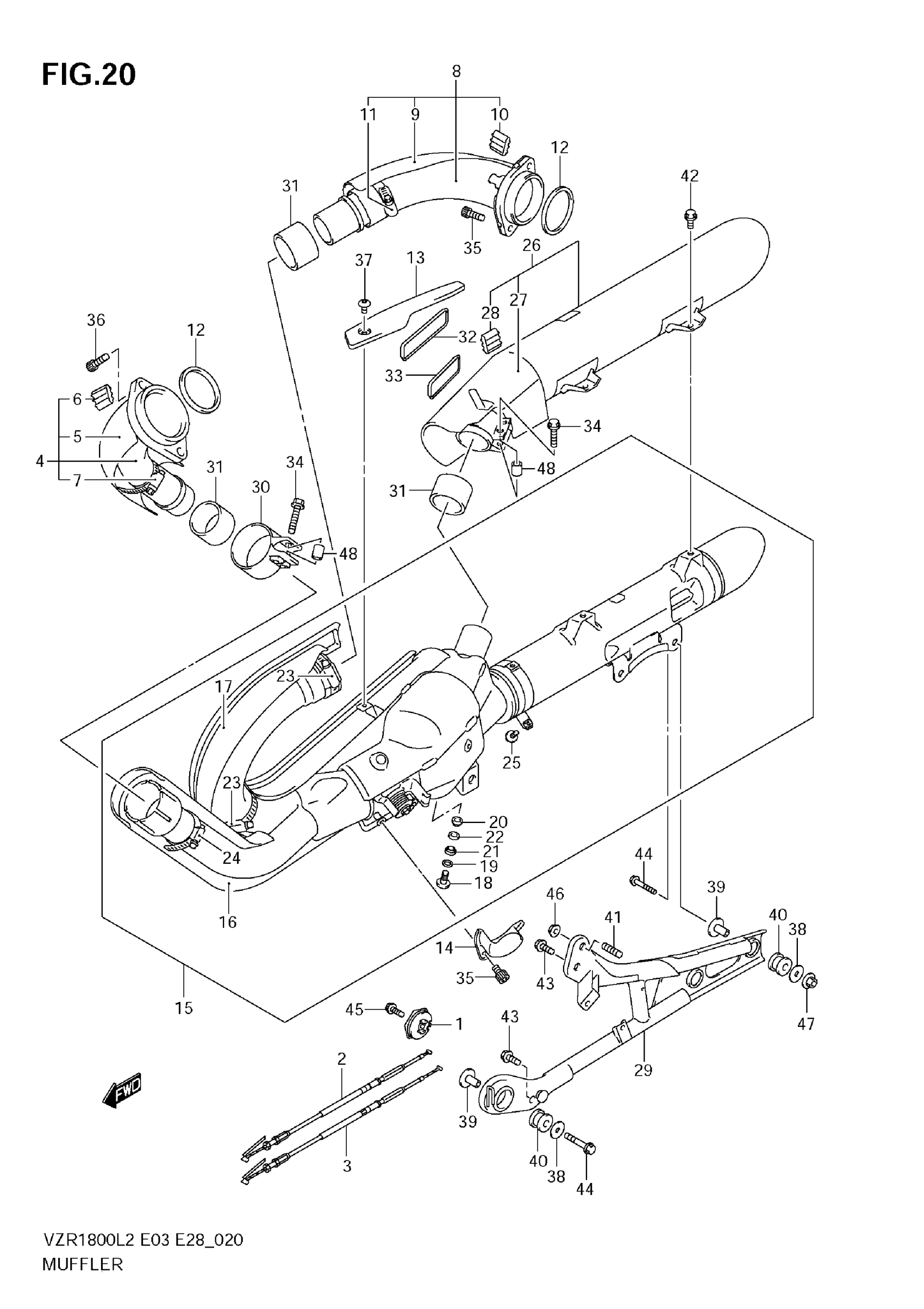

Suzuki VZR1800L2 (2012) MUFFLER Diagram

#

Description
Price

1

PULLEY, CONTROLLER

11269-18G01

$32.50

2

CABLE, EXHAUST VALVE NO.1

11276-48G00

$62.35

3

CABLE, EXHAUST VALVE NO.2

11277-48G00

$62.35

4

PIPE, EXHAUST FR

14150-48G30

$344.90

5

COVER, EXH FR PIPE

14168-48G20

$137.68

6

GROMMET

14795-10FA0

$5.26

7

CLAMP

09402-57511

$14.47

8

PIPE, EXHAUST RR

14160-48G20

$409.50

9

COVER, EXH RR PIPE

14169-48G20

$129.90

10

GROMMET

14795-10FA0

$5.26

11

CLAMP

09402-67501

$42.25

12

GASKET

14181-10F00

$11.82

13

COVER, REAR UPPER

14260-48G00

$175.28

14

COVER, EXHAUST VALVE

14280-48G00

$28.17

15

MUFFLER, FR

14305-48G50-H01

$3,168.93

16

COVER, EXH FR

14170-48G40

Unavailable

17

COVER, EXH RR

14180-48G50

$468.58

18

SCREW (6X20)

09139-06028

$3.33

19

WASHER (6.5X20X1)

09160-06141

Unavailable

20

SPACER (6.2X8.4X10.9)

09180-06331

$5.17

21

CUSHION

09320-08080

$10.27

22

CUSHION

09320-08081

$9.30

23

CLAMP

09402-67501

$42.25

24

CLAMP

09402-57511

$14.47

25

.BOLT

07120-0610A

$2.58

26

BODY, MUFFLER RR

14340-48G30-H01

Unavailable

27

COVER, UP MUFFLER FR

14344-48G20

$339.45

28

GROMMET

14795-10FA0

$5.26

29

BRACKET,MUF SPRT

14410-48G00

$273.43

30

CLAMP

14459-48G00

Unavailable

31

CONNECTOR

14771-42F31

$30.87

32

.PROTECTOR, FRONT This part replaces 14780-48G00.

14780-48G01

$42.30

33

PROTECTOR, LOWER This part replaces 14790-48G00.

14790-48G10

$35.48

34

BOLT (8X35)

09103-08365

$3.58

35

BOLT (6X12)

09106-06075

$2.50

36

BOLT (8X25)

09106-08165

$3.69

37

SCREW (6X10)

09139-06122

$2.80

38

WASHER (8.5X33X1.5)

09160-08146

$2.58

39

SPACER (8.6X12X27.1)

09180-08156

$6.14

40

CUSHION

09320-12049

$9.63

41

BOLT,STUD

01411-0820A

Unavailable

42

BOLT

14425-48G00

$2.45

43

BOLT

14425-48G00

$2.45

44

BOLT

01550-0845A

$2.88

45

BOLT

07120-0516A

$1.72

46

NUT

08319-3108A

$2.31

47

NUT

08361-2508A

$1.97

48

SPACER

14458-06H00

$7.95
