2012 Suzuki VZR1800L2 Front Caliper Diagram

← All diagrams

Find the part on the Front Caliper diagram for your 2012 Suzuki VZR1800L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

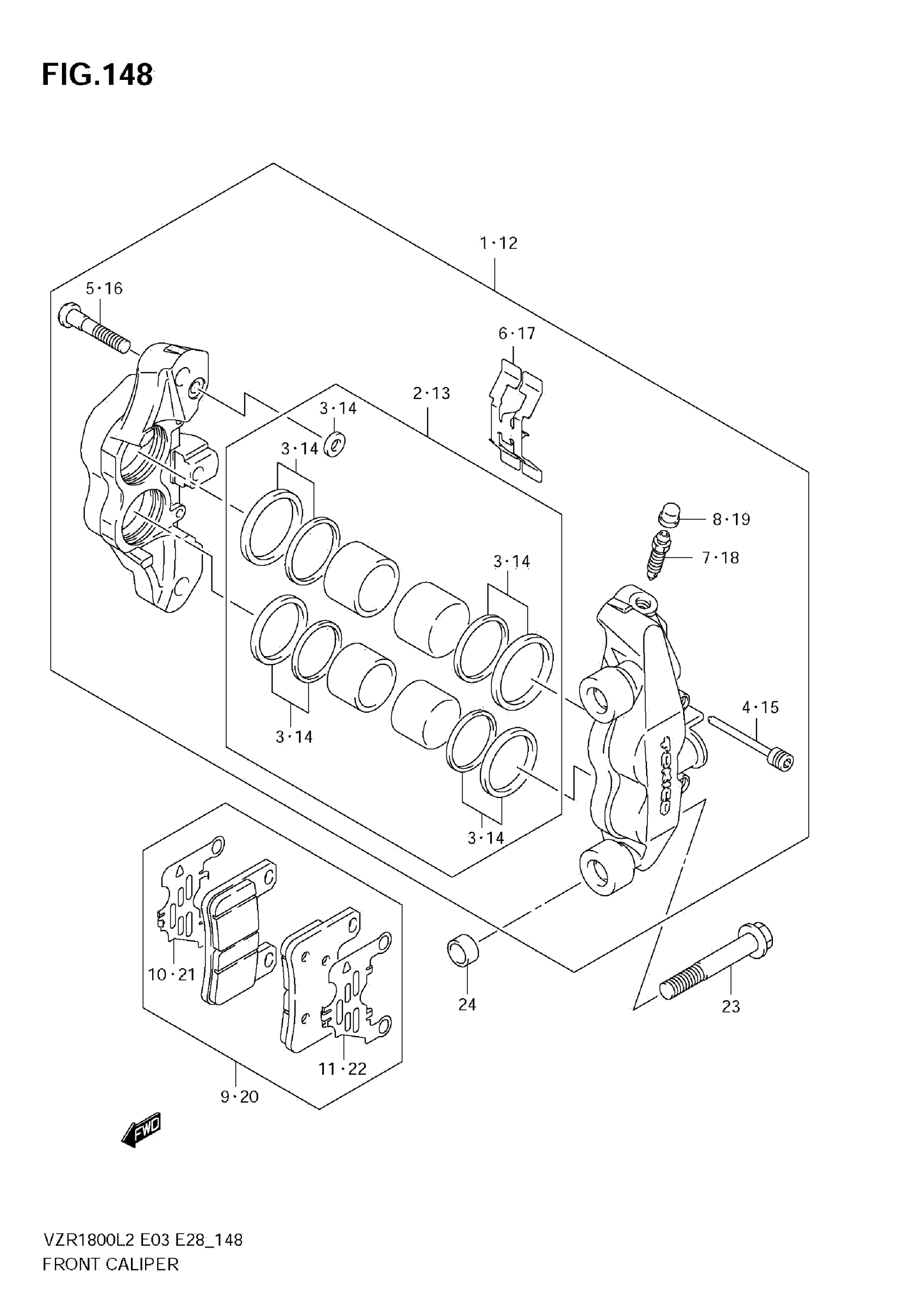

2012 Suzuki VZR1800L2 Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY, FRONT RH

59100-41G10-999

1
Out of stock

2

PISTON SET

59100-35870

1

$121.80

In stock

3

SEAL SET, PISTON This part replaces 59100-35820.

59100-29830

1
Out of stock

4

2

$26.91

In stock

5

BOLT

59145-18G00

3

$11.20

In stock

6

SPRING, PAD

59151-29G00

1

$12.80

In stock

7

BLEEDER

59121-18410

1
Out of stock

8

CAP, BLEEDER PLUG

55156-66310

1
Out of stock

9

PAD & SHIM SET

59100-29850

1

$45.36

In stock

10

SHIM, PAD A

59171-41G00

1

$17.40

In stock

11

SHIM, PAD B

59172-41G00

1

$17.40

In stock

12

CALIPER ASSY, FRONT LH

59300-41G10-999

1

$584.22

In stock

13

PISTON SET

59100-35870

1

$121.80

In stock

14

SEAL SET, PISTON This part replaces 59100-35820.

59100-29830

1
Out of stock

15

2

$26.91

In stock

16

BOLT

59145-18G00

3

$11.20

In stock

17

SPRING, PAD

59151-29G00

1

$12.80

In stock

18

BLEEDER

59121-18410

1
Out of stock

19

CAP, BLEEDER PLUG

55156-66310

1
Out of stock

20

PAD & SHIM SET

59100-29850

1

$45.36

In stock

21

SHIM, PAD A

59171-41G00

1

$17.40

In stock

22

SHIM, PAD B

59172-41G00

1

$17.40

In stock

23

BOLT (10X70)

09103-10392

4
Out of stock

24

PIN, CALIPER

59151-41G00

4

$11.94

In stock
