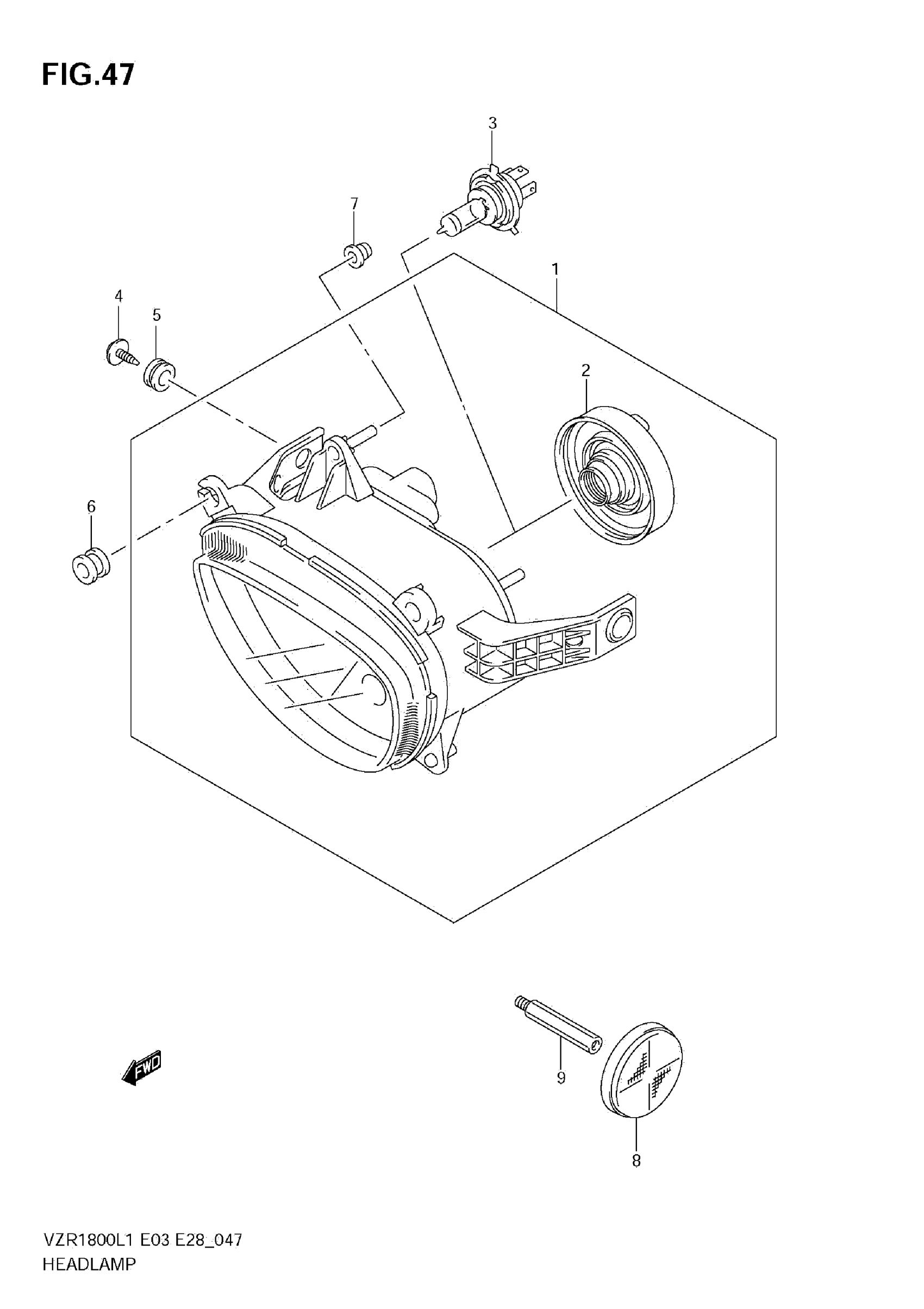

Find the part on the Headlamp diagram for your 2011 Suzuki VZR1800L1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki VZR1800L1 Headlamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEADLAMP ASSY

35100-48G31-999

1
Out of stock

2

COVER

35173-14G00

1
Out of stock

3

BULB (12V60/55W)

09471-12060

1
Out of stock

4

SCREW (5X15)

09136-05062

4
Out of stock

5

CUSHION

09320-09506

2
Out of stock

6

.CUSHION (9X18X14) This part replaces 09320-09039.

09320-09059

2
Out of stock

7

CUSHION

09320-09505

3
Out of stock

8

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

2
Out of stock

9

BOLT

09119-06104

2
Out of stock
