Description

Price

1

GASKET SET | OPT This part replaces 11401-48860.

11401-48861

$309.13

2

GASKET, HEAD COVER | NOT ILLUSTRATED

11173-48G00

$34.90

3

GASKET, CYLINDER HEAD FRONT | NOT ILLUSTRATED

11141-48G00

$61.37

4

GASKET, CYLINDER HEAD REAR | NOT ILLUSTRATED

11142-48G00

$61.08

5

.GASKET, CYLINDER FRONT | NOT ILLUSTRATED This part replaces 11241-48G00.

11241-48G10

$27.55

6

GASKET, CYLINDER REAR | NOT ILLUSTRATED

11242-48G00

$27.02

7

GASKET, CLUTCH COVER | NOT ILLUSTRATED

11482-48G00

$23.60

8

GASKET, MAGNETO COVER | NOT ILLUSTRATED

11483-48G00

$18.20

9

GASKET, GEAR SHIFT COVER | NOT ILLUSTRATED

11485-48G00

$7.67

10

GASKET, TENSIONER ADJUSTER | NOT ILLUSTRATED

12837-27G00

$4.51

11

GASKET, EXHAUST PIPE | NOT ILLUSTRATED

14181-10F00

$12.35

12

O RING, OIL LEVEL GAUGE | NOT ILLUSTRATED

09280-17003

$1.70

13

O RING, OIL STRAINER | NOT ILLUSTRATED

09280-22016

$5.18

14

O RING, OIL COOLER | NOT ILLUSTRATED

09280-64003

$5.24

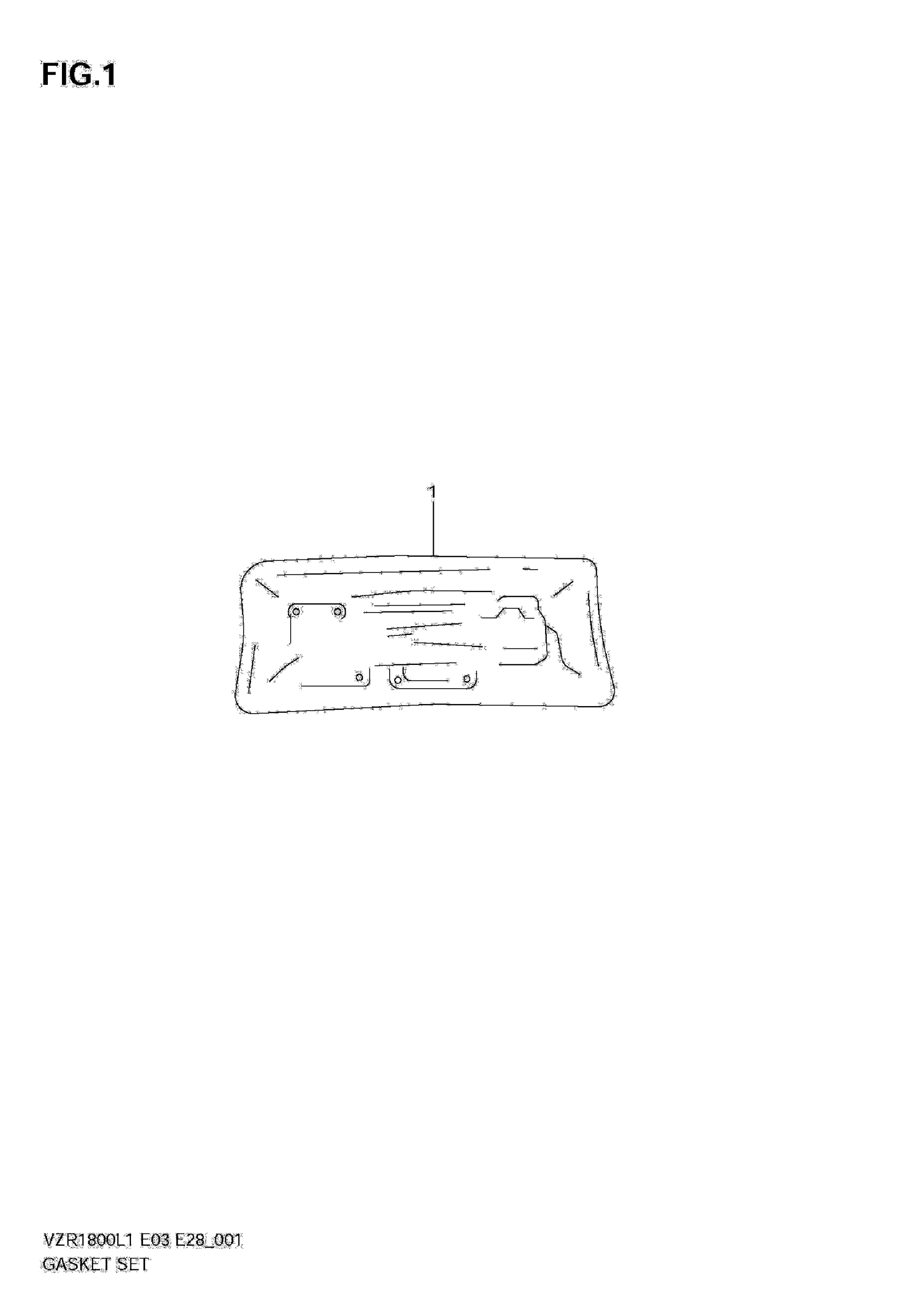

Suzuki VZR1800L1 (2011) GASKET SET Diagram
