2016 Suzuki VZR1800 Front Caliper Diagram

← All diagrams

Find the part on the Front Caliper diagram for your 2016 Suzuki VZR1800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

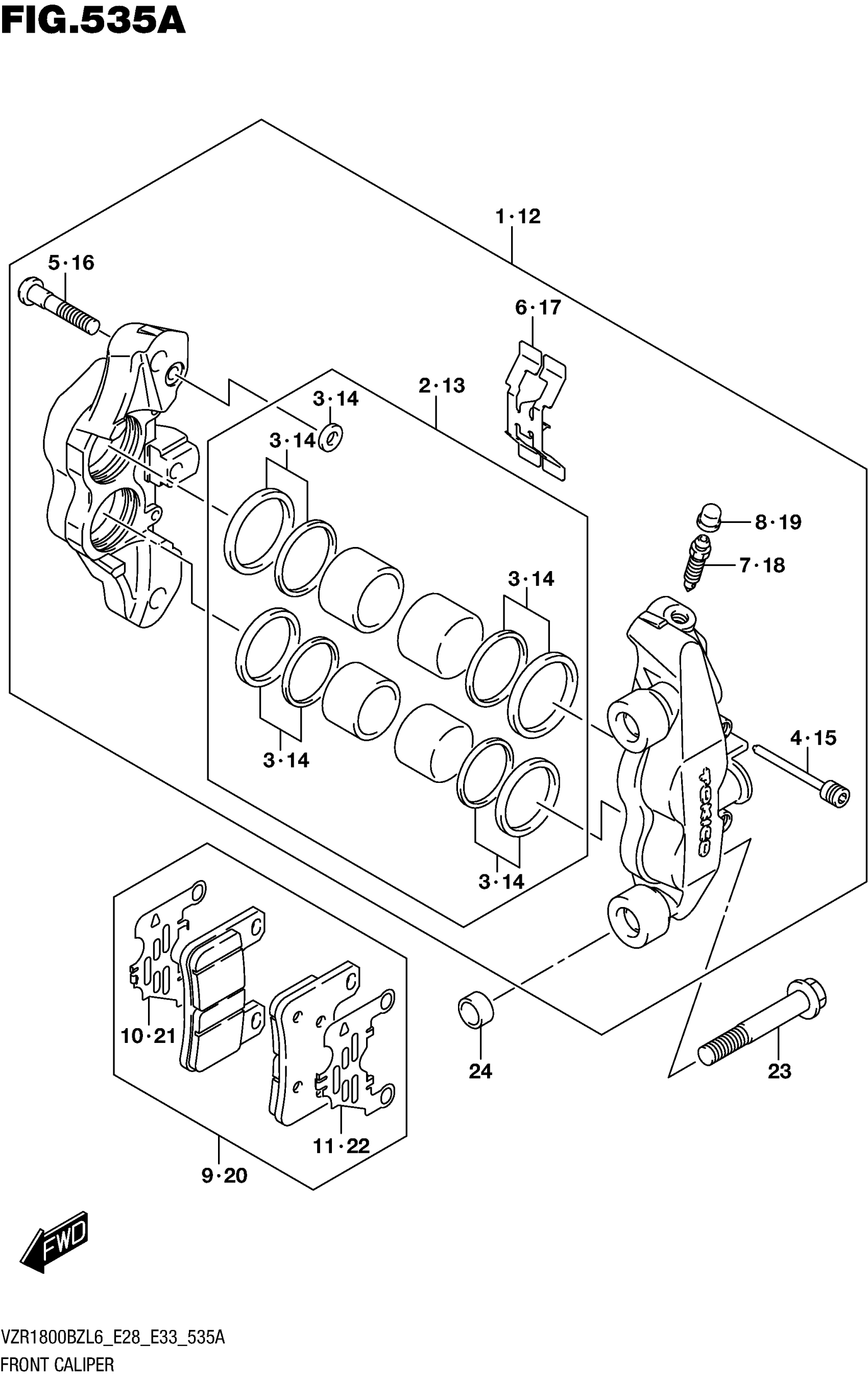

2016 Suzuki VZR1800 Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY, FRONT RH

59100-41G40-999

1

$685.47

In stock

2

.PISTON SET

59100-35870

1

$121.80

In stock

3

SEAL SET, PISTON This part replaces 59100-35820.

59100-29830

1
Out of stock

4

.PIN

59141-41G10

2

$26.91

In stock

5

.BOLT

59145-18G00

3

$11.20

In stock

6

.SPRING, PAD

59151-29G00

1

$12.80

In stock

7

.BLEEDER

59121-18410

1
Out of stock

8

.CAP, BLEEDER PLUG

55156-66310

1
Out of stock

9

PAD & SHIM SET

59100-29850

1

$45.36

In stock

10

.SHIM, PAD A

59171-41G00

1

$17.40

In stock

11

.SHIM, PAD B

59172-41G00

1

$17.40

In stock

12

CALIPER ASSY, FRONT LH

59300-41G40-999

1

$685.47

In stock

13

.PISTON SET

59100-35870

1

$121.80

In stock

14

SEAL SET, PISTON This part replaces 59100-35820.

59100-29830

1
Out of stock

15

.PIN

59141-41G10

2

$26.91

In stock

16

.BOLT

59145-18G00

3

$11.20

In stock

17

.SPRING, PAD

59151-29G00

1

$12.80

In stock

18

.BLEEDER

59121-18410

1
Out of stock

19

.CAP, BLEEDER PLUG

55156-66310

1
Out of stock

20

PAD & SHIM SET

59100-29850

1

$45.36

In stock

21

.SHIM, PAD A

59171-41G00

1

$17.40

In stock

22

.SHIM, PAD B

59172-41G00

1

$17.40

In stock

23

BOLT (10X70)

09103-10392

4
Out of stock

24

PIN, CALIPER

59151-41G00

4

$11.94

In stock
